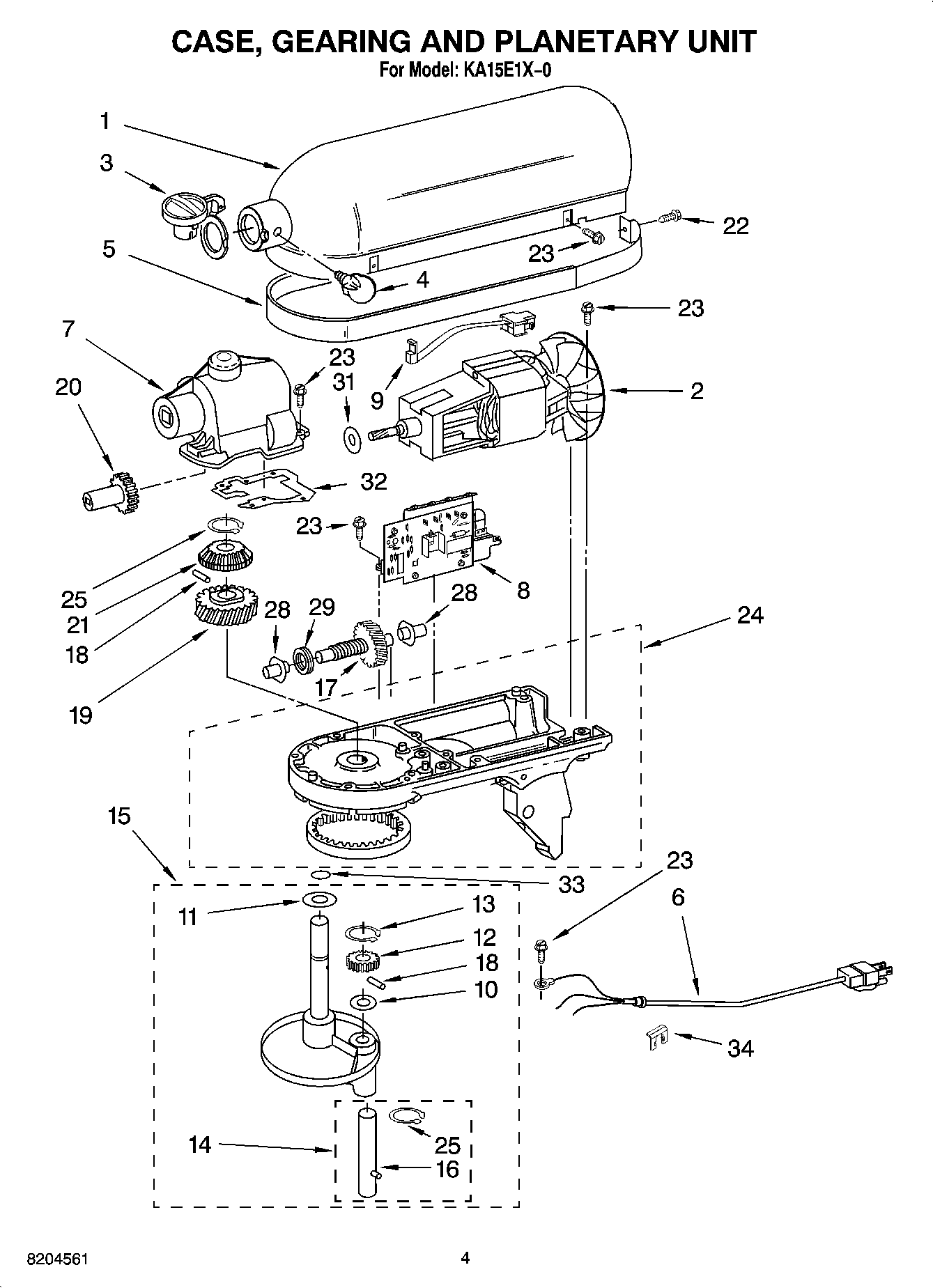

KA15E1X-0 03 – CASE, GEARING, AND PLANETARY UNIT

KA15E1X-0 03 – CASE, GEARING, AND PLANETARY UNIT

Written by

in

KA15E1X-0 03 – CASE, GEARING, AND PLANETARY UNIT

Products

PositionProduct
FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
JUICER (JE)
CAN OPENER (CO)
Food Tray (FT)
PASTA MAKER PLATES (SNPA)
SAUSAGE STUFFER KIT (SSA)
W11200218 Whirlpool Grease Filter
67500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
Grain Mill (GM-A)
PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
FOOD GRINDER (FG-A)
W10802058 Whirlpool Mixer Bowl
WPL 3180617
FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
Bowl,
Bowl Cover, Plastic Non-Sealing
Speed Disc (Service Tool)
W11312468 Whirlpool Pour Shelf
1Gearcase Motor Housing
2WPW10247536 Whirlpool Motor
3WP9703315 Whirlpool Hub Cap
4Thumb Screw (White (Storm Gray))
5Band, Trim
6Power Cord
78212396 Whirlpool Housing
9WP9706648 Whirlpool Speed Control
10WP9706090 Whirlpool Washer
11W11084660 Whirlpool Washer
12W11133646 Whirlpool Gear
13WP9703438 Whirlpool Snap Retaining Ring
14WP9708191 Whirlpool Agitator Shaft
15Planetary Assembly
16W11664709 Whirlpool Groove Pin
17WP9709231 Whirlpool Gear Assembly
18WP9707223 Whirlpool Dowel Pin
19GEAR
21W11192795 Whirlpool Gear
22W10853069 Whirlpool Screw
23WP3400814 Whirlpool Screw
24Lower Gear Case
25WP9703680 Whirlpool Retainer Ring
28WPW10170080 Whirlpool Bearing Assembly
28WPW10170081 Whirlpool Bearing
29WP9703445 Whirlpool Bearing Kit Thrust
31WP9706247 Whirlpool Seal
33O RING
34Clip, Cord Retainer
