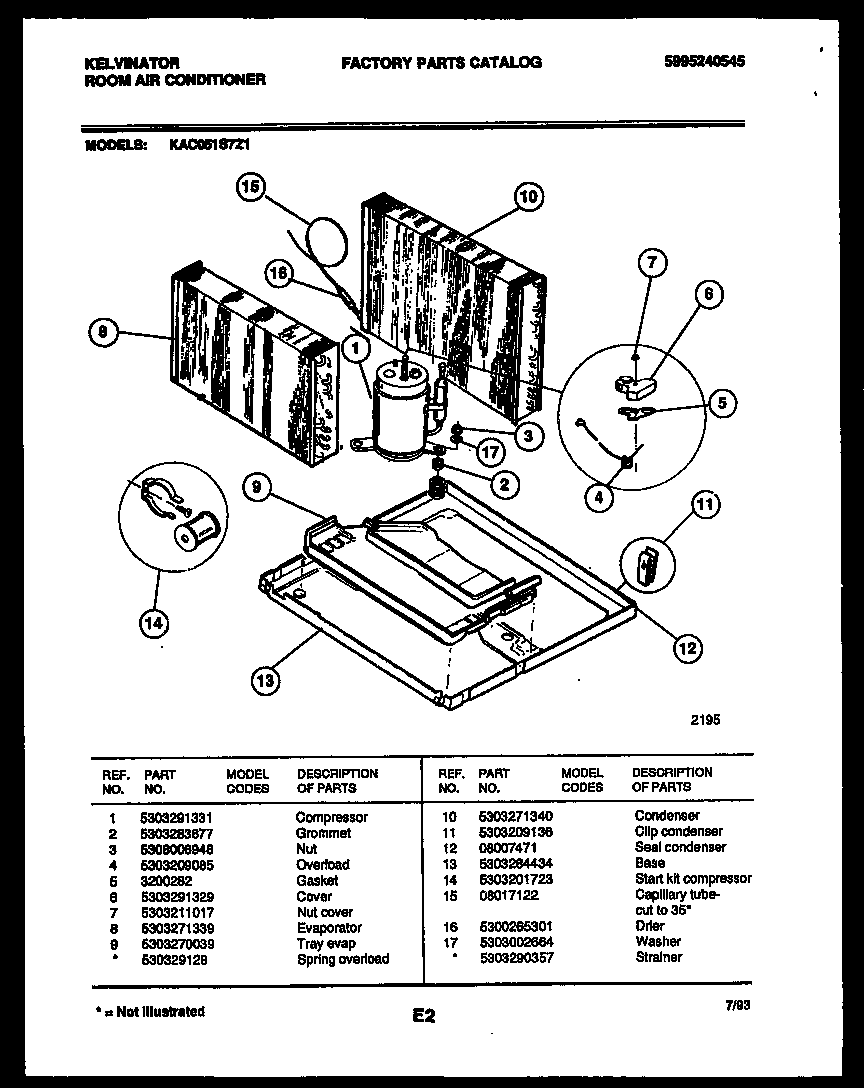

KAC051S7Z1 05 – SYSTEM PARTS

Products

PositionProduct
*31392WCI 5303290357
1WCI 5303291331
2GROMMET,COMPRESSOR MTG ,(3)
3NUT,COMPRESSOR MTG ,(3)
4WCI 5303209085
5GASKET-TERMINAL
6WCI 5303291329
7WCI 5303211017
8WCI 5303271339
9WCI 5303270039
9AWCI 530329128
10WCI 5303271340
11WCI 5303209136
12WCI 08007471
13WCI 5303284434
14STARTER KIT
15CAPILLARY TUBE (CUT TO 40“)
165300265301 Frigidaire Air Conditioner P1 Filter Drier
17WASHER,COMPRESSOR MTG
