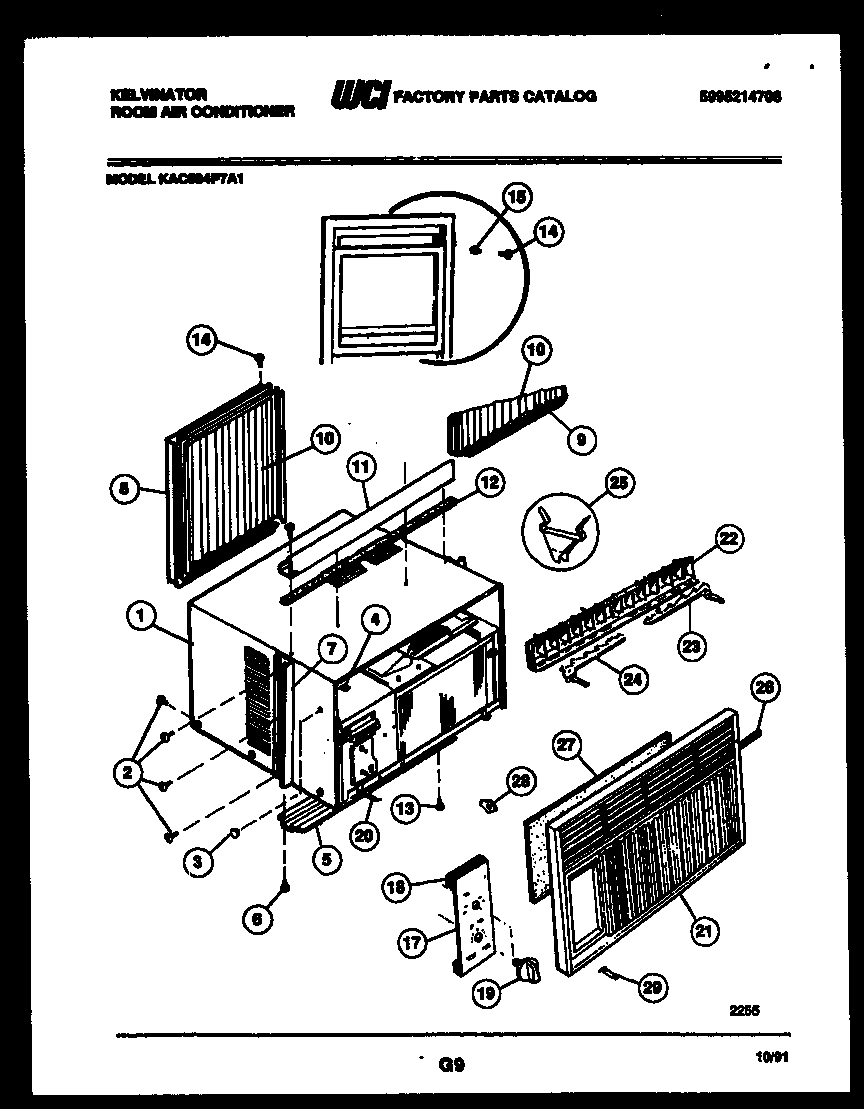

KAC084P7A1 02 – CABINET PARTS

Products

Position	Product
1	WCI 5303270060
2	134178901 Frigidaire Screw
3	SCREW
3A	NUT – FRONT LOCK
5	RAIL BOTTOM
6	SCREW
7	WCI 5303270073
8	WCI 5303270061
9	WCI 5303270062
10	WCI 5303270075
11	WCI 5303270064
12	WCI 08016226
13	WCI 08016080
14	WCI 5308002974
15	BRACKET
15A	5304407729 Frigidaire Air Conditioner Seal
17	PLATE-DIAL
18	SEAL-DIAL PLATE
19	WCI 5303017300
20	SERVICE CORD
21A	WCI 3018314
21	WCI 5303273259
22	VERTICAL LOUVER & LINK ASSY
23	LINK-VERTICAL LOUVER RH
24	LINK VERTICAL LOUVER LH
25	WCI 5303001844
26	WCI 3017137
27	FILTER-AIR
28	INSERT
29	SPRING CLIP-FRONT
