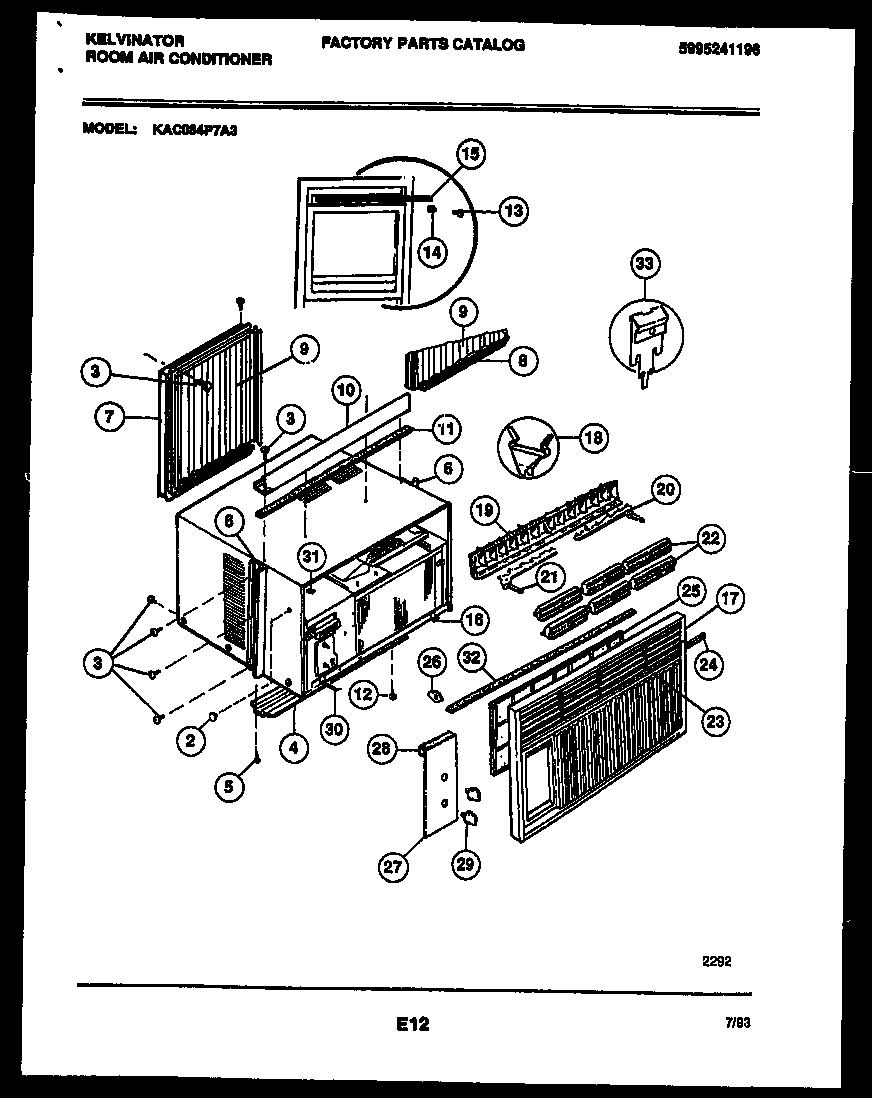

KAC084P7A3 02 – CABINET PARTS

Products

Position	Product
1	WCI 5303270060
2	SCREW
3	134178901 Frigidaire Screw
4	WCI 5303270072
5	SCREW
6	WCI 5303270073
7	WCI 5303282370
8	WCI 5303282371
9	WCI 5303270075
10	WCI 5303270064
11	WCI 08016226
12	WCI 08016080
13	WCI 5308002974
14	BRACKET
15	5304407729 Frigidaire Air Conditioner Seal
16	WCI 5303001784
17	WCI 3018314
18	WCI 5303001844
19	VERTICAL LOUVER & LINK ASSY
20	WCI 5303293758
21	WCI 5303293759
22	WCI 5303300112
23	WCI 5303300113
24	WCI 3017137
25	WCI 3016117
26	INSERT
27	PLATE-DIAL
28	SEAL-DIAL PLATE
29	WCI 5300331902
30	SERVICE CORD
31	NUT – FRONT LOCK
32	SEAL TOP FRAME
33	WCI 5303295272
