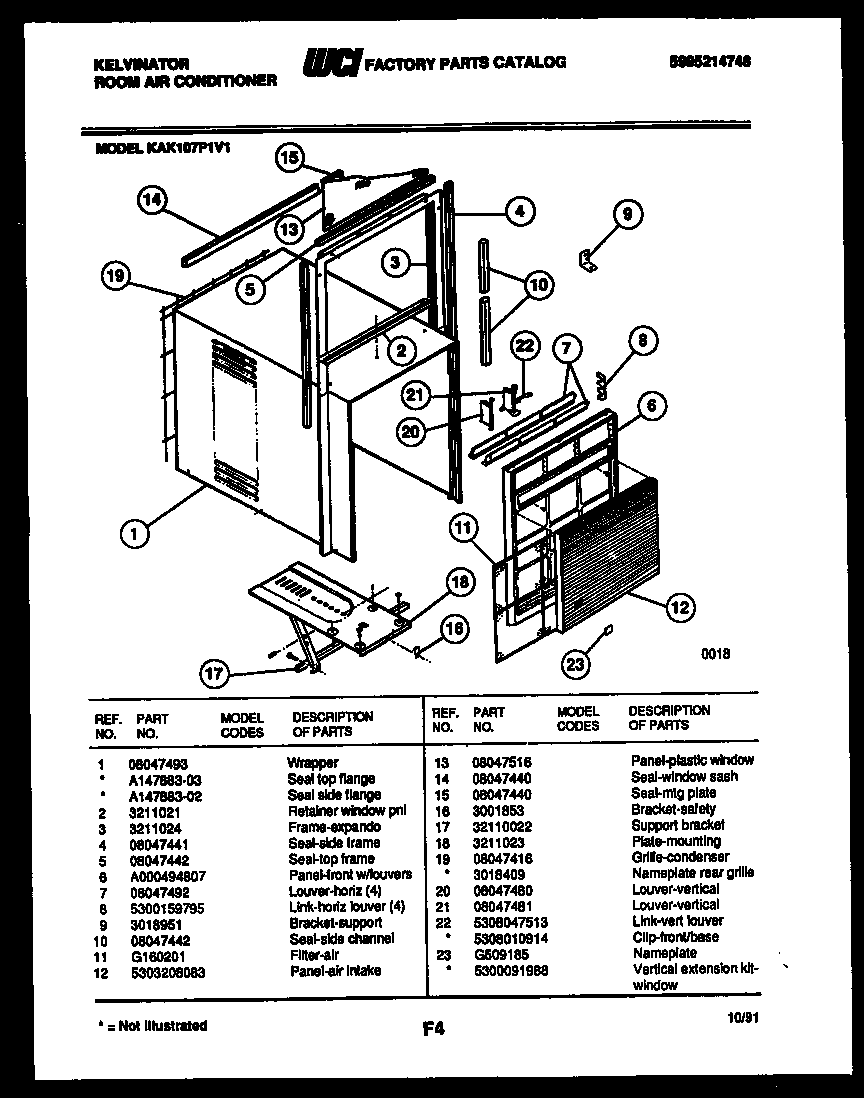

KAK107P1V1 02 – CABINET AND INSTALLATION PARTS

Products

Position	Product
*10631	WCI 5300091988
1A	WCI A147883-03
1	WCI 08047493
1B	WCI A147883-02
2	WCI 3211021
3	WCI 3211024
4	WCI 08047441
6	WCI A000494807
7	WCI 08047492
8	LINK-HOIRZ LOUVER
9	WCI 3018951
10	SEAL-SIDE CHANNEL
11	WCI G160201
12	WCI 5303208083
13	PANEL-PLASTIC WINDO
15	WCI 08047440
16	WCI 3001853
17	WCI 32110022
18	PLATE-UNIT MTG.
19A	NAMEPLATE REAR GRILLE (NON-ILLUSTRATED)
19	WCI 08047416
20	WCI 08047480
21	LOUVER-VERTICAL DIRECT (2)
22	WCI 5308047513
22A	CLIP-FRONT TO BASE
23	LABEL NAMEPLATE
