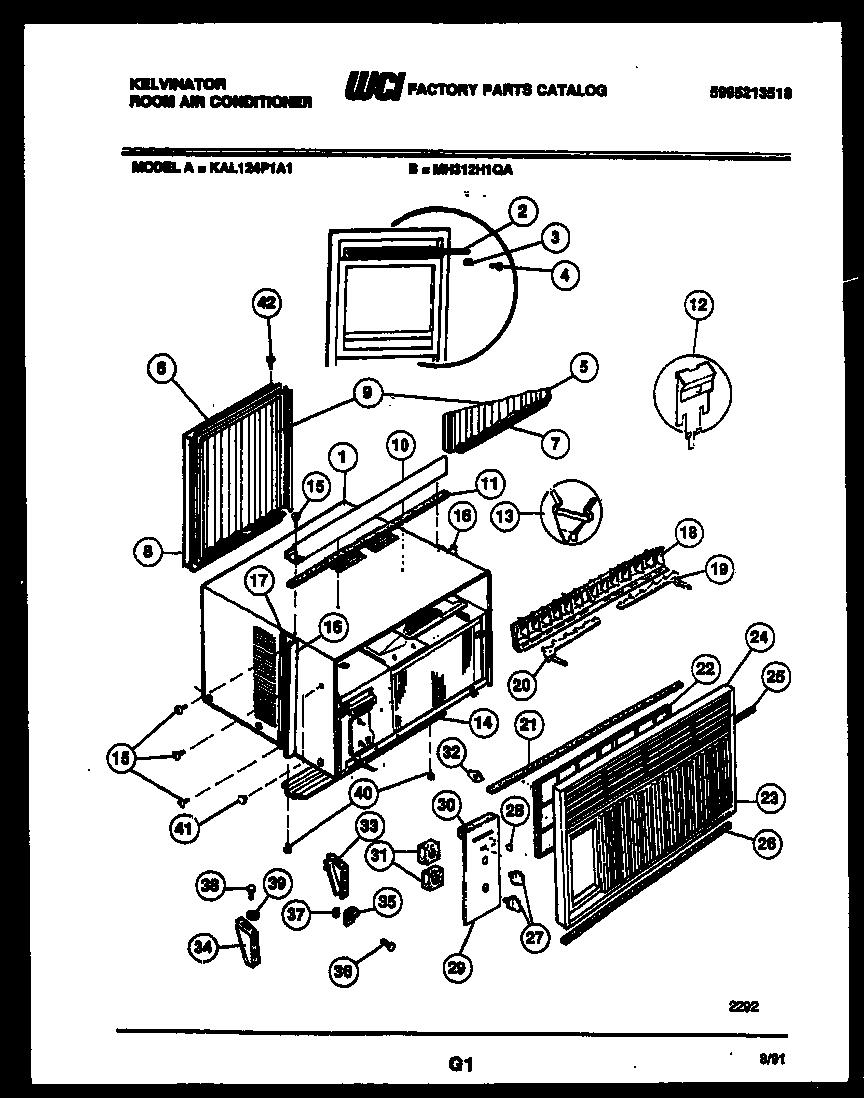

KAL124P1A1 02 – CABINET PARTS

Products

Position	Product
1	WCI 5303271901
1A	WCI 5303210207
1B	WCI 3202585
2	5304407729 Frigidaire Air Conditioner Seal
3	BRACKET
5	WCI 5303276706
6	WCI 5303276707
7	WCI 3203060
8	WCI 3202964
9	WCI 5303211382
10	SUPPORT-TOP
11	WCI 5303207200
12	CLIP – SPRING (NON-ILLUSTRATED)
13	WCI 5303001844
14	SEAL
15	134178901 Frigidaire Screw
16	RETAINER, ACCORDION
17	SEAL-RETAINER (NON-ILLUSTRATED)
18	VERT. LOUVER & LINK ASSY.
19	LINK – VERT LOUVER RH
20	LINK VERTICAL LOUVER LH
21	SEAL TOP FRAME
22	FILTER-AIR
23	WCI 3203264
24	WCI 5303207203
25	WCI 3018413
26	WCI 5303271583
27	WCI 5300331902
28	WCI 5303002189
29	WCI 5303018760
30	WCI 5303001984
31	WCI 5303001775
32	INSERT
33	WCI 3016224
34	WCI 3016225
35	BRACKET – SUPPORT
36	SCREW – SILL SUPT
37	NUT – BRACKET
38	WCI 3002735
39	316205500 Frigidaire Oven Nut
40	SCREW-WOOD
41	WCI 3017304
42	WCI 3002801
