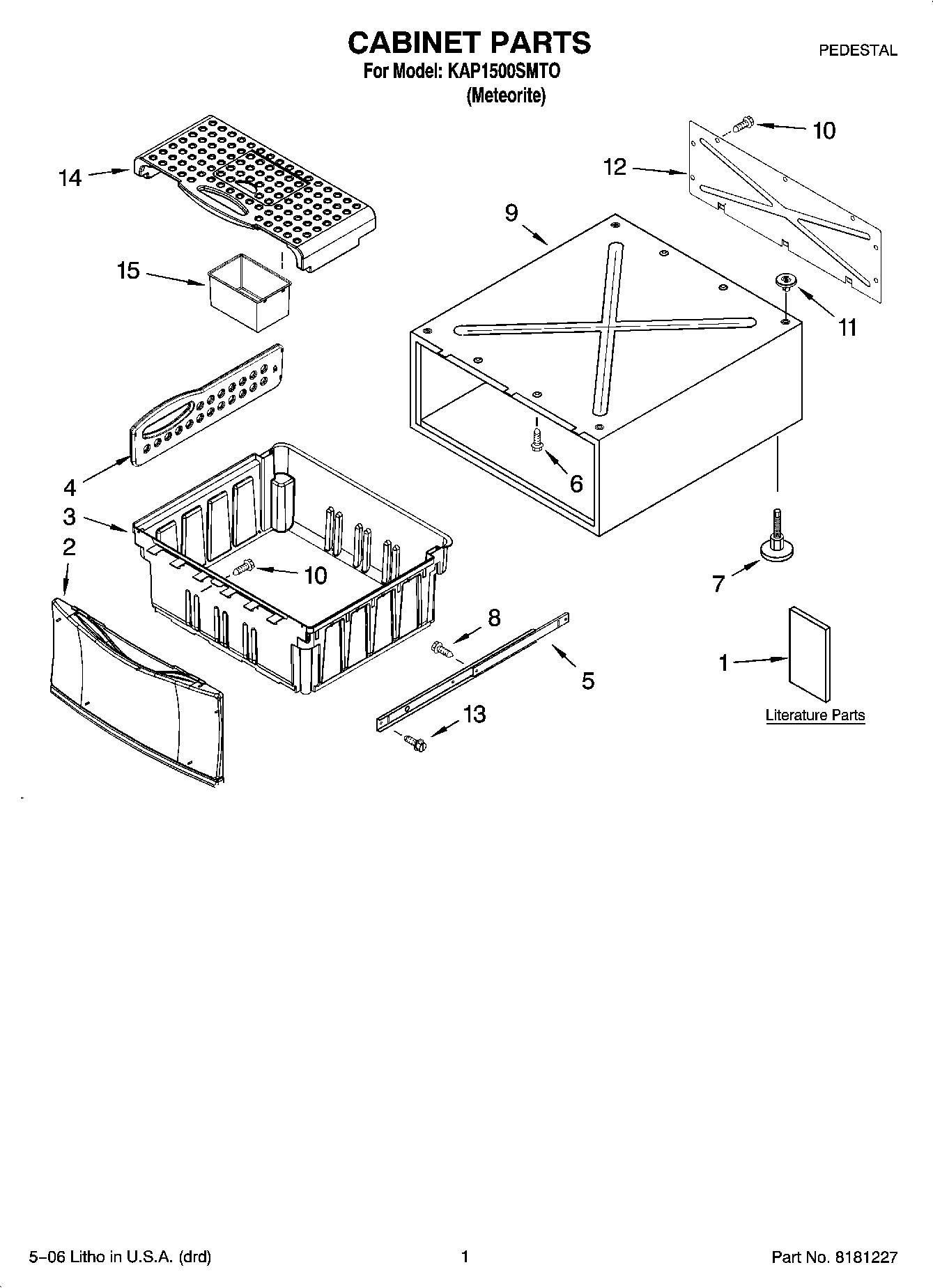

KAP1500SMTO 01 – CABINET PARTS

Products

PositionProduct
1Installation Instructions
2Drawer Front Assembly
3Drawer Bin
4Divider, Drawer
5Slide Assembly
6WPW10346892 Whirlpool Screw
7WP8563585 Whirlpool Foot Assembly
8WP3388228 Whirlpool Screw
9Cabinet (Not Serviced)
10WPW10213953 Whirlpool Screw
11WP8537982 Whirlpool Pad
12Panel, Rear
13WP9740849 Whirlpool Screw
14Shelf, U Assembly
15W10202939 Whirlpool Touch Up
15Box, U Shelf
