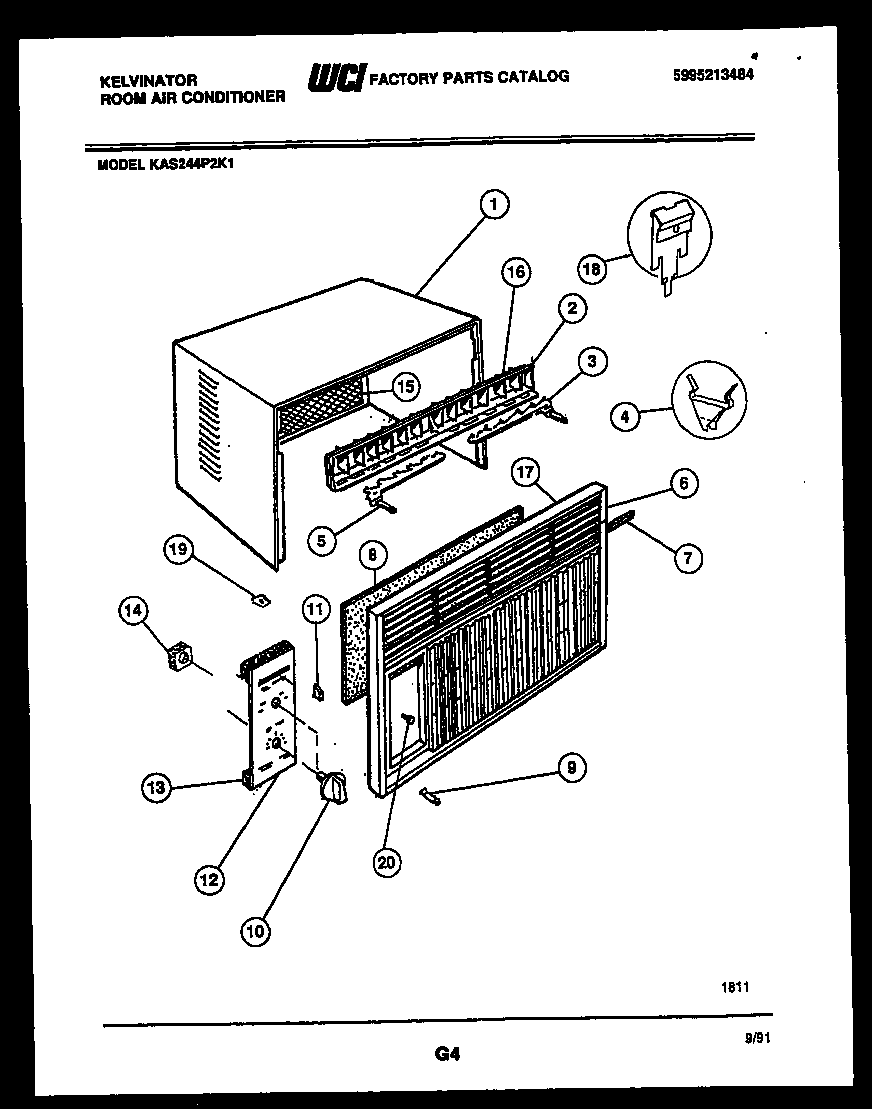

KAS244P2K1 02 – CABINET PARTS

KAS244P2K1 02 – CABINET PARTS

Written by

in

KAS244P2K1 02 – CABINET PARTS

Products

PositionProduct
1SHELL-CABINET
2WCI 5303002459
3LINK-VERT LOUVER RH
4WCI 5303001844
5LINK-VERT LOUVER LH
6WCI 5303271830
6AFRONT-COMPLETE
7WCI 3017299
8WCI 5303014139
9BRACE – FRONT (NON-ILLUSTRATED)
10WCI 5300331902
11WCI 5303002189
12WCI 5303211204
13WCI 5303001984
14WCI 5303001775
15WCI 5303016831
16WCI 3002435
17SEAL TOP & SIDE
18CLIP-SPRING (NON-ILLUSTRATED)
19INSERT
20WCI 3017304
