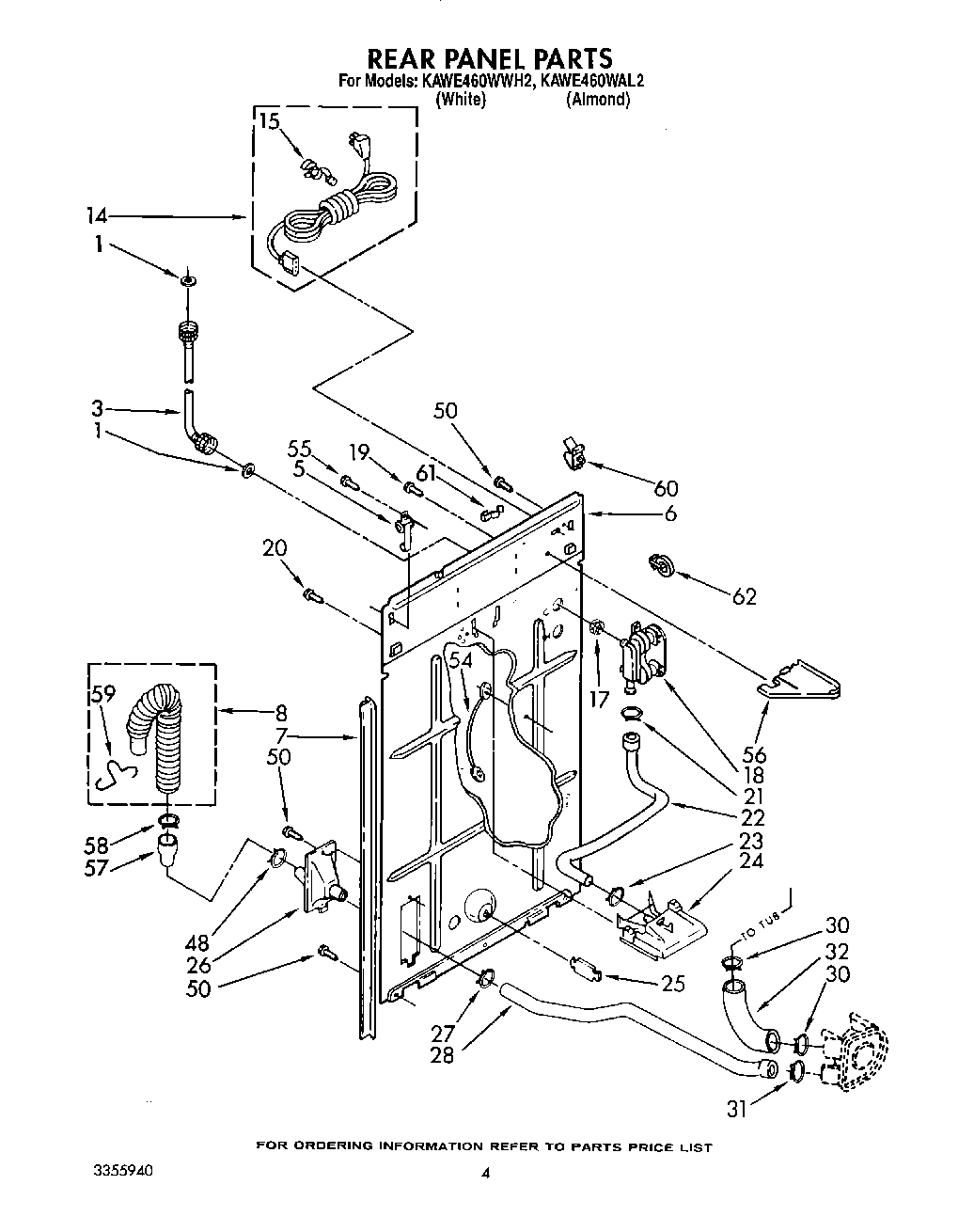

KAWE460WAL2 03 – REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
3	WP89503 Whirlpool Washer Fill Hose
5	Hinge, Console (2)
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	285664 Whirlpool Drain Hose
14	Cord, Power
15	Strain Relief, Power Cord
17	WP96160 Whirlpool Washer Inlet Valve Screen
18	285805 Whirlpool Washer Water Inlet Valve
19	WP3351614 Whirlpool Screw
20	SCREW
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
28	Hose, Pump To Drain Connector
30	WP371502 Whirlpool Clamp
32	285871 Whirlpool Hose and Clamp
48	WP356138 Whirlpool Hose Clamp
50	WP3390631 Whirlpool Screw
54	WPL 364089
55	WP308685 Whirlpool Microwave Screw
56	WPL 3348424
57	WP384496 Whirlpool Hose Coupling
58	WP616099 Whirlpool Clamp
59	WPL 3350222
60	Clip, Harness
61	8528351 Whirlpool Clip
62	8559320 Whirlpool Clip
