KAWE460WAL2 04 – CONTROL PANEL

KAWE460WAL2 04 – CONTROL PANEL

Written by

in

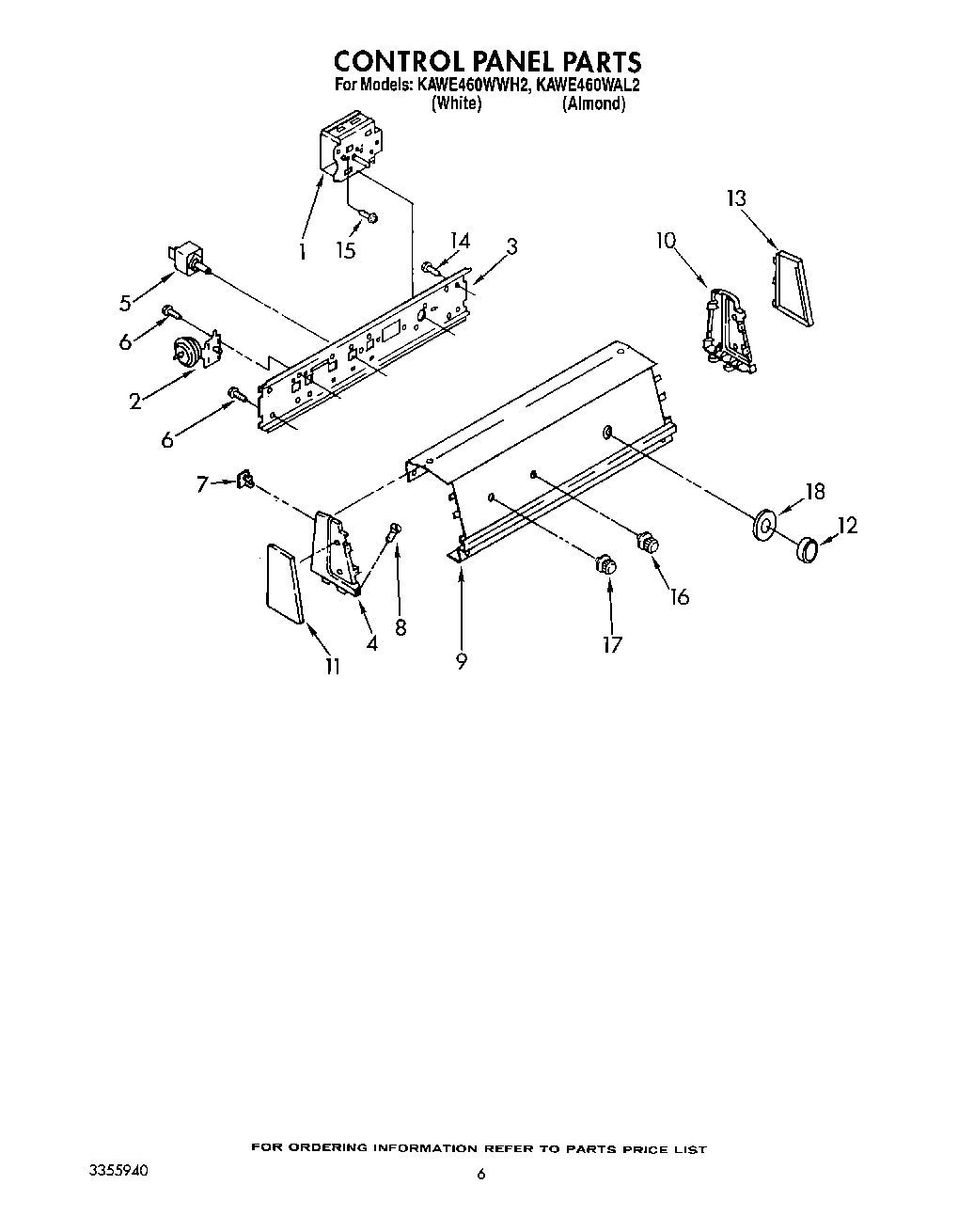

KAWE460WAL2 04 – CONTROL PANEL

Products

PositionProduct
1285952 Whirlpool Timer Assembly
2Switch, Water Level
3Bracket, Control
4Cap, End (L.H.)
5Switch, Water Temperature (Alt.)
5Switch, Water Temperature
5Switch, Water Temperature (Alt.)
6WP90767 Whirlpool Screw
7WP689559 Whirlpool Nut
8WPL 64211
9Console, Panel
10Cap, End (R.H.)
11Trim, Endcap (L.H.)
12Knob, Timer
13Trim, Endcap (R.H.)
14WP3351614 Whirlpool Screw
15WP356418 Whirlpool Screw
17Knob, Adjustable Buzzer
18Dial, Timer
