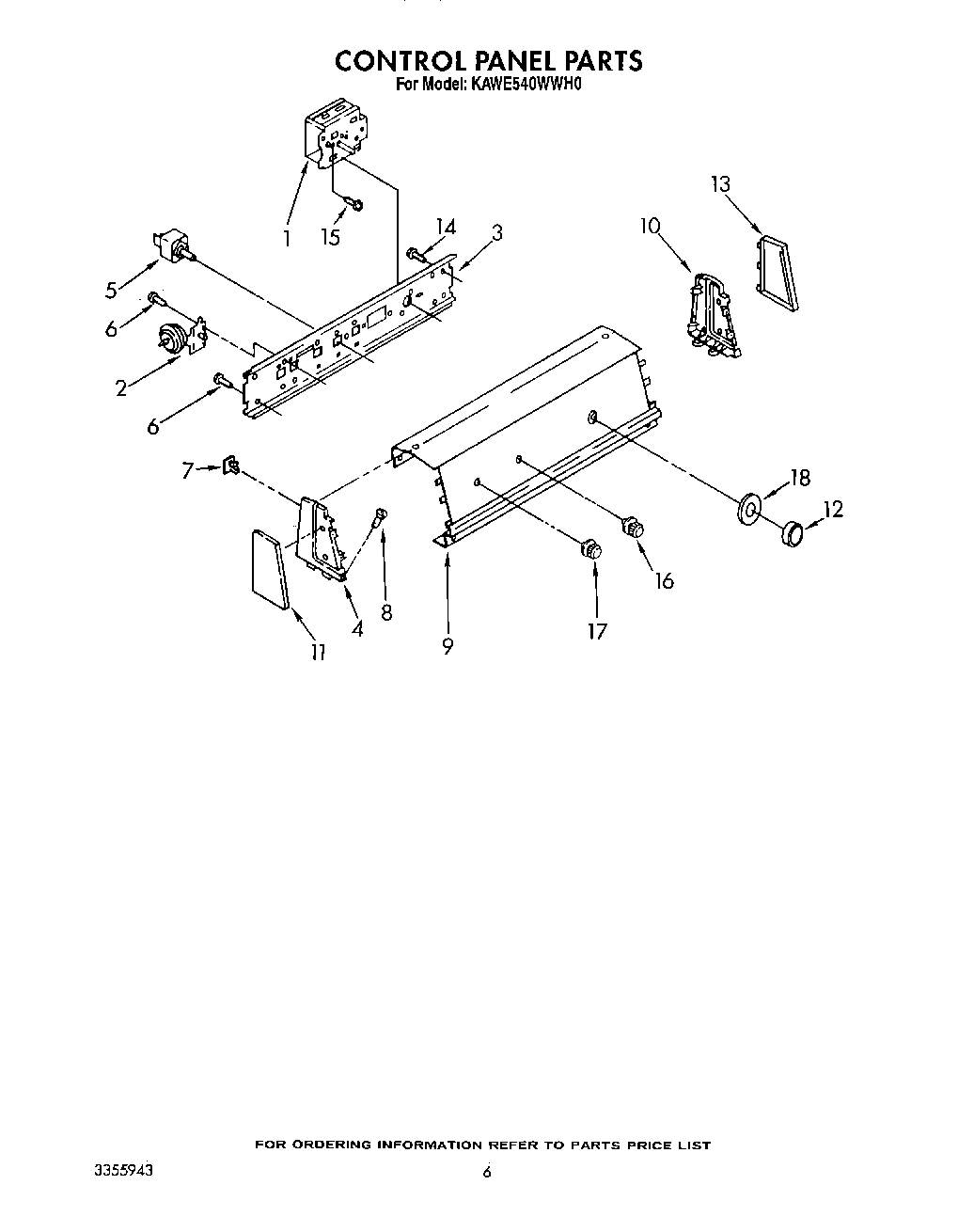

KAWE540WWH0 04 – CONTROL PANEL
Written by
in
KAWE540WWH0 04 – CONTROL PANEL
Products
Position
Product
1
Timer, Control 60Hz. (Motor Not Serviced)
2
Switch, Water Level
3
Bracket, Control
4
Cap, End (L.H.)
5
Switch, Water Temperature (Alt.)
5
Switch, Water Temperature (Alt.)
5
Switch, Water Temperature
6
WP90767 Whirlpool Screw
7
WP689559 Whirlpool Nut
8
WPL 64211
9
Console, Panel
10
Cap, End (R.H.)
11
Trim, Endcap (L.H.)
12
Knob, Timer
13
Trim, Endcap (R.H.)
14
WP3351614 Whirlpool Screw
15
WP356418 Whirlpool Screw
17
Knob, Adjustable Buzzer
18
Dial, Timer
←
