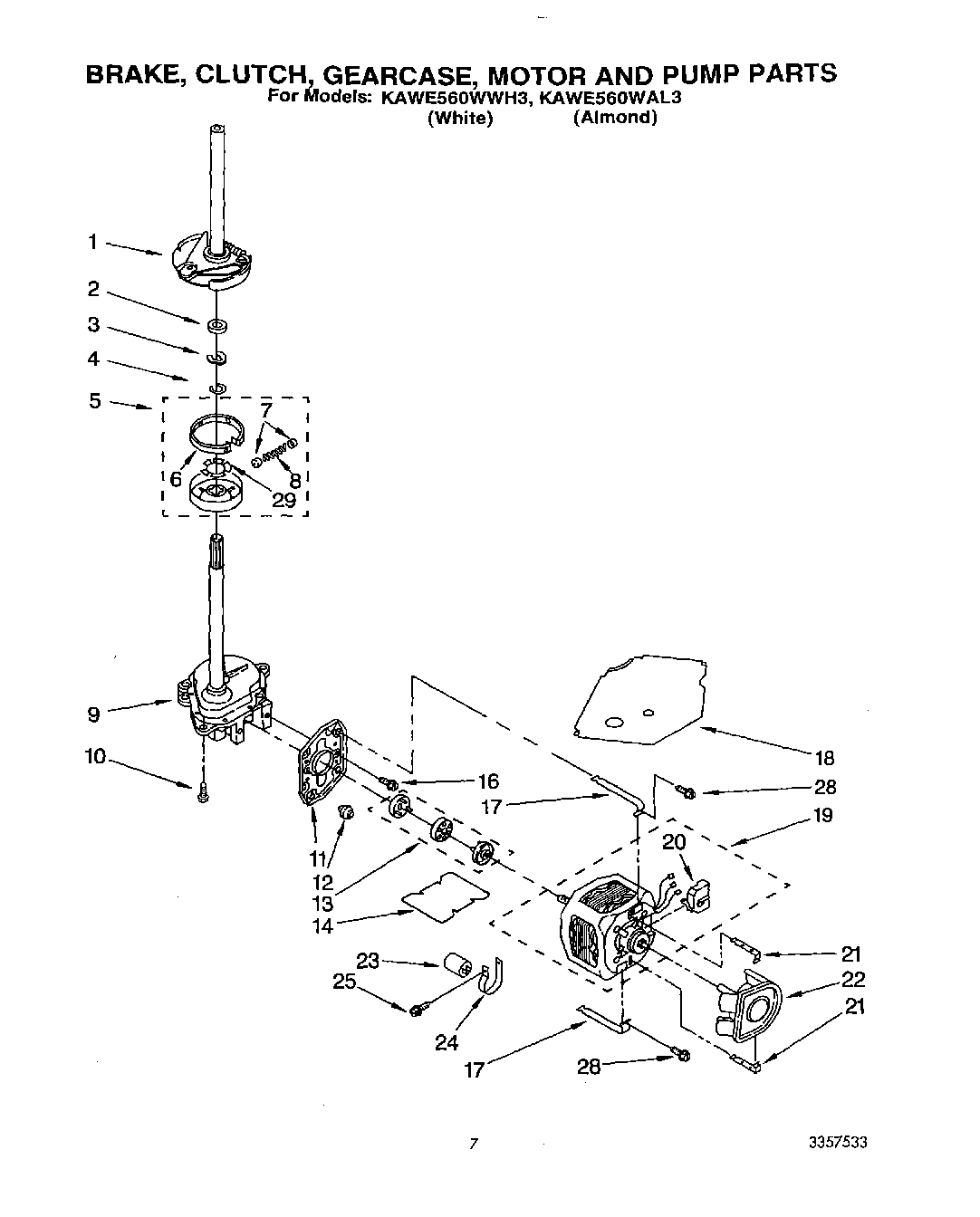

KAWE560WWH3 05 – BRAKE, CLUTCH, GEARCASE, MOTOR & PUMP

Products

Position	Product
1	W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2	WP63292 Whirlpool Washer
3	WPW10080230 Whirlpool Ring
4	285353 Whirlpool Ring
5	285785 Whirlpool Washer Direct Drive Clutch
7	WP62646 Whirlpool Cap
8	285790 Whirlpool Washer Clutch Band and Lining Kit
9	3360629 Whirlpool Washer Gearcase Transmission
10	Screw, Gearcase To Base (3) (5/16-24 x 3/4)
11	WP62611 Whirlpool Plate
12	WP62691 Whirlpool Grommet
13	285753A Whirlpool Washer Direct Drive Motor Coupling
14	WP3946532 Whirlpool Shield
16	WP3400516 Whirlpool Screw
17	WPW10086010 Whirlpool Motor Retainer Clip
18	W10838408 Whirlpool Motor Shield
19	Motor, Main Drive
20	Switch, Main Drive Motor
21	WP8546127 Whirlpool Retainer Clip
22	WP3363892 Whirlpool Water Pump
23	CAPACITOR
24	357030 Whirlpool Clamp
25	WP3390631 Whirlpool Screw
28	WP273556 Whirlpool Screw
29	Clip, Anti-Rattle
