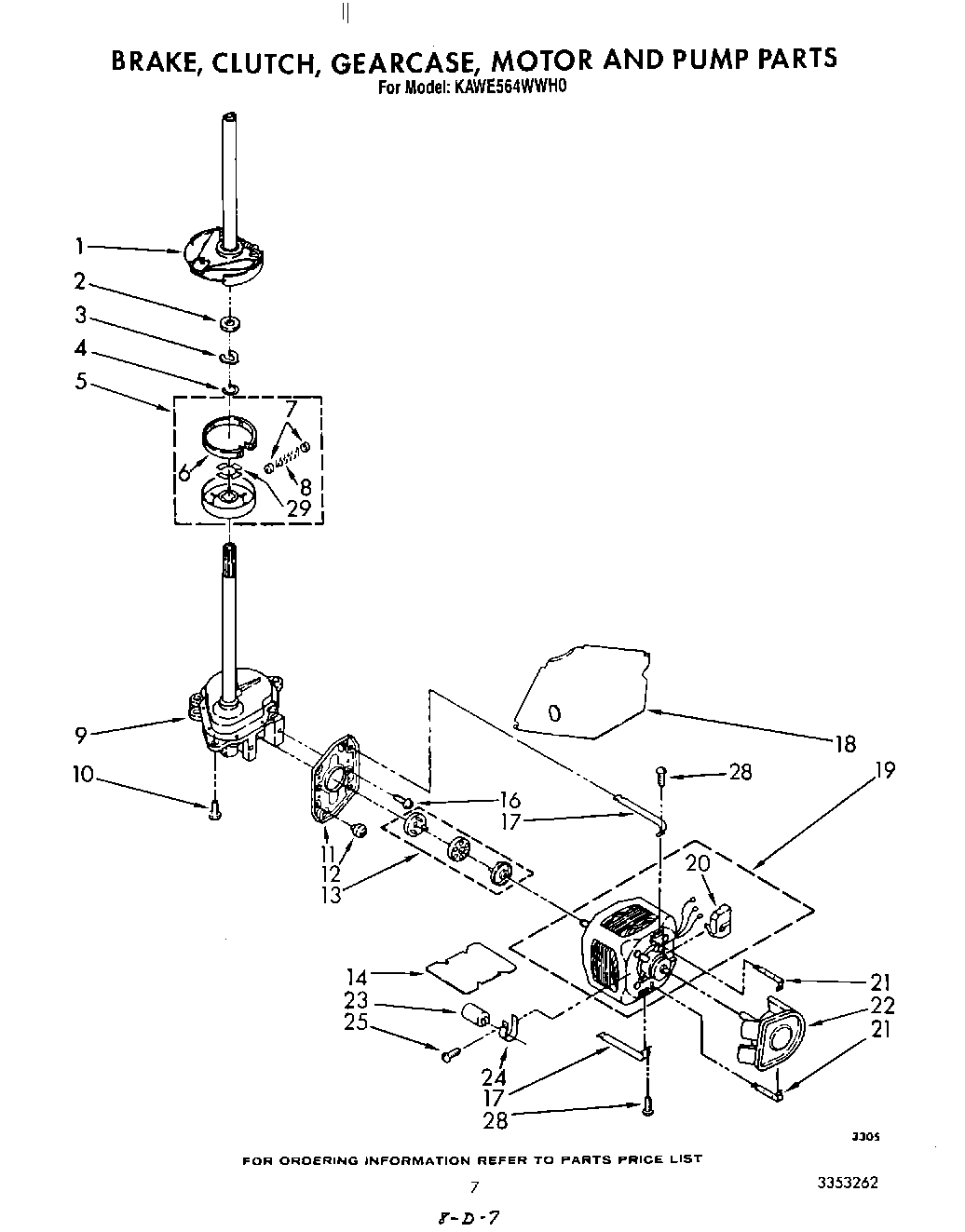

| 1 | W10820043 Whirlpool Washer Drive and Brake Basket Assembly |
| 2 | WP63292 Whirlpool Washer |
| 3 | WPW10080230 Whirlpool Ring |
| 4 | 285353 Whirlpool Ring |
| 5 | 285785 Whirlpool Washer Direct Drive Clutch |
| 7 | WP62646 Whirlpool Cap |
| 8 | 285790 Whirlpool Washer Clutch Band and Lining Kit |
| 9 | 3360629 Whirlpool Washer Gearcase Transmission |
| 10 | Screw, Gearcase To Base (3) (5/16-24 x 3/4) |
| 11 | WP62611 Whirlpool Plate |
| 12 | WP62691 Whirlpool Grommet |
| 13 | 285753A Whirlpool Washer Direct Drive Motor Coupling |
| 14 | WP3946532 Whirlpool Shield |
| 16 | WP3400516 Whirlpool Screw |
| 17 | WPW10086010 Whirlpool Motor Retainer Clip |
| 18 | W10838408 Whirlpool Motor Shield |
| 19 | Motor, Main Drive |
| 20 | Switch, Main Drive Motor |
| 21 | WP8546127 Whirlpool Retainer Clip |
| 22 | WP3363892 Whirlpool Water Pump |
| 23 | WP8572720 Whirlpool Capacitor |
| 24 | 357030 Whirlpool Clamp |
| 25 | WP3390631 Whirlpool Screw |
| 28 | W11573574 Whirlpool Screw |
| 29 | WP3355454 Whirlpool Clip Assembly |
