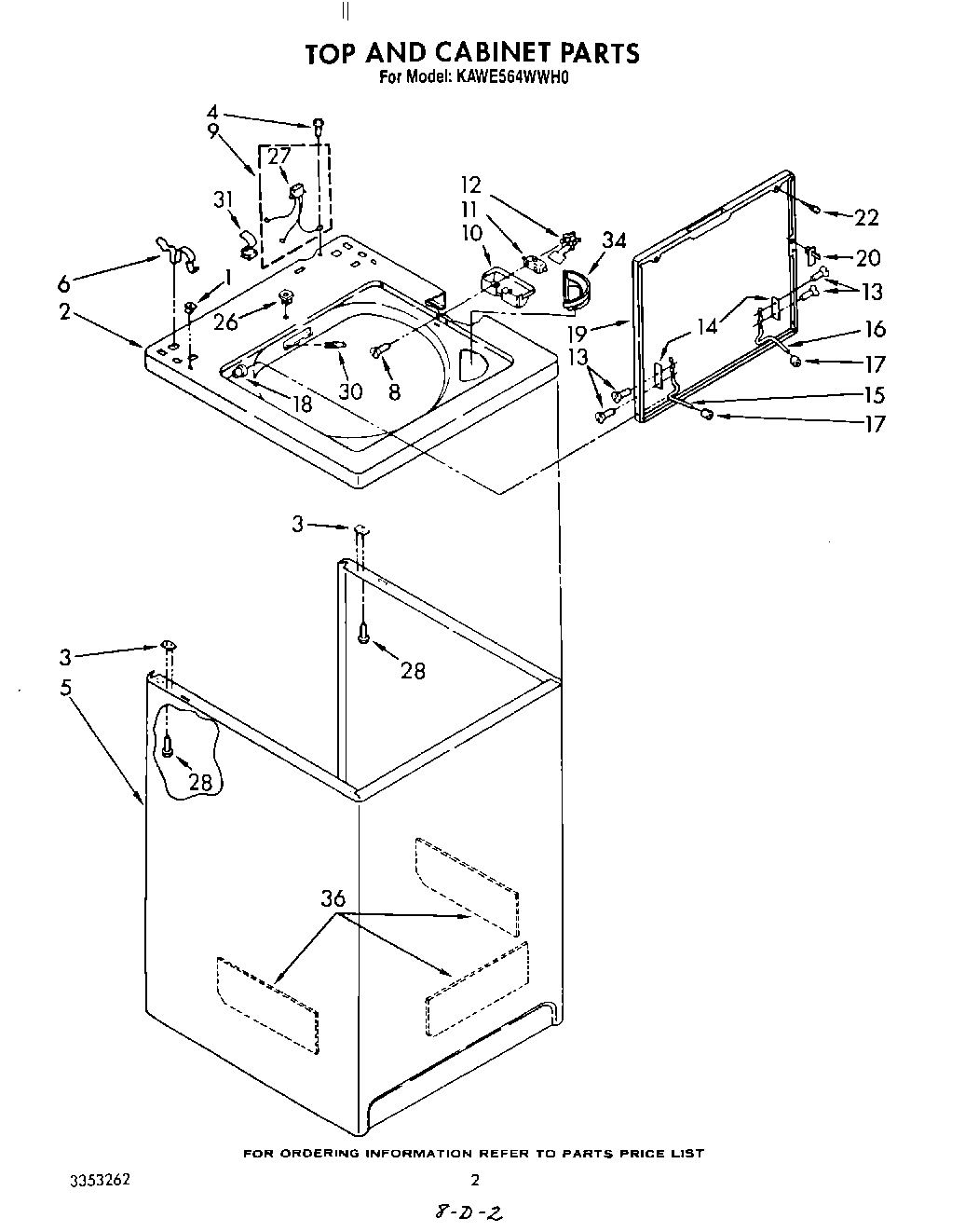

KAWE564WWH0 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT3353730
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	Shipping Kit
	WPL 72112
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WPL LIT3347356
	WP285195 Whirlpool Sealer Assembly
	WPL LIT3353741
	WPL LIT3352952
	WPL LIT3353262
	Golden Harvest (Uncut)
	Golden Harvest
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	350938 Whirlpool Spray Gun
	Leveler (Thinner)
	350930 Whirlpool White Spray Paint
	72113 Whirlpool Touch-Up Paint
	Almond (Uncut)
	350572 Whirlpool Oil Transmission 15 Oz
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
1	Nut, Push-In (2)
2	Top (White)
2	Top (Almond)
3	WP62750 Whirlpool Spacer
4	SCREW
5	Cabinet (Almond)
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
8	Screw & Washer, Lid Switch (2)
9	Harness, Lid Switch
10	WP359231 Whirlpool Shield
11	W10820036 Whirlpool Door Switch Kit
12	Actuator, Lid Switch
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (Almond)
19	Lid (White)
20	WP358684 Whirlpool Strike Assembly
22	WP9724509 Whirlpool Bumper
26	Stop, Push-In Top
27	Plug, Terminal (3-Way)
30	Rivet, Serial Nameplate
31	WP90016 Whirlpool Clip
34	WP3362952 Whirlpool Bezel
36	Cabinet-Sound Damper
