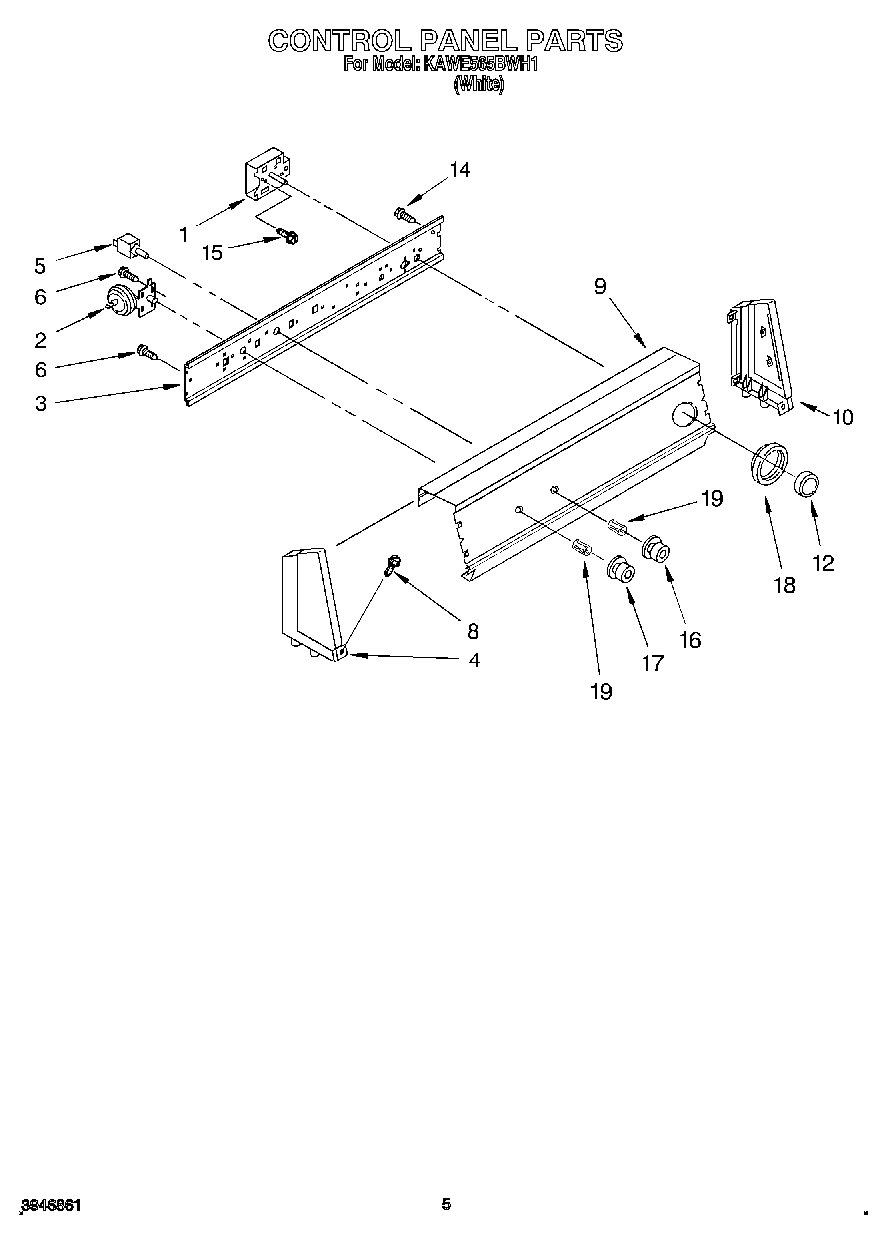

KAWE565BWH1 03 – CONTROL PANEL

Products

PositionProduct
1WP3946455 Whirlpool Timer
2Switch, Water Level
3WP3948608 Whirlpool Bracket
4Cap, End (L.H.)
5Switch, Water Temperature
5Switch, Water Temperature (Alt.)
5Switch, Water Temperature (Alt.)
6WP90767 Whirlpool Screw
8WPL 64211
9Console, Panel (For White & Almond Models)
10Cap, End (R.H.)
12Knob, Timer
14WP3351614 Whirlpool Screw
15WP356418 Whirlpool Screw
17Knob (Control)
18Dial, Timer (For White Model)
19WP688805 Whirlpool Spring Clip
