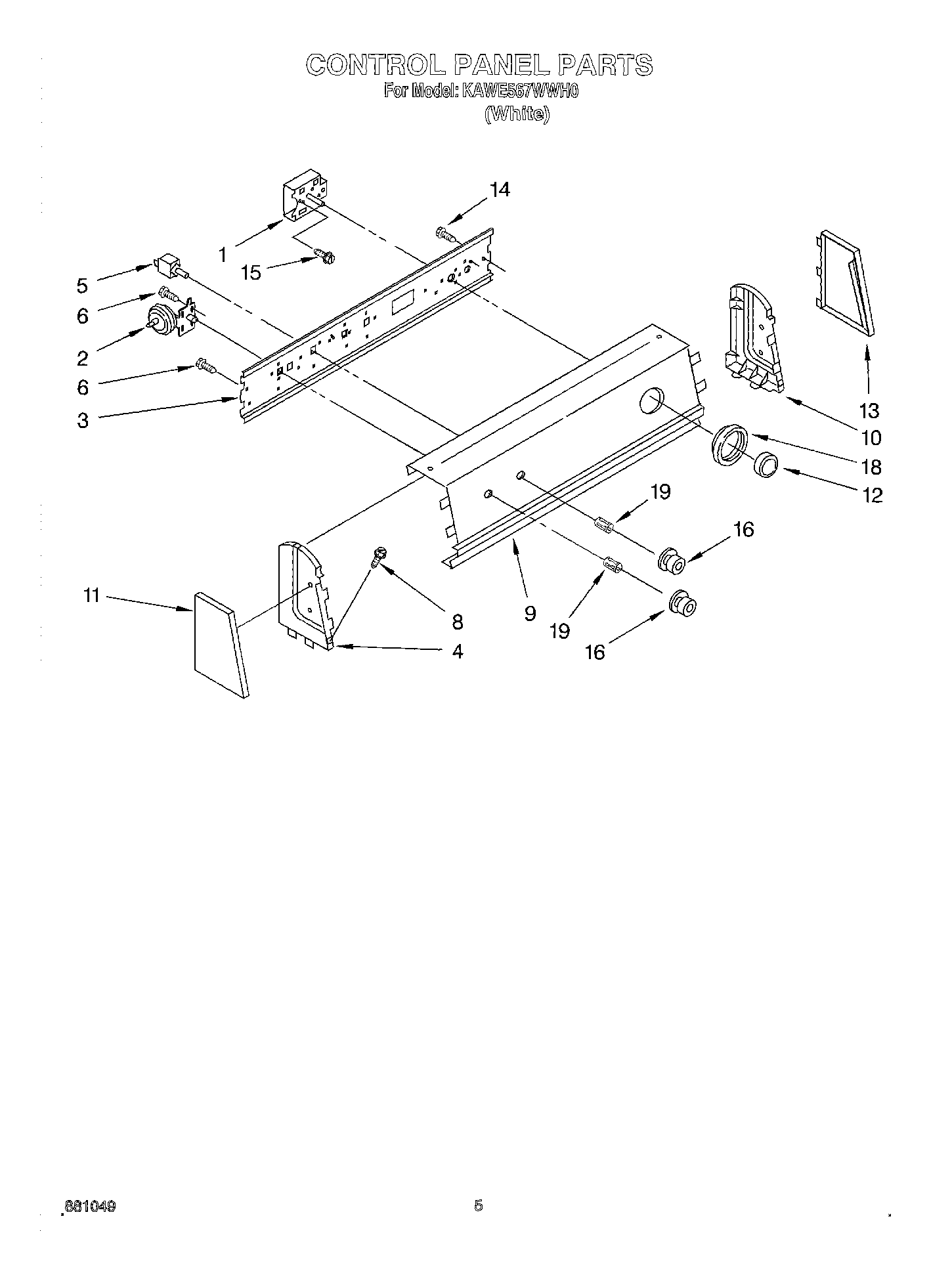

KAWE567WWH0 03 – CONTROL PANEL

Products

PositionProduct
1Timer, Control 60Hz. (Motor Not Serviced)
2Switch, Water Level
3Bracket, Control
4Cap, End (L.H.)
5Switch, Water Temperature (Alt.)
5Switch, Water Temperature (Alt.)
5Switch, Water Temperature
6WP90767 Whirlpool Screw
8WPL 64211
9Console, Panel
10Cap, End (R.H.)
11Trim, Endcap (L.H.)
12Knob, Timer
13Trim, Endcap (R.H.)
14WP3351614 Whirlpool Screw
15WP356418 Whirlpool Screw
16Knob, Control
18Dial, Timer
19WP688805 Whirlpool Spring Clip
