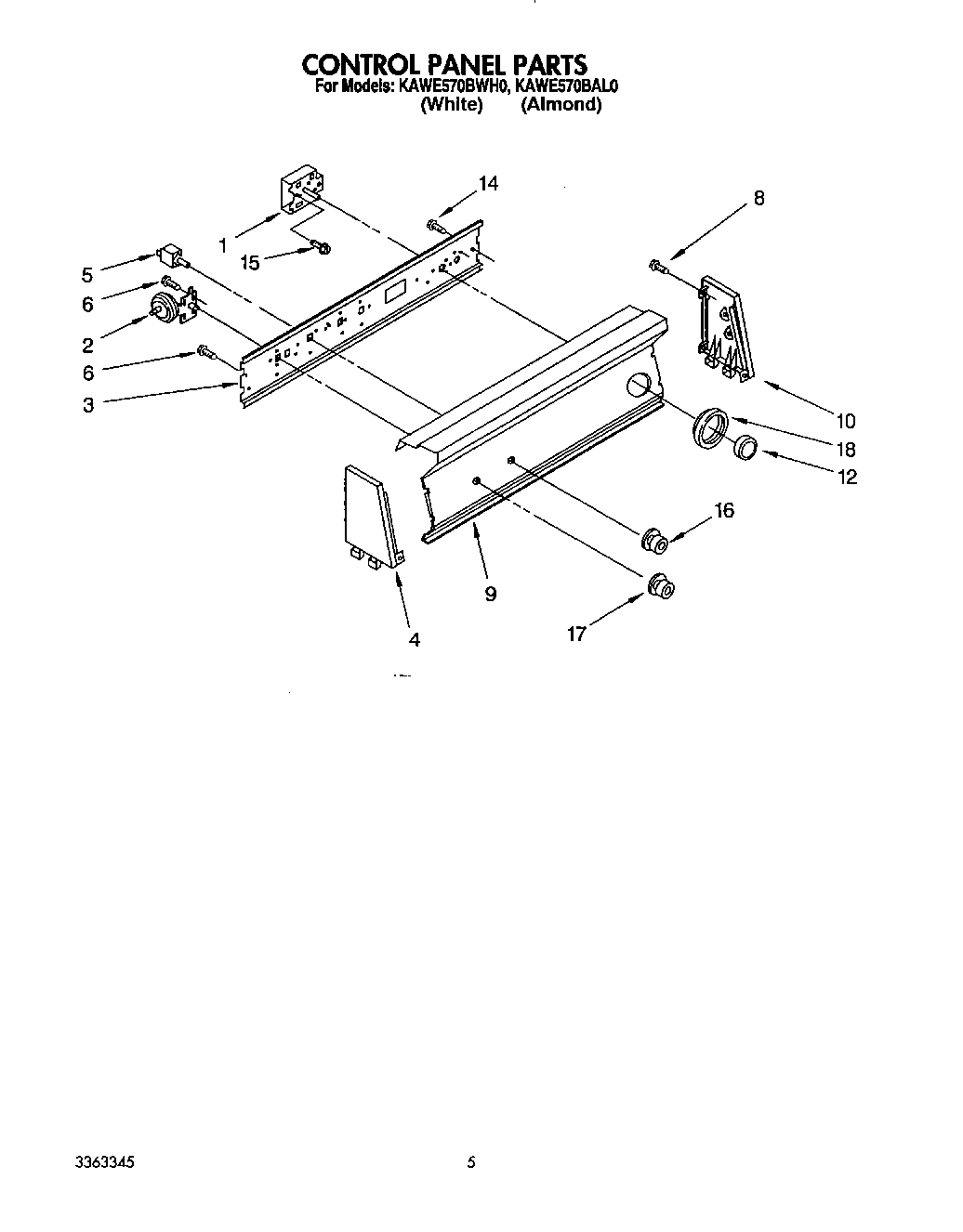

KAWE570BAL0 03 – CONTROL PANEL

Products

Position	Product
1	WP3946455 Whirlpool Timer
2	Switch, Water Level
3	WP3948608 Whirlpool Bracket
4	Cap, End (L.H.)
5	Switch, Water Temperature (Alt.)
5	Switch, Water Temperature (Alt.)
5	Switch, Water Temperature
6	WP90767 Whirlpool Screw
8	WPL 64211
9	Console, Panel (For White Model)
10	Cap, End (R.H.)
12	Knob, Timer
14	WP3351614 Whirlpool Screw
15	WP356418 Whirlpool Screw
17	Knob (Control)
18	Dial, Timer (For White & Almond Models)
