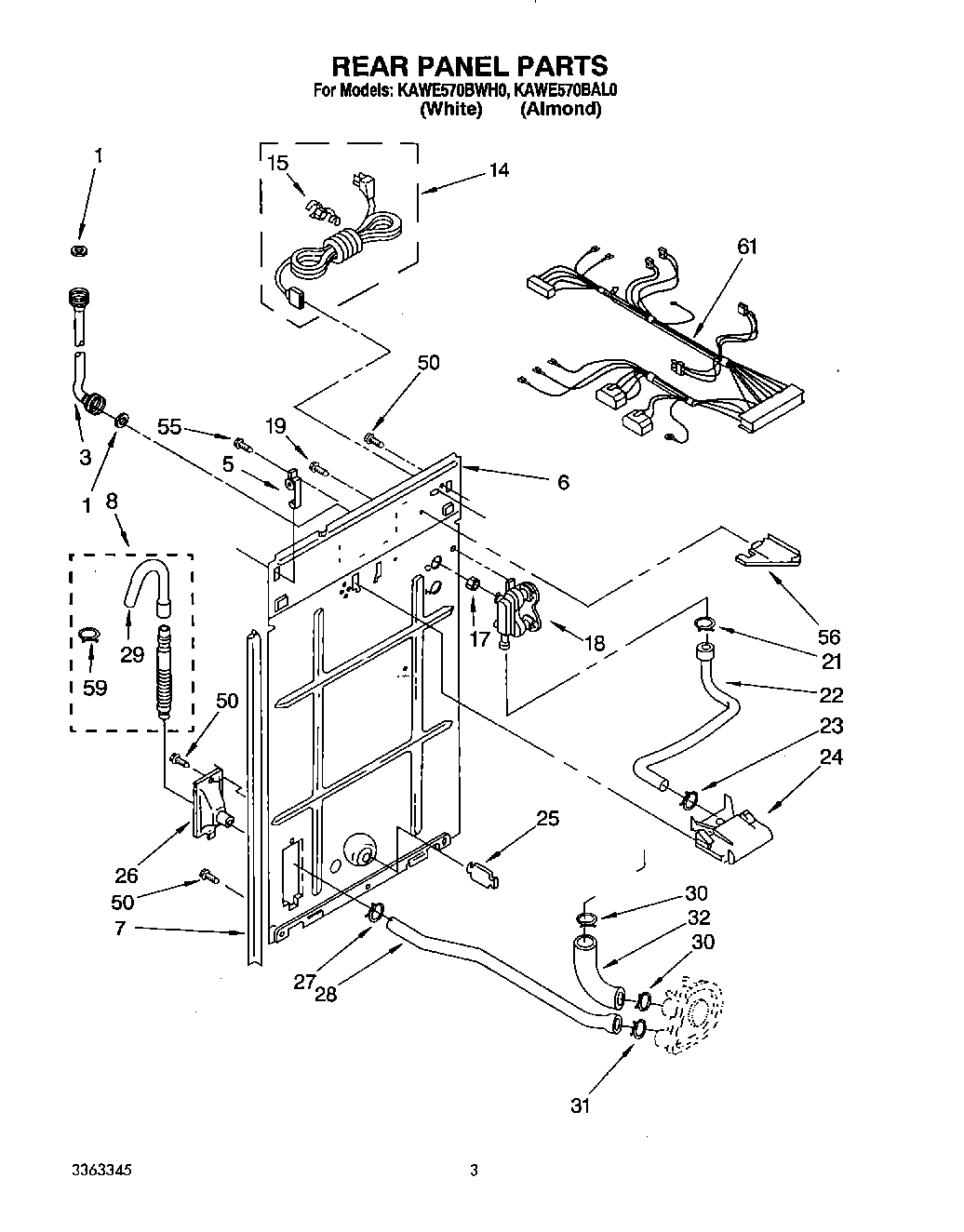

KAWE570BWH0 02 – REAR PANEL

KAWE570BWH0 02 – REAR PANEL

Written by

in

KAWE570BWH0 02 – REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
3WP89503 Whirlpool Washer Fill Hose
5Hinge, Console (2)
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285666 Whirlpool Drain Hose 10'
8285664 Whirlpool Drain Hose
8285702 Whirlpool Extensions
14Cord, Power
15Strain Relief, Power Cord
17WP96160 Whirlpool Washer Inlet Valve Screen
18285805 Whirlpool Washer Water Inlet Valve
19WP3351614 Whirlpool Screw
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28Hose, Pump To Drain
29WP3357027 Whirlpool Nozzle Assembly
30WP371502 Whirlpool Clamp
32285871 Whirlpool Hose and Clamp
50WP3390631 Whirlpool Screw
55WP308685 Whirlpool Microwave Screw
56WPL 3348424
59WP3357331 Whirlpool Clamp
61Harness, Wiring (For Detail See Wiring Harness Parts Page) Also See Clips.
