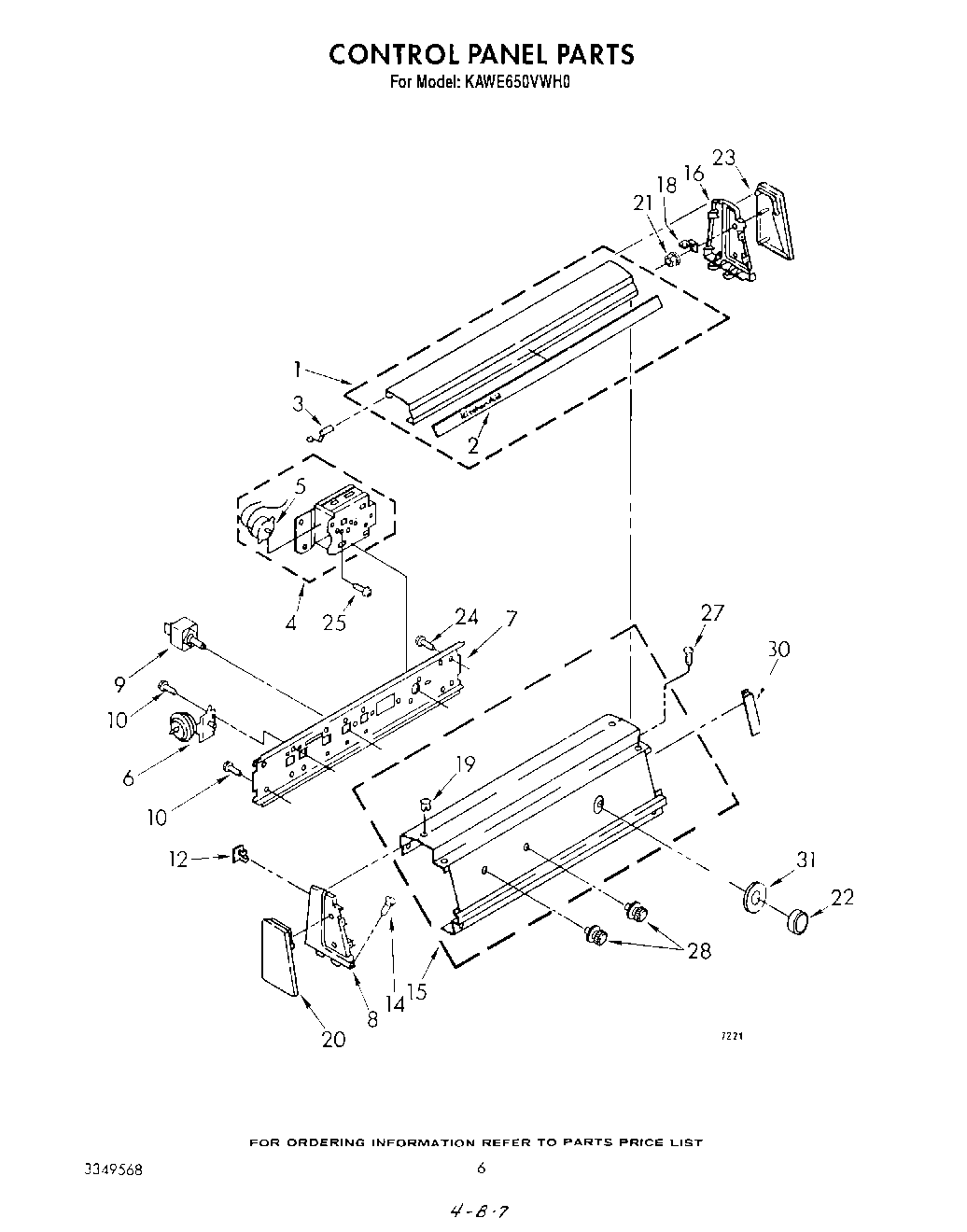

KAWE650VWH0 04 – CONTROL PANEL

Products

Position	Product
1	Cover & Insert
2	Insert
3	Hinge, Lamp Cover
4	Timer, Control 60 Hz,
5	Motor, Timer
6	Switch, Water Level
7	Bracket, Control
8	End Cap (L.H.)
9	Switch, Water Temperature
9	Switch, Water Temperature (Alt.)
9	Switch, Water Temperature (Alt.)
10	WP90767 Whirlpool Screw
12	WP689559 Whirlpool Nut
14	WPL 64211
15	Console, Panel
16	Cap, End (R.H.)
18	Bracket, End Cap (2)
19	Plug, Latch (3)
20	Trim, End Cap (L.H.)
21	Nut, No.10 Thread
22	Knob, Timer
23	Trim, End Cap (R.H.)
24	WP3351614 Whirlpool Screw
25	WP356418 Whirlpool Screw
27	WPL 310629
28	Knob, Adjustable Buzzer
30	Spacer, Console (2)
31	Dial, Timer
