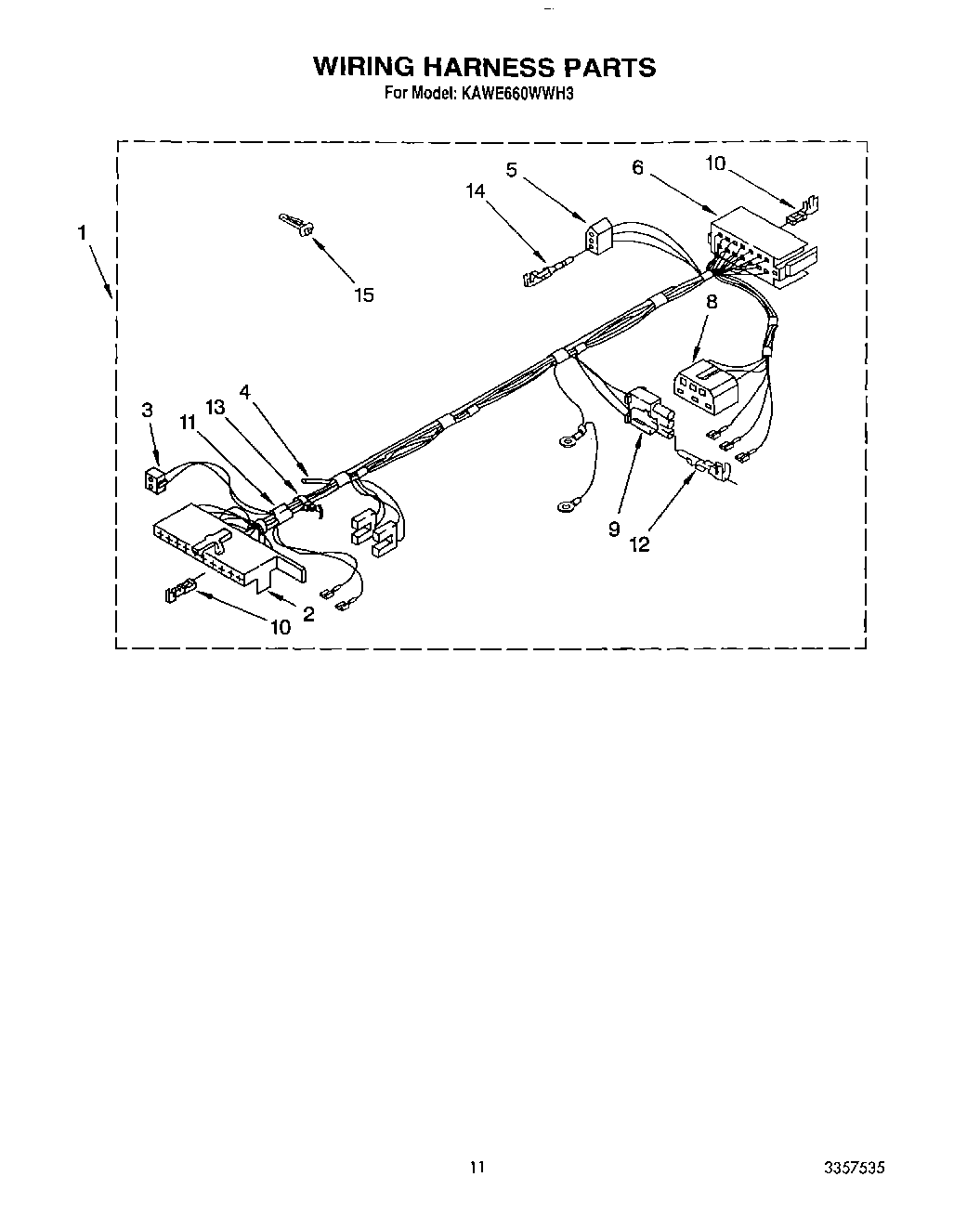

KAWE660WWH3 09 – WIRING HARNESS

KAWE660WWH3 09 – WIRING HARNESS

Written by

in

KAWE660WWH3 09 – WIRING HARNESS

Products

PositionProduct
1Wiring Harness & Pressure Switch Hose
2WP62505 Whirlpool Connector
3Block, Disconnect (Motor 3 Speed) (Use Term. 94613 Or 94614)
4WP353244 Whirlpool Hose
5353424 Whirlpool Connector
6W10876590 Whirlpool Connector
8Block, Disconnect
9WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
10Terminal
11Protector, Harness
12WP94614 Whirlpool Terminal
13Clip, Harness
14WP596797 Whirlpool Terminal
15Clip, Harness
