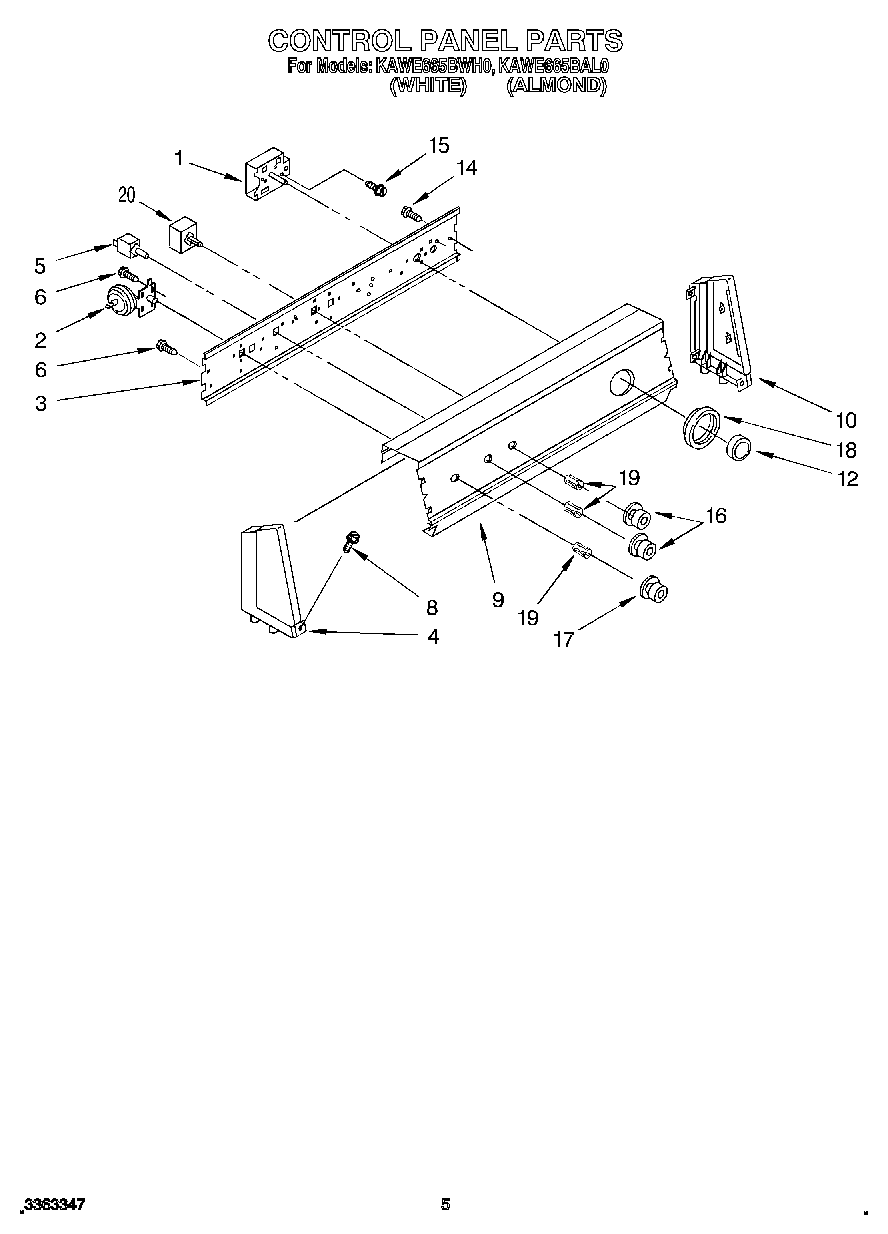

KAWE665BAL0 03 – CONTROL PANELadmin2025-04-26T13:05:28+00:00KAWE665BAL0 03 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Timer, Control 60 Hz. (Motor Not Serviced) |
| 2 | Switch, Water Level |
| 3 | WP3948608 Whirlpool Bracket |
| 4 | Cap, End (L.H.) |
| 5 | Switch, Water Temperature (Alt.) |
| 5 | Switch, Water Temperature (Alt.) |
| 5 | Switch, Water Temperature |
| 6 | WP90767 Whirlpool Screw |
| 8 | WPL 64211 |
| 9 | Panel, Console (For White & Almond Models) |
| 10 | Cap, End (R.H.) |
| 12 | Knob, Timer |
| 14 | WP3351614 Whirlpool Screw |
| 15 | WP356418 Whirlpool Screw |
| 17 | Knob (Control) |
| 18 | Dial, Timer (For White & Almond Models) |
| 19 | WP688805 Whirlpool Spring Clip |
| 20 | Switch, Temperature |
