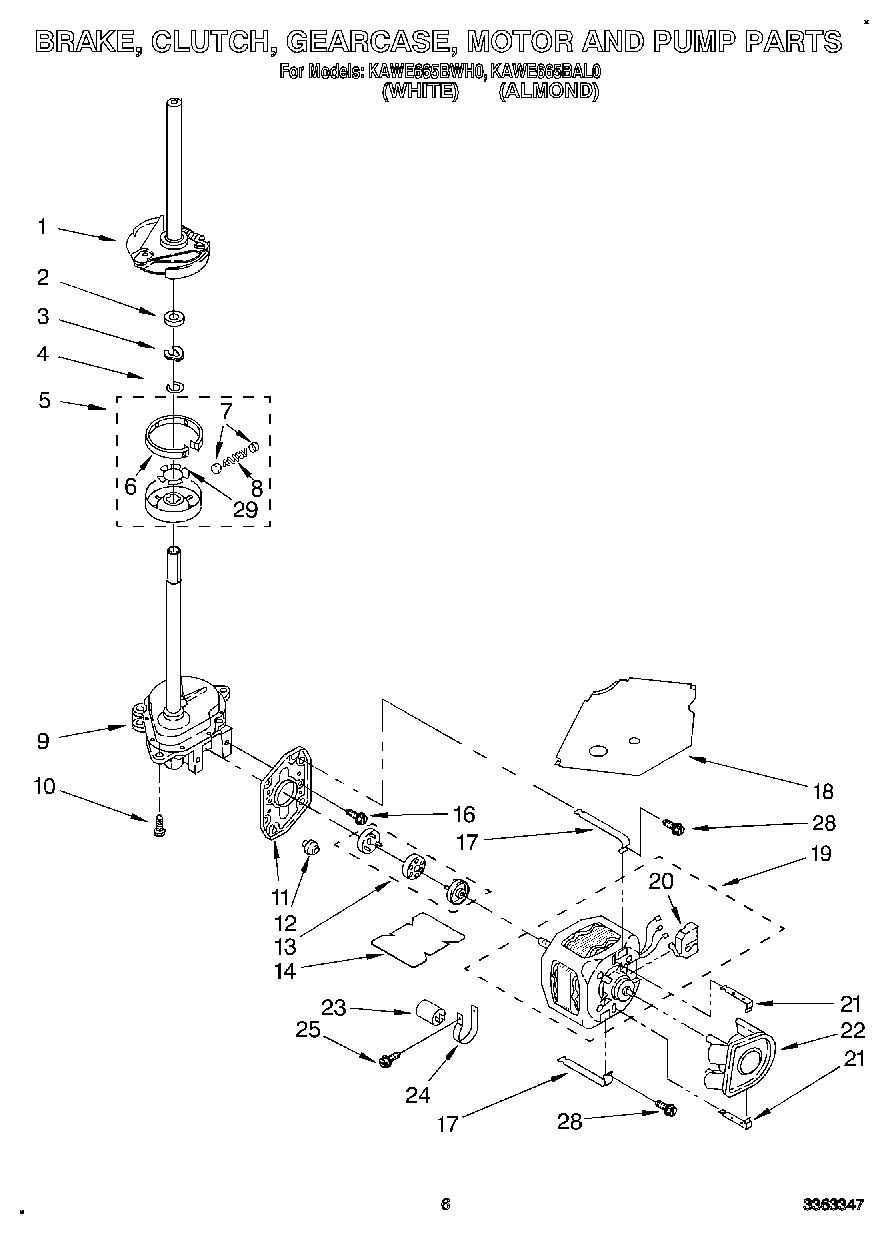

KAWE665BAL0 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

Products

PositionProduct
1W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2WP63292 Whirlpool Washer
3WPW10080230 Whirlpool Ring
4285353 Whirlpool Ring
5285785 Whirlpool Washer Direct Drive Clutch
7WP62646 Whirlpool Cap
8285790 Whirlpool Washer Clutch Band and Lining Kit
93360629 Whirlpool Washer Gearcase Transmission
11WP62611 Whirlpool Plate
12WP62691 Whirlpool Grommet
13285753A Whirlpool Washer Direct Drive Motor Coupling
14WP3946532 Whirlpool Shield
16WP3400516 Whirlpool Screw
17WPW10086010 Whirlpool Motor Retainer Clip
18W10838408 Whirlpool Motor Shield
19Motor, Main Drive
20Switch, Main Drive Motor
21WP8546127 Whirlpool Retainer Clip
22WP3363892 Whirlpool Water Pump
23WP8572720 Whirlpool Capacitor
24357030 Whirlpool Clamp
25WP3390631 Whirlpool Screw
28WP273556 Whirlpool Screw
29Clip, Anti-Rattle
