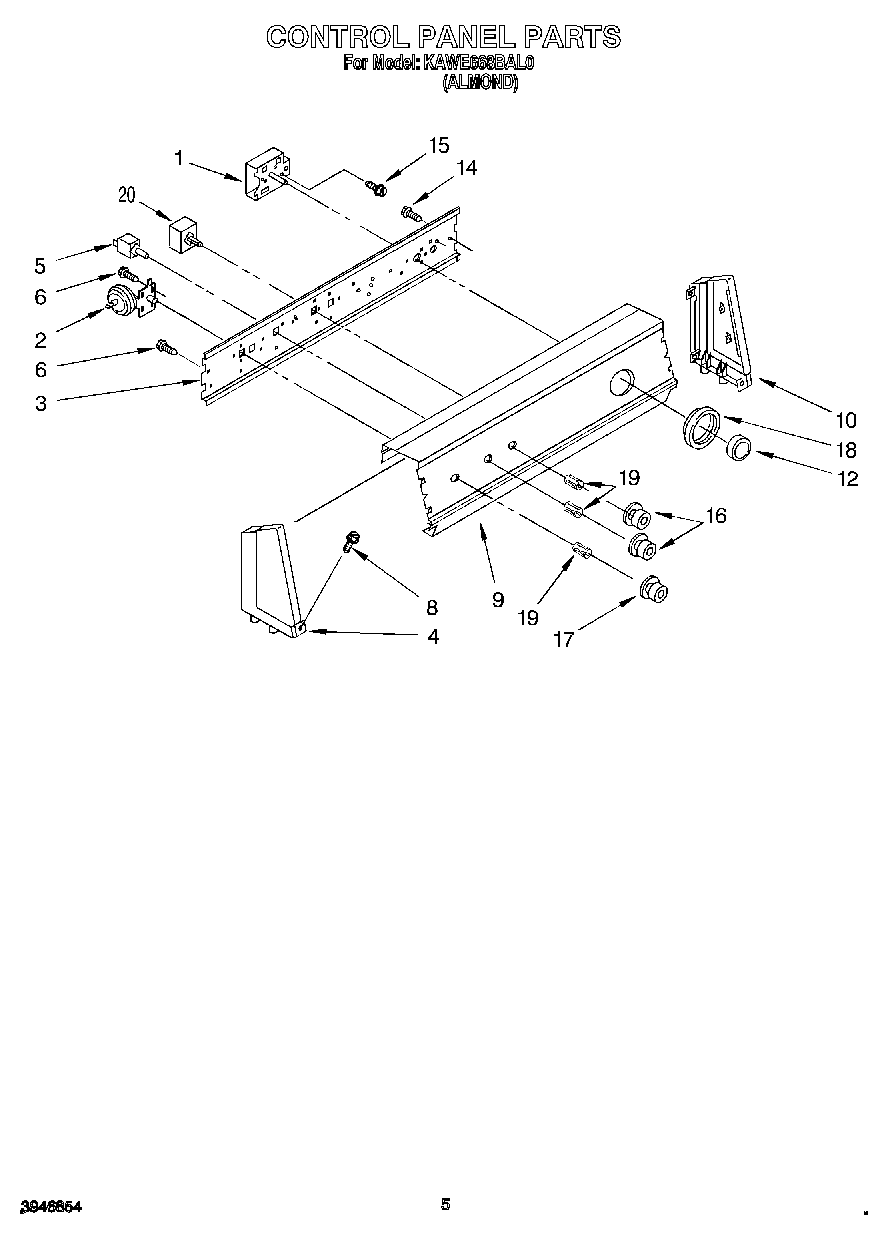

KAWE668BAL0 03 – CONTROL PANEL

Products

PositionProduct
1Timer, Control 60 Hz. (Motor Not Serviced)
2Switch, Water Level
3WP3948608 Whirlpool Bracket
4End Cap (L.H.)
5Switch, Water Temperature (Alt.)
5Switch, Water Temperature
5Switch, Water Temperature (Alt.)
6WP90767 Whirlpool Screw
8WP388326 Whirlpool Screw
9Panel, Console (For Almond Model)
10Cap, End (R.H.)
12Knob, Timer
14WP3351614 Whirlpool Screw
15WP356418 Whirlpool Screw
17Knob, Control
18Dial, Timer
19WP688805 Whirlpool Spring Clip
20Switch, Temperature
