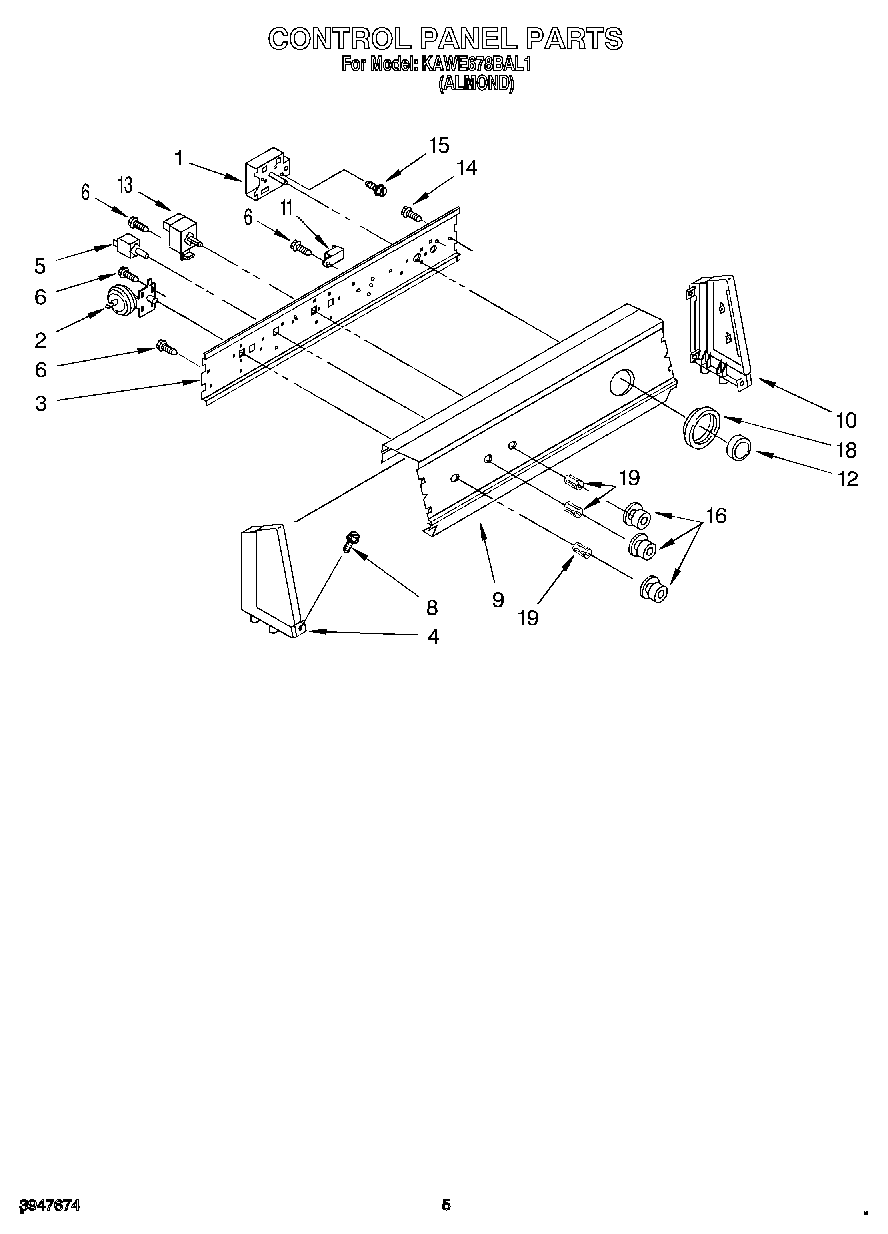

KAWE678BAL1 04 – CONTROL PANEL

Products

Position	Product
1	WP3946476 Whirlpool Timer
2	Switch, Water Level
3	WP3948608 Whirlpool Bracket
4	End Cap (L.H.)
5	Switch, Water Temperature
5	Switch, Water Temperature (Alt.)
5	Switch, Water Temperature (Alt.)
6	WP90767 Whirlpool Screw
8	WP388326 Whirlpool Screw
9	Console, Panel (For Almond Model)
10	Cap, End (R.H.)
11	WP694419 Whirlpool Buzzer Adjuster
12	Knob, Timer
13	Switch, Rotary
14	WP3351614 Whirlpool Screw
15	WP356418 Whirlpool Screw
16	Knob, Control
18	Dial, Timer
19	WP688805 Whirlpool Spring Clip
