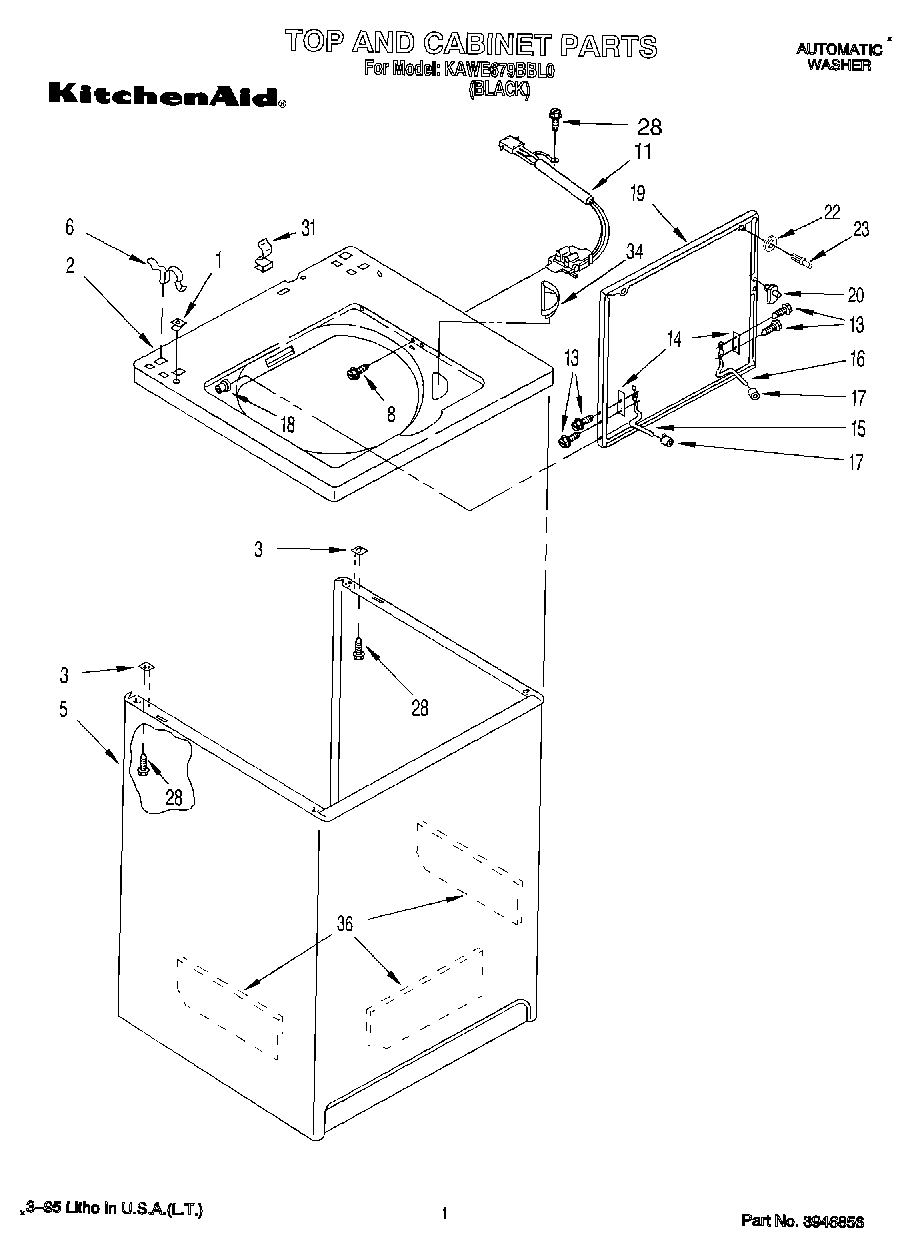

KAWE679BBL0 01 – TOP AND CABINET, LIT/OPTIONAL

Products

Position	Product
	Wiring Diagram
	Golden Harvest
	Golden Harvest (Uncut)
	Shipping Kit
	WPL 89121
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WP285195 Whirlpool Sealer Assembly
	WP384496 Whirlpool Hose Coupling
	Energy Guide
	Sheet, I
	Guide, Use and Care
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	350572 Whirlpool Oil Transmission 15 Oz
	799344 Whirlpool Refrigerator Paint
	350930 Whirlpool White Spray Paint
	350938 Whirlpool Spray Gun
	Almond (Uncut)
	350956 Whirlpool Spray Assembly
	285320 Whirlpool Washer Siphon Break Kit
	Drain Protector (Not Included)
	72017 Whirlpool Appliance Touch-Up Paint White
	WP72107 Whirlpool Touchup
1	WP357213 Whirlpool Hinge Stopper
2	Top (For Black Model)
3	WP62750 Whirlpool Spacer
5	Cabinet (For Black Model)
6	WP62780 Whirlpool Cabinet Clip
8	WP3356311 Whirlpool Screw
11	285671 Whirlpool Lid Switch Assembly
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (For Black Model)
20	WP358684 Whirlpool Strike Assembly
22	Bumper, Lid (1)
23	WP356907 Whirlpool Rivet
28	SCREW
31	WP90016 Whirlpool Clip
34	WP3362952 Whirlpool Bezel
36	Cabinet-Sound Damper
