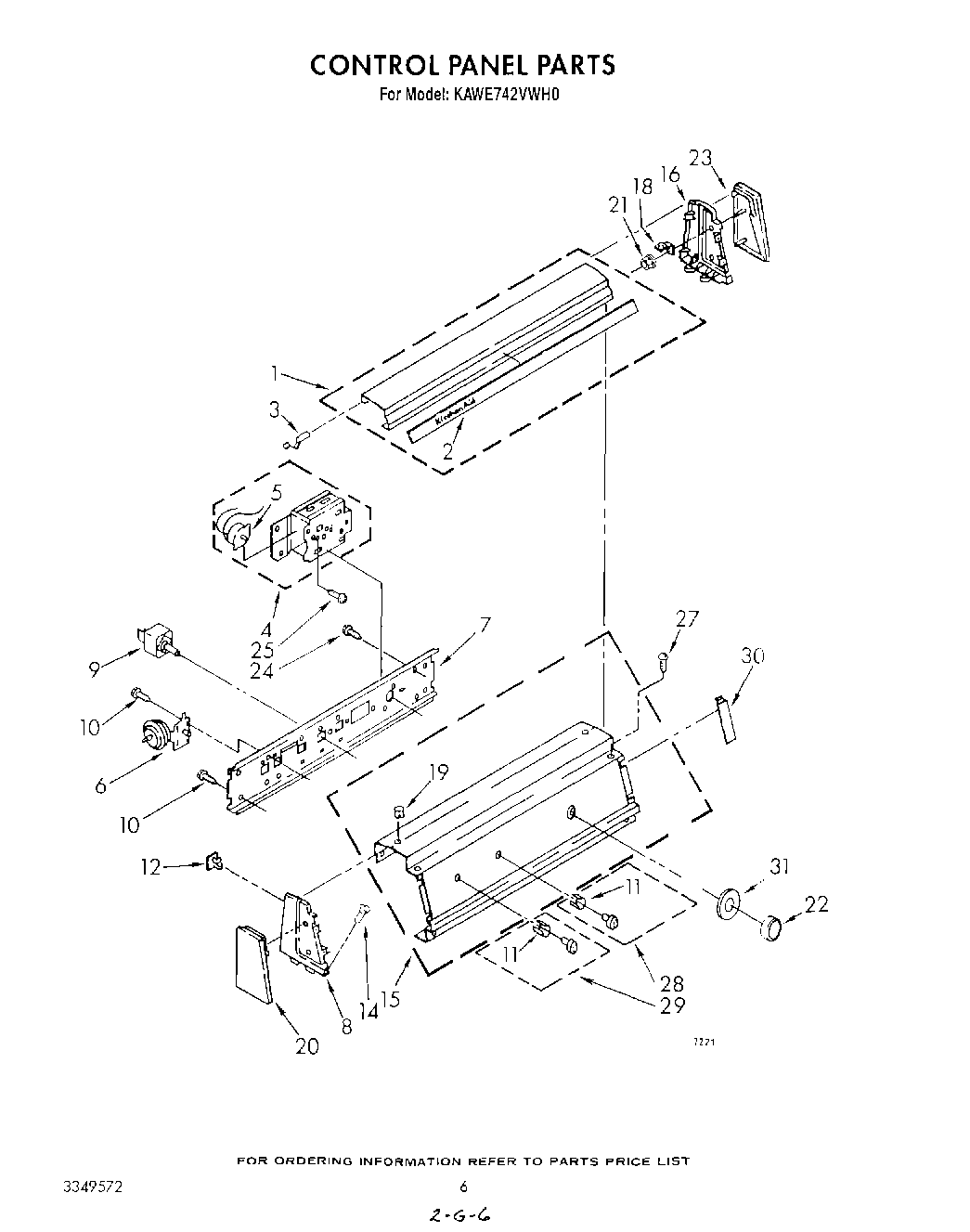

KAWE742VWH0 04 – CONTROL PANELadmin2025-04-26T13:04:02+00:00KAWE742VWH0 04 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Cover & Insert |
| 2 | Insert, Console Pad |
| 3 | Hinge, Lamp Cover |
| 4 | Timer, Control 60 Hz. (Motor Not Serviced) |
| 5 | Motor, Timer |
| 6 | Switch, Water Level |
| 7 | Bracket, Control |
| 8 | End Cap (L.H.) |
| 9 | Switch, Water Temperature |
| 10 | WP90767 Whirlpool Screw |
| 11 | WP688805 Whirlpool Spring Clip |
| 12 | WP689559 Whirlpool Nut |
| 14 | WPL 64211 |
| 15 | Panel, Console |
| 16 | Cap, End (R.H.) |
| 18 | Bracket, End Cap (2) |
| 19 | Plug, Latch (3) |
| 20 | Trim, End Cap (L.H.) |
| 21 | Nut, No.10 Thread |
| 22 | Knob, Timer |
| 23 | Trim, End Cap (R.H.) |
| 24 | WP3351614 Whirlpool Screw |
| 25 | WP356418 Whirlpool Screw |
| 27 | WPL 310629 |
| 29 | Knob, Adjustable Buzzer |
| 30 | Spacer, Console (2) |
| 31 | Dial, Timer |
