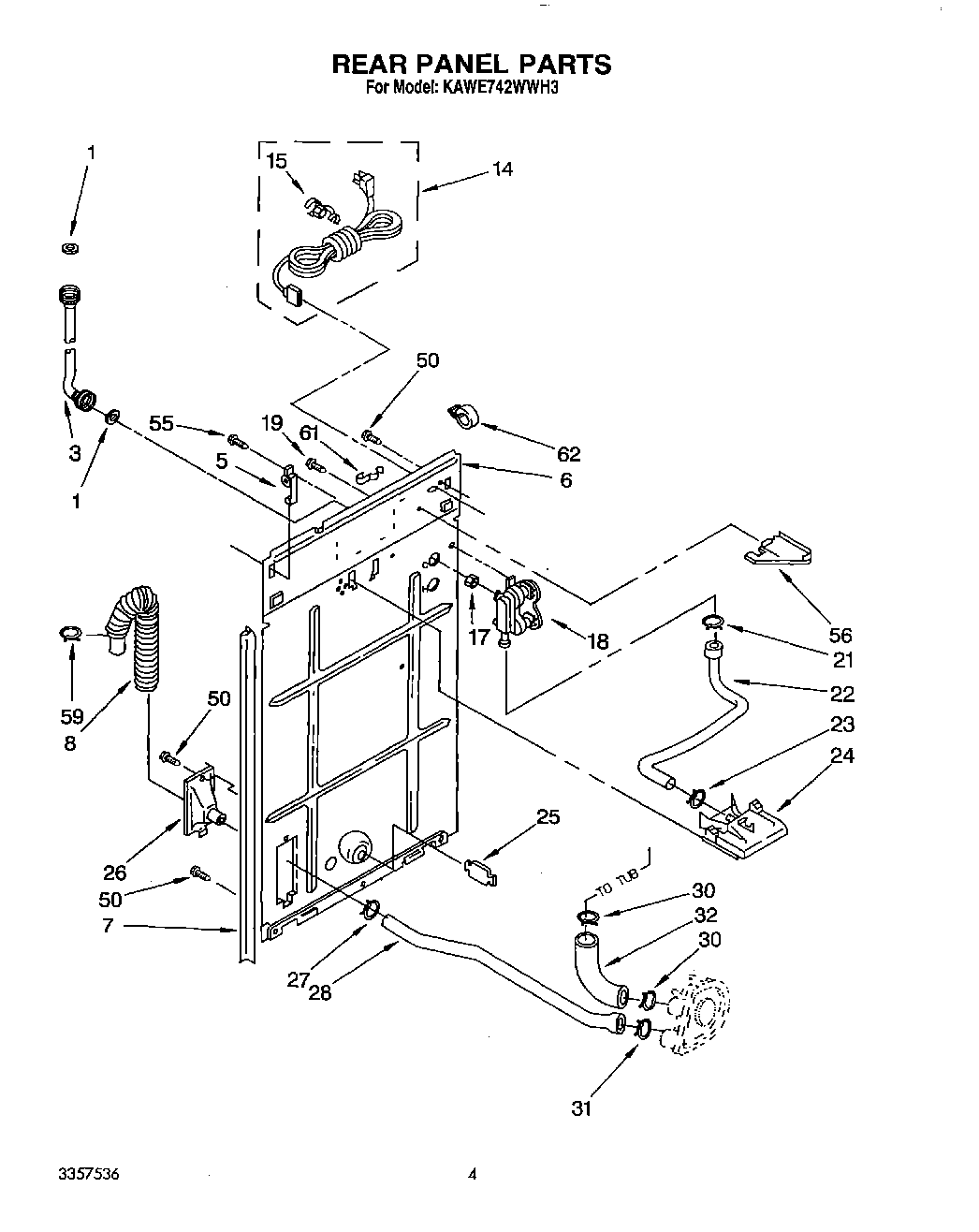

KAWE742WWH3 03 – REAR PANEL

KAWE742WWH3 03 – REAR PANEL

Written by

in

KAWE742WWH3 03 – REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
3WP89503 Whirlpool Washer Fill Hose
5Hinge, Console (2)
6Panel, Rear
7WP62747 Whirlpool Pad
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
14Cord, Power
15Strain Relief, Power Cord
17WP96160 Whirlpool Washer Inlet Valve Screen
18285805 Whirlpool Washer Water Inlet Valve
19WP3351614 Whirlpool Screw
22HOSE
23WP596669 Whirlpool Hose Clamp
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28Hose, Pump To Drain Connector
30WP371502 Whirlpool Clamp
32285871 Whirlpool Hose and Clamp
50WP3390631 Whirlpool Screw
55WP308685 Whirlpool Microwave Screw
56WPL 3348424
59WP3357331 Whirlpool Clamp
618528351 Whirlpool Clip
628559320 Whirlpool Clip
