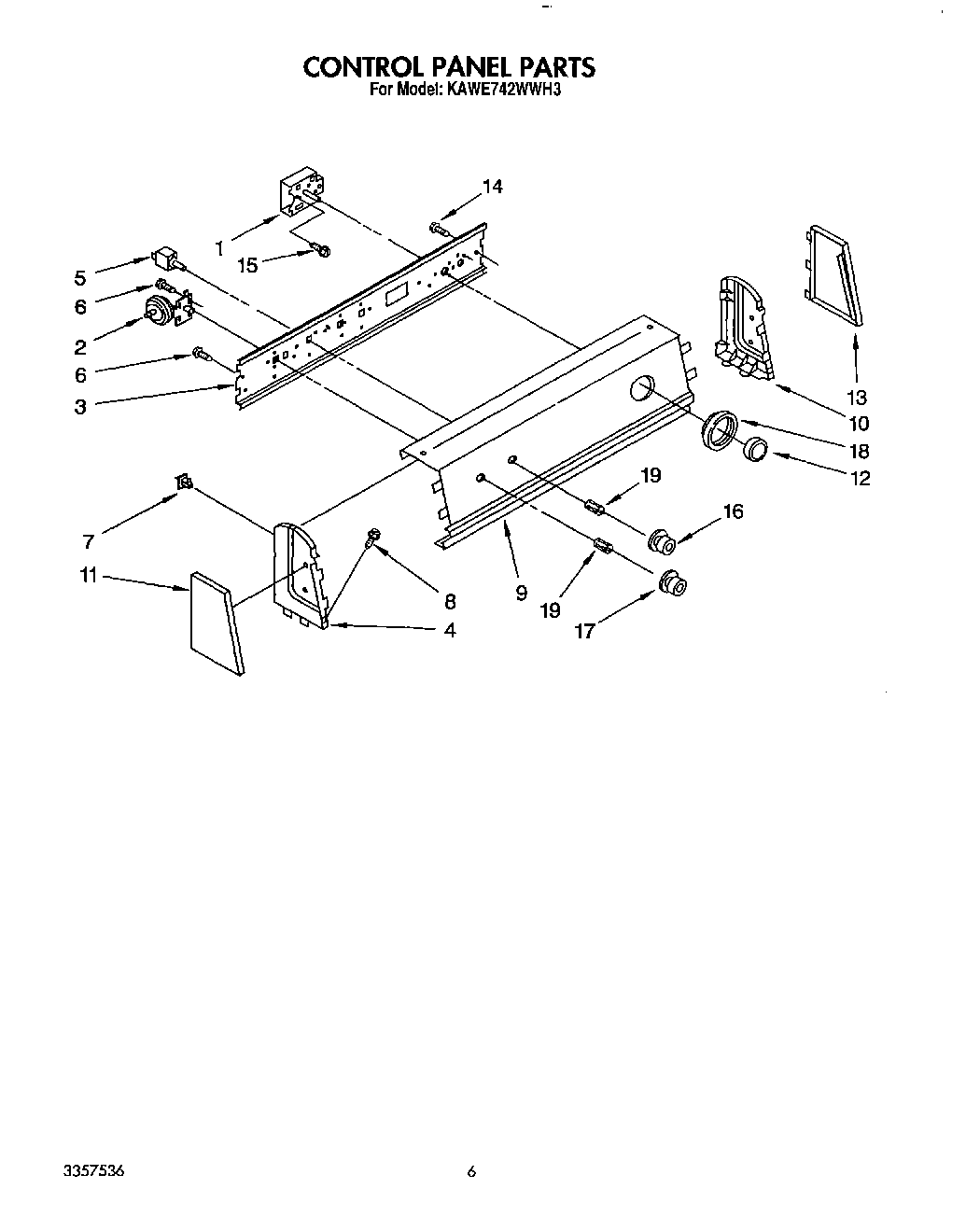

KAWE742WWH3 04 – CONTROL PANEL

Products

Position	Product
1	Timer, Control 60 Hz. (Motor Not Serviced)
2	Switch, Water Level
3	Bracket, Control
4	Cap, End (L.H.)
5	Switch, Water Temperature
6	WP90767 Whirlpool Screw
7	WP689559 Whirlpool Nut
8	WPL 64211
9	Panel, Console
10	Cap, End (R.H.)
11	Trim, Endcap (L.H.)
12	Knob, Timer
13	Trim, Endcap (R.H.)
14	WP3351614 Whirlpool Screw
15	WP356418 Whirlpool Screw
17	Knob, Adjustable Buzzer
18	Dial, Timer
19	WP688805 Whirlpool Spring Clip
