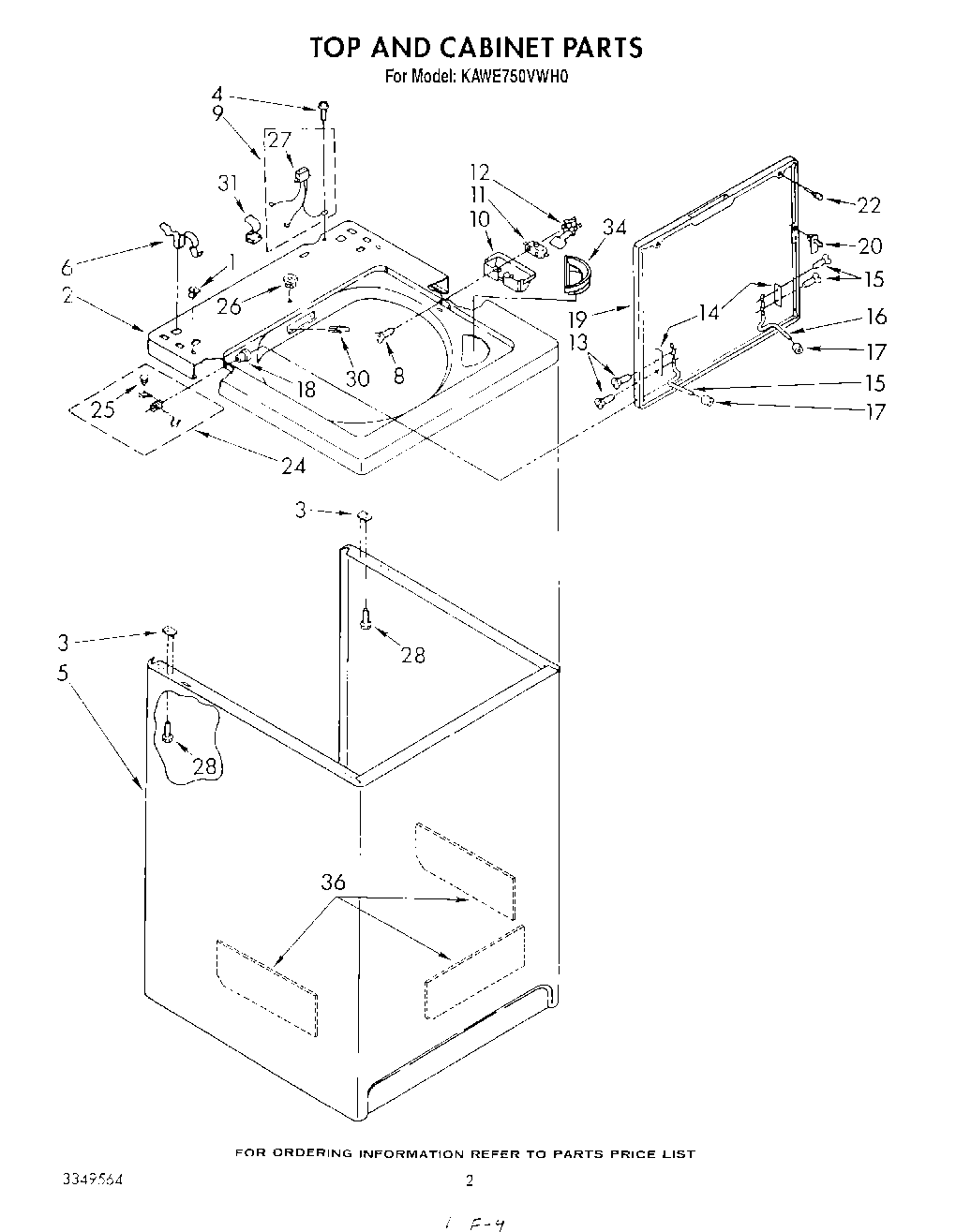

KAWE750VAL0 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	WPL 72112
	WPL LIT3349564
	WPL LIT3347346
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WPL LIT3347354
	WP285195 Whirlpool Sealer Assembly
	Golden Harvest
	WPL LIT3349778
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	WPL LIT3351594
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Leveler (Thinner)
	Almond (Uncut)
	WPL LIT3350584
	350572 Whirlpool Oil Transmission 15 Oz
	72113 Whirlpool Touch-Up Paint
1	Nut, Push-In (2)
2	Top (Almond)
2	Top (White)
3	WP62750 Whirlpool Spacer
5	Cabinet (Almond)
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
8	Screw & Washer, Lid Switch (2)
9	Harness, Lid Switch
10	WP359231 Whirlpool Shield
11	W10820036 Whirlpool Door Switch Kit
12	Actuator, Lid Switch
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (White)
19	Lid (Almond)
20	WP358684 Whirlpool Strike Assembly
22	WP9724509 Whirlpool Bumper
24	Spring & Button, Lid ((L.H.))
24	Spring & Button, Lid ((R.H.))
25	Plug, Button
26	Stop, Push-In Top
27	Plug, Terminal (3-Way)
28	SCREW
30	Rivet, Serial Nameplate
31	WP90016 Whirlpool Clip
34	WP3362952 Whirlpool Bezel
36	Cabinet-Sound Damper
