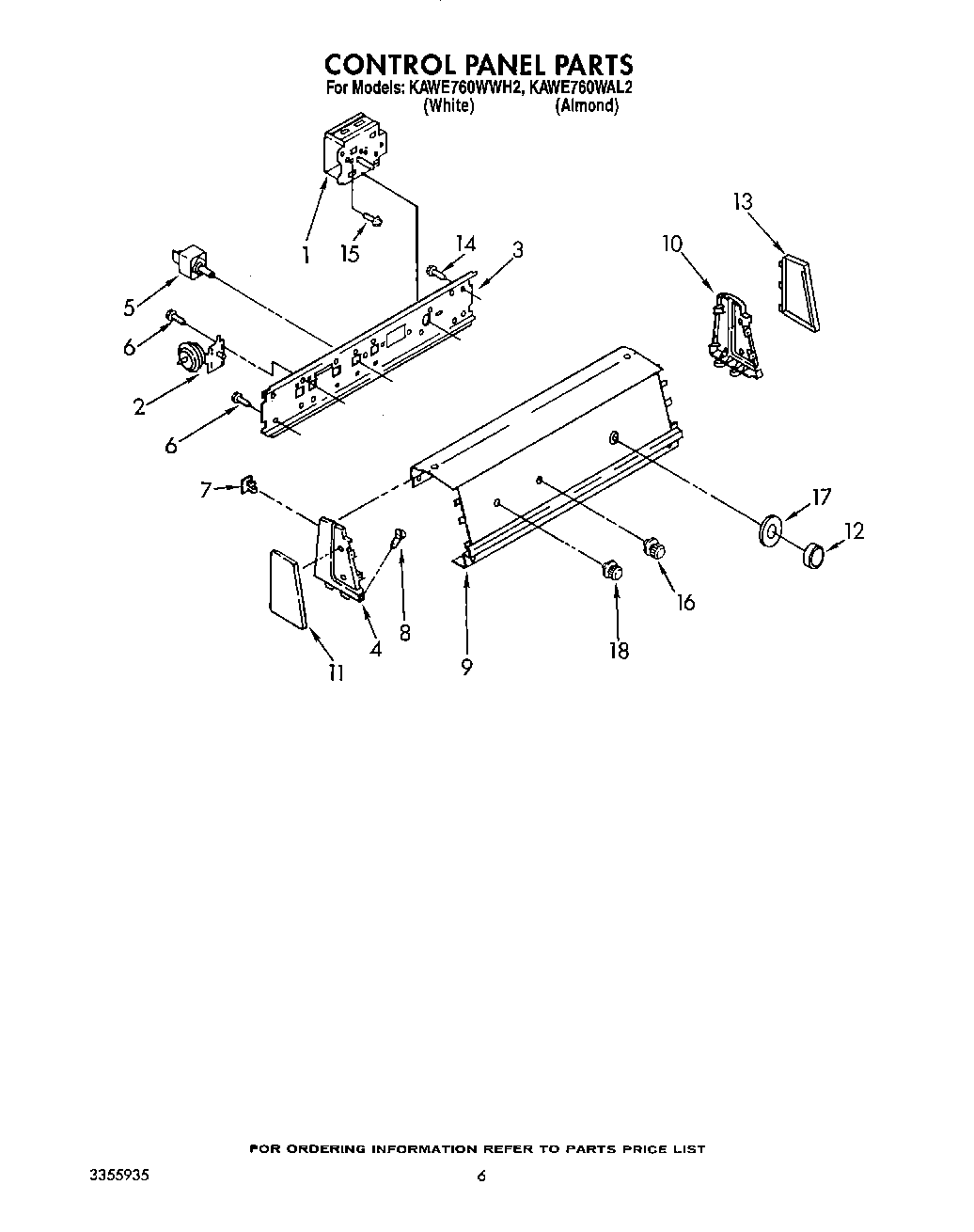

KAWE760WAL2 04 – CONTROL PANEL

Products

PositionProduct
1Timer, Control 60 Hz. (Motor Not Serviced)
2Switch, Water Level
3Bracket, Control
4Cap, End (L.H.)
5Switch, Water Temperature
6WP90767 Whirlpool Screw
7WP689559 Whirlpool Nut
8WPL 64211
9Console, Panel
10Cap, End (R.H.)
11Trim, Endcap (L.H.)
12Knob, Timer
13Trim, Endcap (R.H.)
14WP3351614 Whirlpool Screw
15WP356418 Whirlpool Screw
17Dial, Timer
18Knob, Adjustable Buzzer
