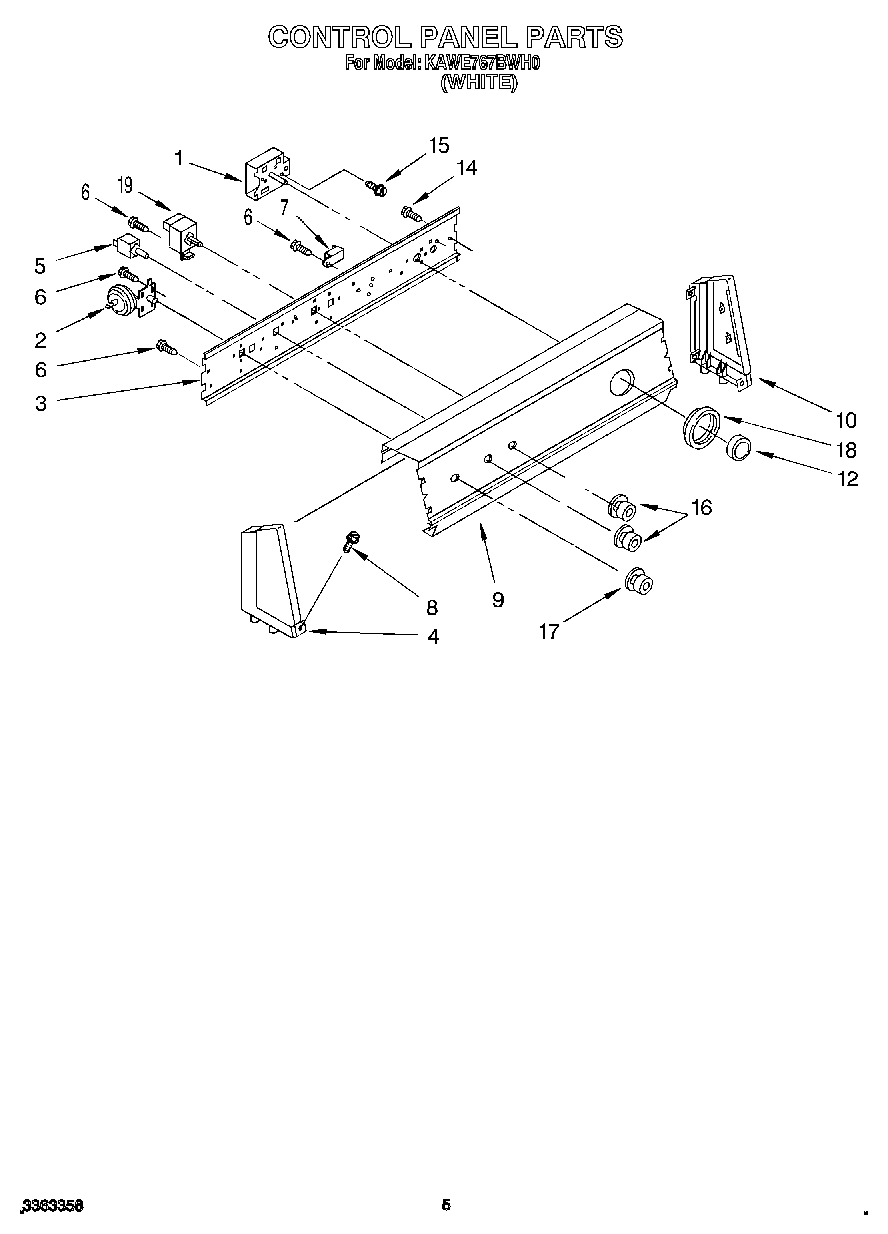

KAWE767BWH0 03 – CONTROL PANEL

Products

PositionProduct
1Timer, Control 60 Hz. (Motor Not Serviced)
2Switch, Water Level (For Designer White Model)
3WP3948608 Whirlpool Bracket
4Cap, End (L.H.)
5Switch, Water Temperature
6WP90767 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8WP388326 Whirlpool Screw
9Panel, Console (For White Model)
10Cap, End (R.H.)
12Knob, Timer
14WP3351614 Whirlpool Screw
15WP356418 Whirlpool Screw
17Knob, Control
18Dial, Timer (For White & Almond Models)
19Switch, Temperature
