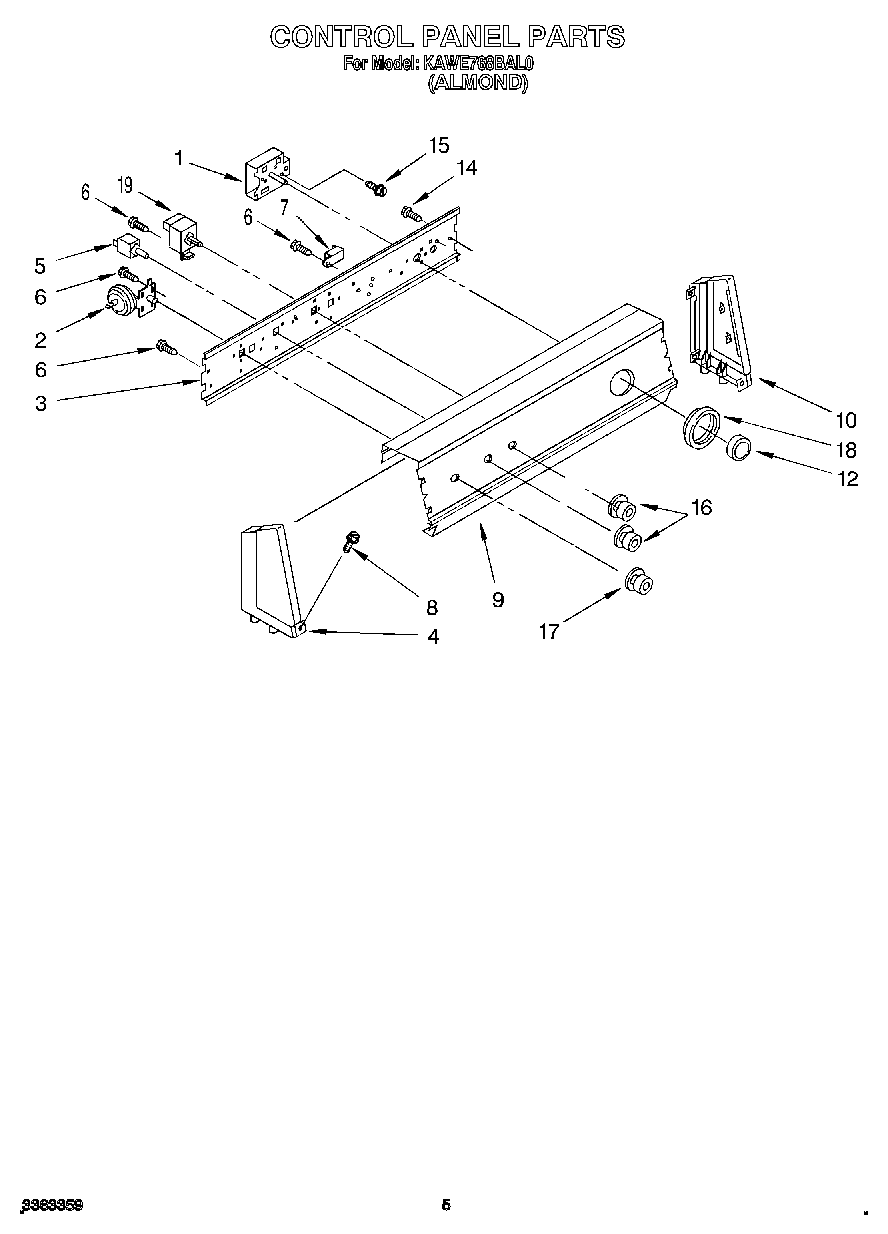

KAWE768BAL0 03 – CONTROL PANEL

Products

Position	Product
1	Timer, Control 60 Hz. (Motor Not Serviced)
2	Switch, Water Level (For Designer White Model)
3	WP3948608 Whirlpool Bracket
4	End Cap (L.H.)
5	Switch, Water Temperature
6	WP90767 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	WP388326 Whirlpool Screw
9	Panel, Console
10	Cap, End (R.H.)
12	Knob, Timer
14	WP3351614 Whirlpool Screw
15	WP356418 Whirlpool Screw
17	Knob, Control
18	Dial, Timer
19	Switch, Temperature
