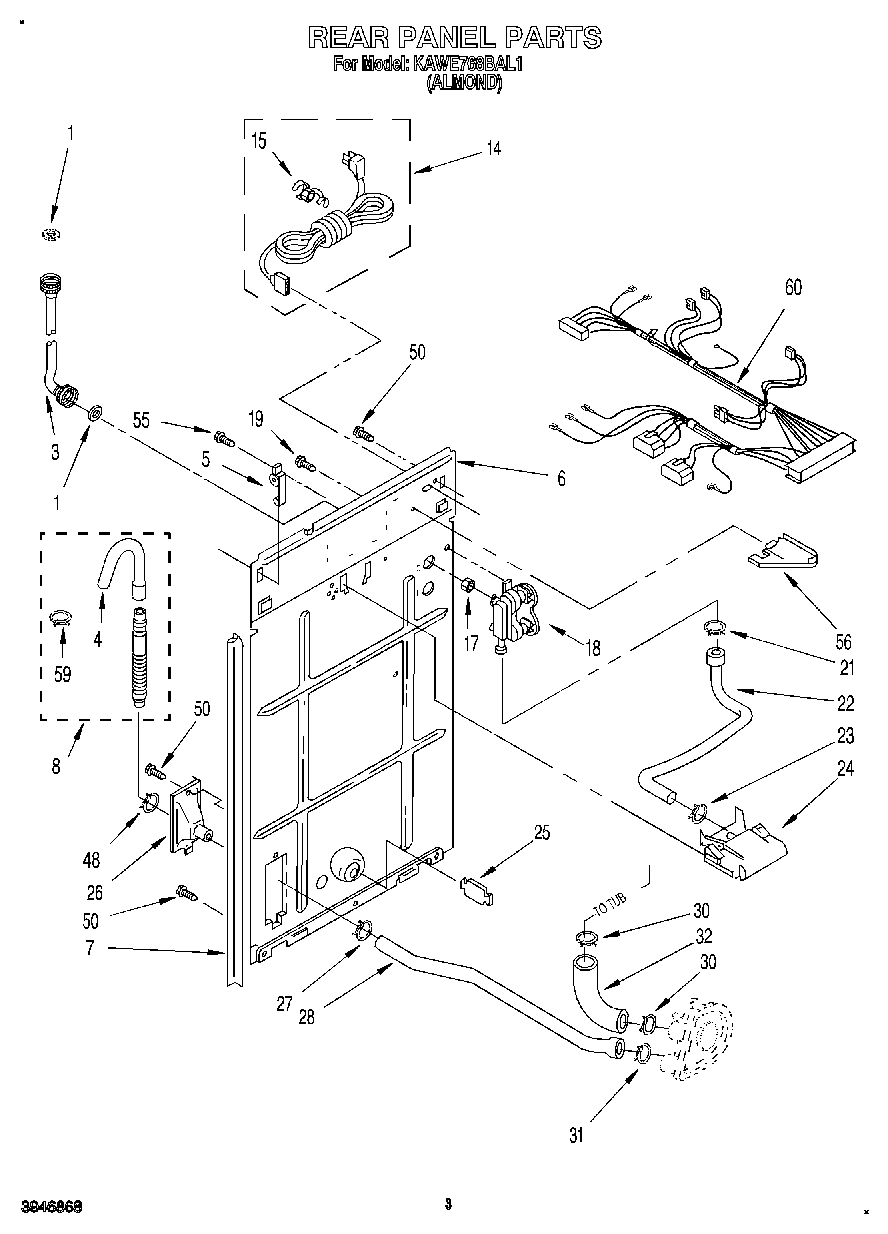

KAWE768BAL1 02 – REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
3	WP89503 Whirlpool Washer Fill Hose
4	WP3357027 Whirlpool Nozzle Assembly
5	Hinge, Console (2)
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285666 Whirlpool Drain Hose 10'
8	285664 Whirlpool Drain Hose
8	285702 Whirlpool Extensions
14	Cord, Power
15	Strain Relief, Power Cord
17	WP96160 Whirlpool Washer Inlet Valve Screen
18	285805 Whirlpool Washer Water Inlet Valve
19	WP3351614 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
28	Hose, Pump To Drain
30	WP371502 Whirlpool Clamp
32	285871 Whirlpool Hose and Clamp
48	WP356138 Whirlpool Hose Clamp
50	WP3390631 Whirlpool Screw
55	WP308685 Whirlpool Microwave Screw
56	WPL 3348424
59	WP3357331 Whirlpool Clamp
60	Harness, Wiring (For Detail See Wiring Harness Parts Page.) Also See Clips.
