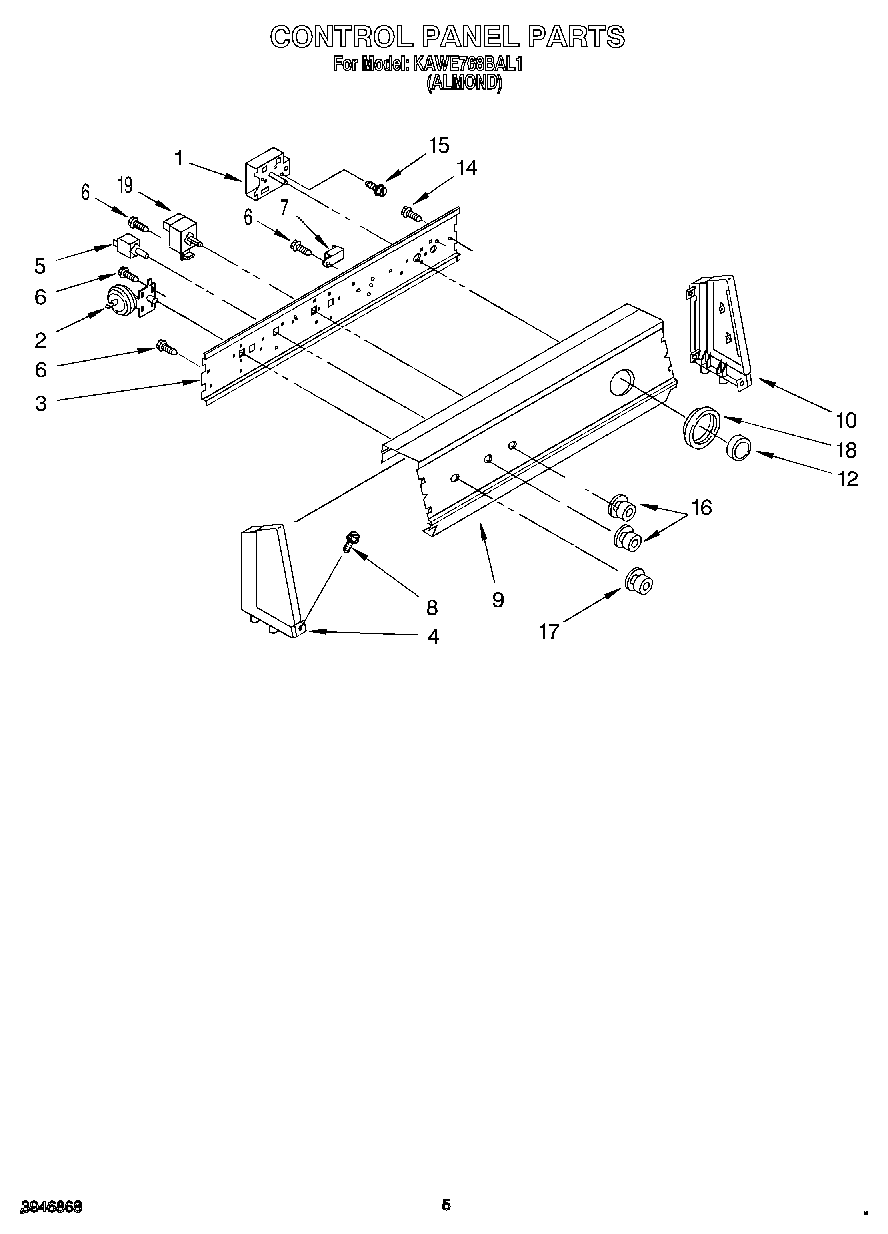

KAWE768BAL1 03 – CONTROL PANEL

Products

PositionProduct
1Timer, Control 60 Hz. (Motor Not Serviced)
2Switch, Water Level (For Designer White Model)
3WP3948608 Whirlpool Bracket
4End Cap (L.H.)
5Switch, Water Temperature
6WP90767 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8WP388326 Whirlpool Screw
9Panel, Console
10Cap, End (R.H.)
12Knob, Timer
14WP3351614 Whirlpool Screw
15WP356418 Whirlpool Screw
17Knob, Control
18Dial, Timer
19Switch, Temperature
