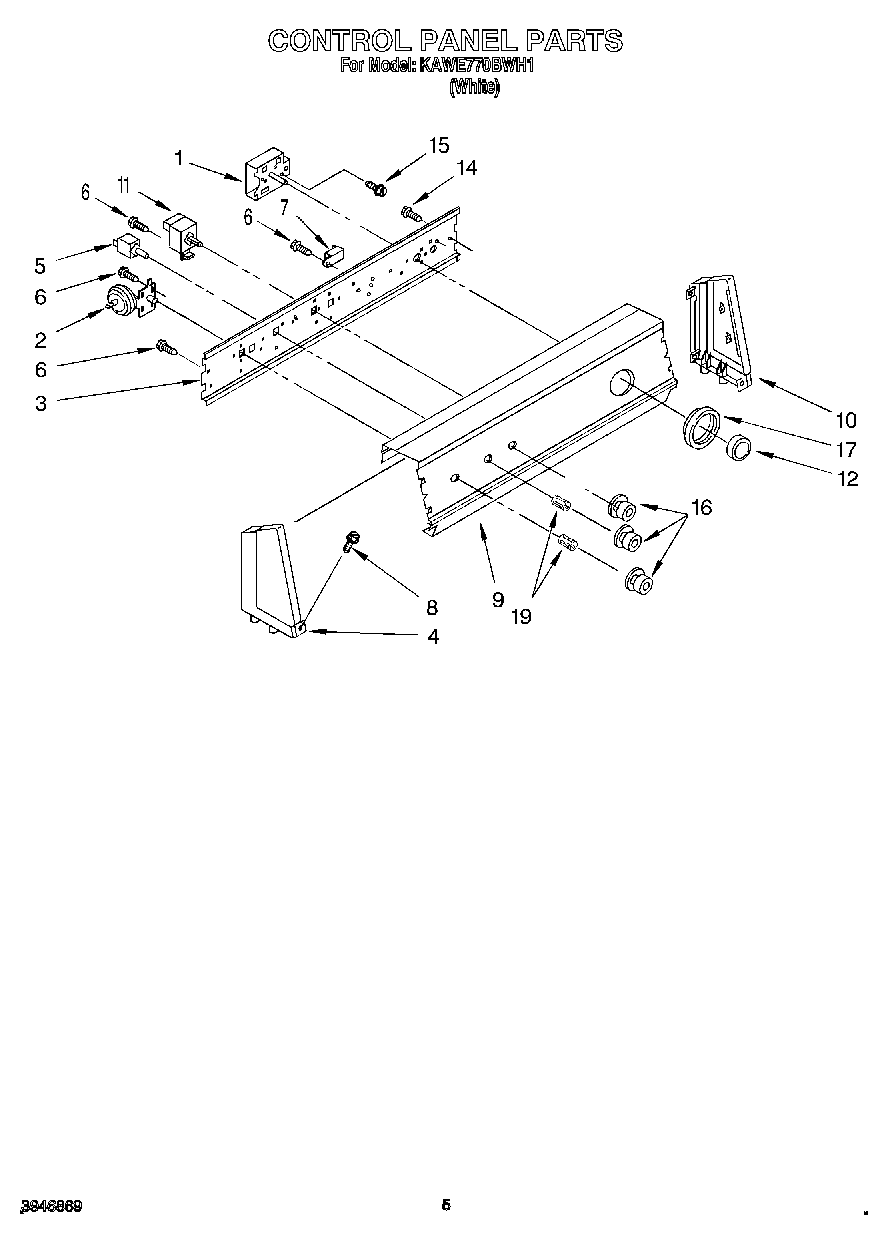

KAWE770BWH1 03 – CONTROL PANEL

Products

PositionProduct
1WP3946476 Whirlpool Timer
2Switch, Water Level
3WP3948608 Whirlpool Bracket
4Cap, End (L.H.)
5Switch, Water Temperature
6WP90767 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8WPL 64211
9Console, Panel (For White Model)
10Cap, End (R.H.)
11Switch, Rotary
12Knob, Timer
14WP3351614 Whirlpool Screw
15WP356418 Whirlpool Screw
16Knob (Control)
17Dial, Timer (For White Model)
19WP688805 Whirlpool Spring Clip
