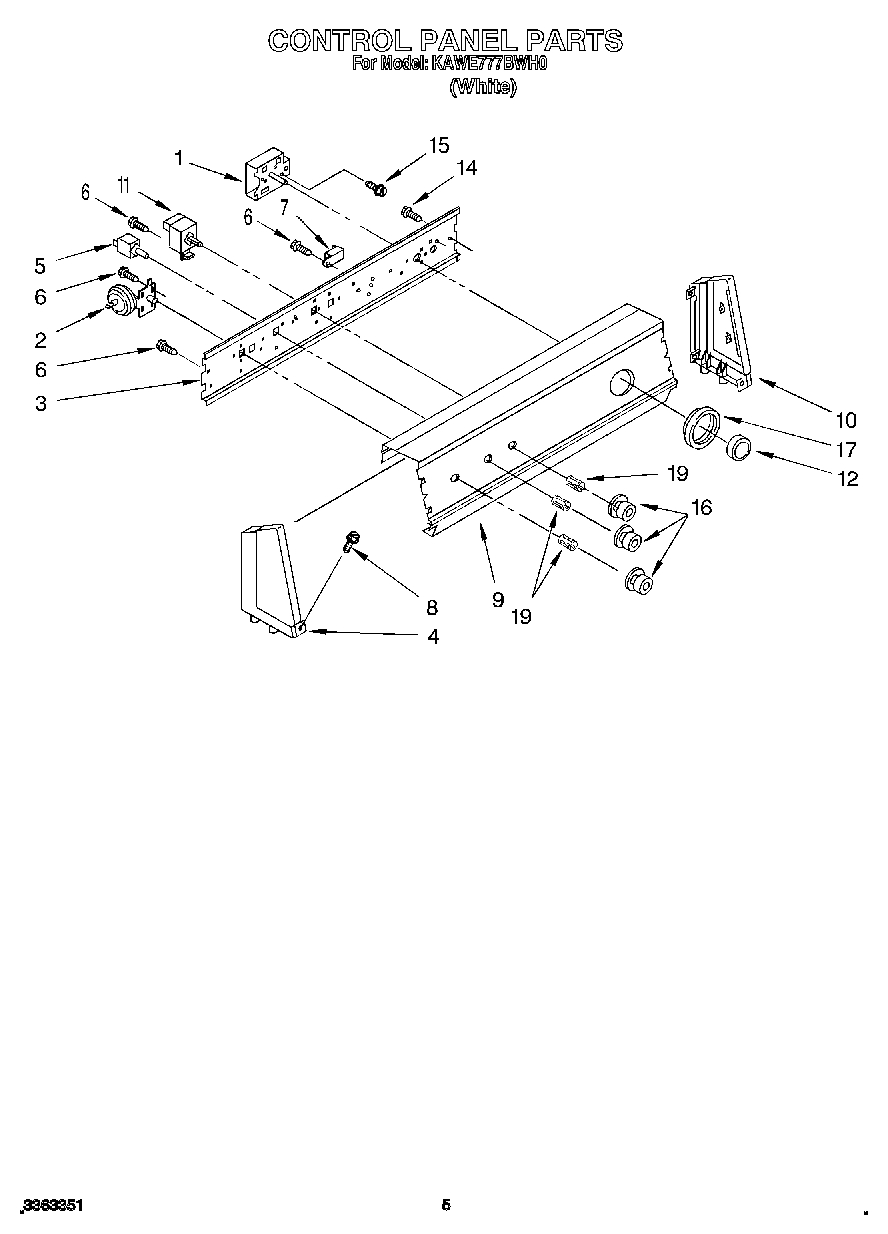

KAWE777BWH0 03 – CONTROL PANEL

Products

PositionProduct
1WP3946476 Whirlpool Timer
2Switch, Water Level
3WP3948608 Whirlpool Bracket
4Cap, End (L.H.)
5Switch, Water Temperature
6WP90767 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8WP388326 Whirlpool Screw
9Console, Panel
10Cap, End (R.H.)
11Switch, Rotary
12Knob, Timer
14WP3351614 Whirlpool Screw
15WP356418 Whirlpool Screw
16Knob, Control
17Dial, Timer (For White & Almond Models)
19WP688805 Whirlpool Spring Clip
