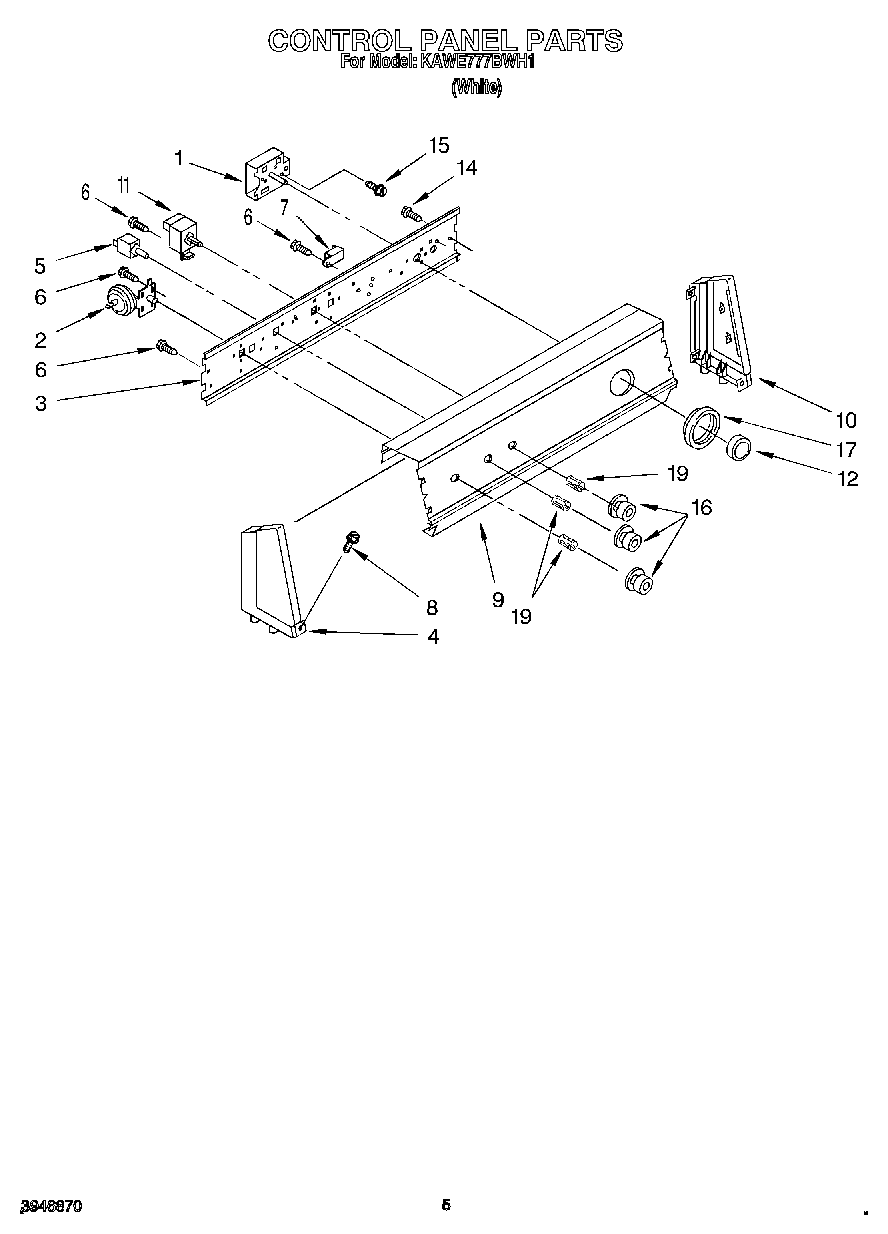

KAWE777BWH1 03 – CONTROL PANEL

Products

Position	Product
1	WP3946476 Whirlpool Timer
2	Switch, Water Level
3	WP3948608 Whirlpool Bracket
4	Cap, End (L.H.)
5	Switch, Water Temperature
6	WP90767 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	WP388326 Whirlpool Screw
9	Console, Panel
10	Cap, End (R.H.)
11	Switch, Rotary
12	Knob, Timer
14	WP3351614 Whirlpool Screw
15	WP356418 Whirlpool Screw
16	Knob, Control
17	Dial, Timer (For White Model)
19	WP688805 Whirlpool Spring Clip
