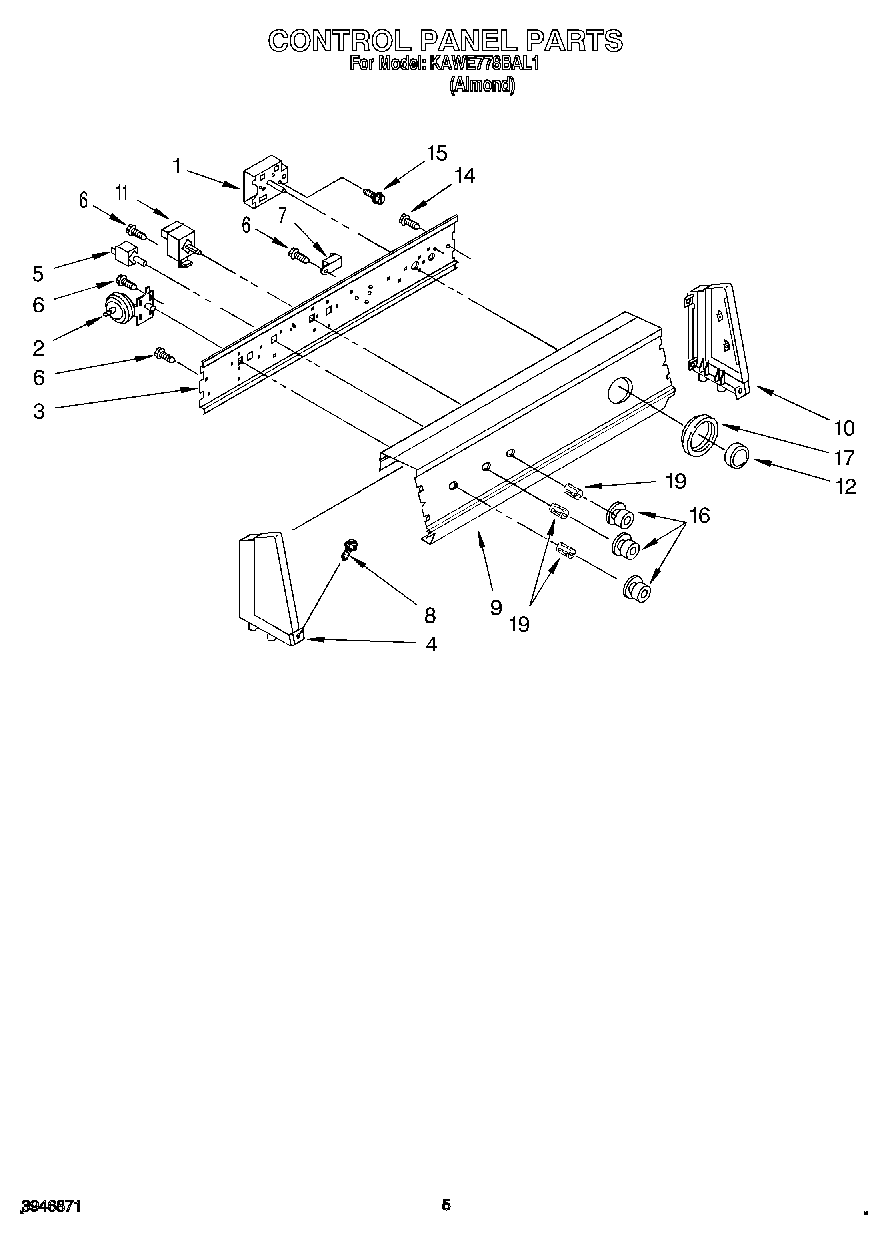

KAWE778BAL1 03 – CONTROL PANEL

Products

Position	Product
1	WP3946476 Whirlpool Timer
2	Switch, Water Level
3	WP3948608 Whirlpool Bracket
4	End Cap (L.H.)
5	Switch, Water Temperature
6	WP90767 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	WP388326 Whirlpool Screw
9	Console, Panel
10	Cap, End (R.H.)
11	Switch, Rotary
12	Knob, Timer
14	WP3351614 Whirlpool Screw
15	WP356418 Whirlpool Screw
16	Knob, Control
17	Dial, Timer
19	WP688805 Whirlpool Spring Clip
