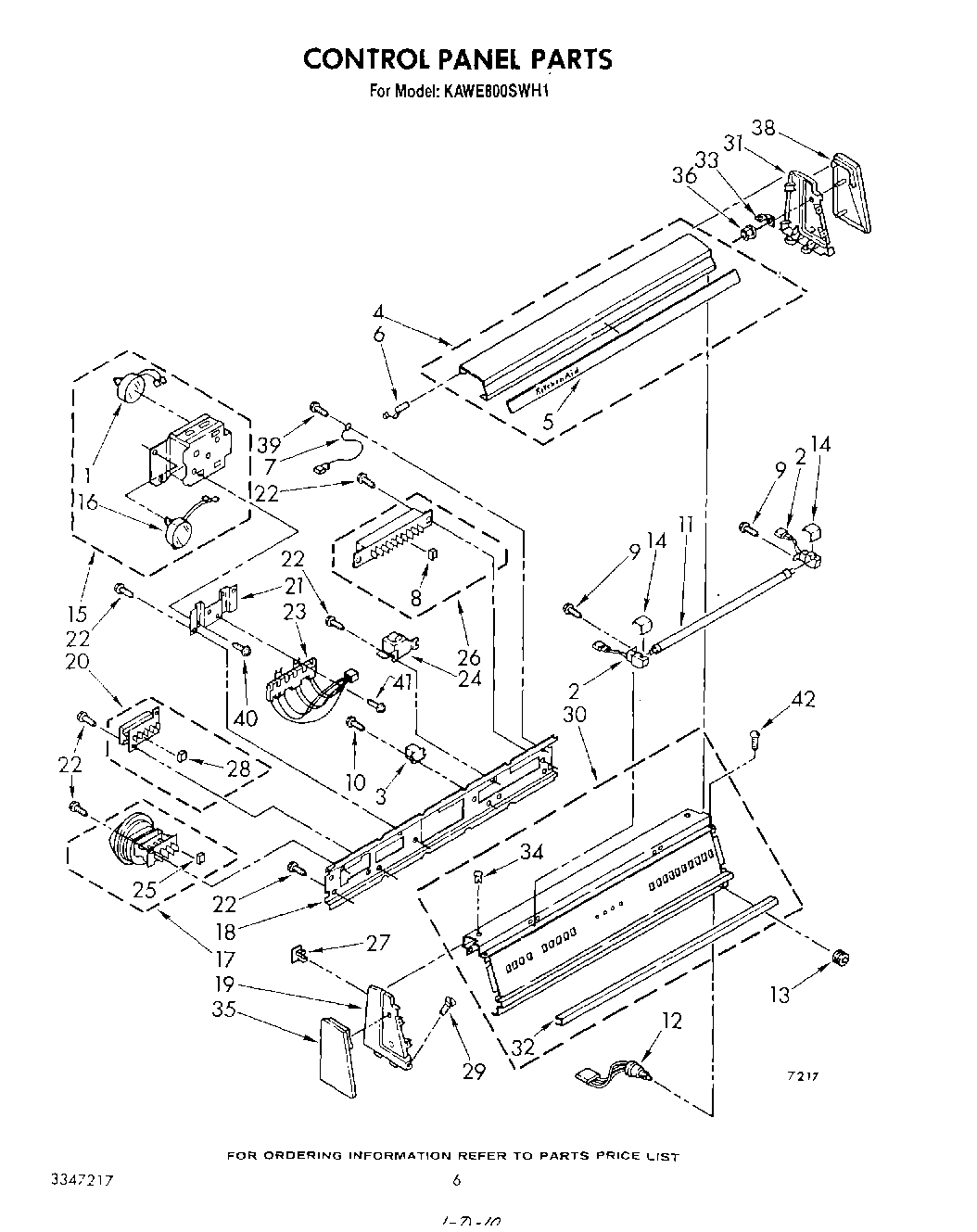

KAWE800SWH1 04 – CONTROL PANEL

KAWE800SWH1 04 – CONTROL PANEL

Written by

in

KAWE800SWH1 04 – CONTROL PANEL

Products

PositionProduct
1Motor, Rapid Advance Timer
2Socket, Lamp ((L.H.))
2Socket, Lamp ((R.H.))
3WPL 389265
4Pad, Console
5Insert, Console Pad
6Hinge, Lamp Cover
7Wire, Ground
8Pushbutton, Push To Start Switch (10)
9WP965173 Whirlpool Dishwasher Screw
10Screw
11Lamp, Fluorescent
12Switch, Fluorescent
13Nut, Knurled
14Cover, Socket
15Timer, Control 60 Hz,
16Use W/C.C.A. Timer
17Switch, Water Level
18Bracket, Control
19End Cap (L.H.)
20Switch, Water Temperature
21Bracket, Timer
22WP90767 Whirlpool Screw
23Light, Indicator
24Ballast
25Pushbutton, Water Level
26Switch, Push To Start
27WP689559 Whirlpool Nut
28Pushbutton, Water Temperature (5)
29WPL 64211
30Panel, Console
31Cap, End (R.H.)
32Trim, Console
32Bracket, End Cap
34Plug, Latch (3)
35Trim, End Cap (L.H.)
36Nut, No.10 Thread
38Trim, End Cap (R.H.)
39WP3351614 Whirlpool Screw
40WP356418 Whirlpool Screw
42WP489128 Whirlpool Refrigerator Screw
