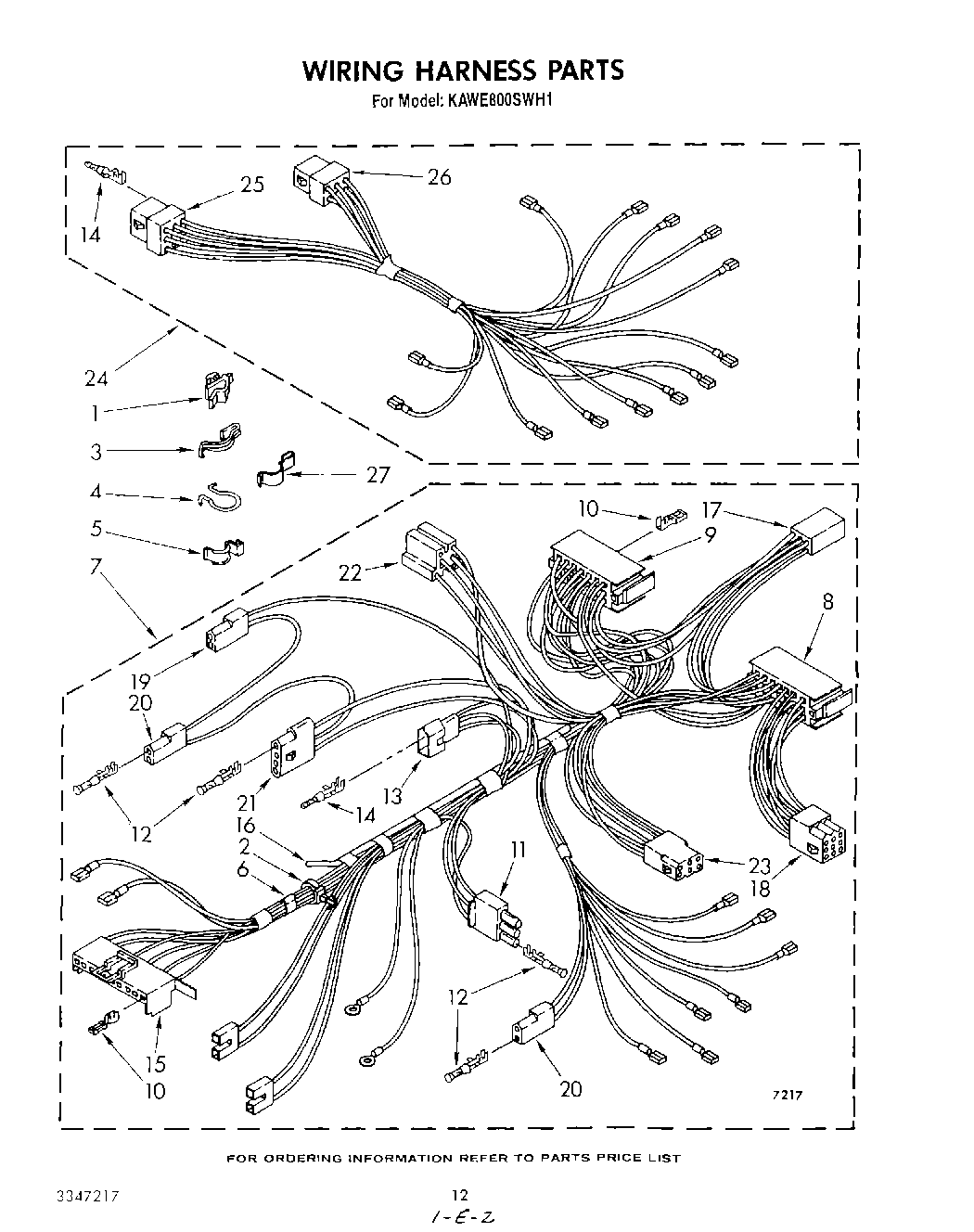

KAWE800SWH1 09 – WIRING HARNESS

Products

Position	Product
1	Clip, Harness
2	Clip, Harness
4	Clip, Harness (3)
5	WP90016 Whirlpool Clip
6	Protector, Harness
7	Wiring Harness & Pressure Switch
8	Timer, Block Disconnect (White)
9	W10876590 Whirlpool Connector
10	Terminal, Female
11	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
12	WP94614 Whirlpool Terminal
13	353424 Whirlpool Connector
14	WP596797 Whirlpool Terminal
15	WP62505 Whirlpool Connector
16	WP353244 Whirlpool Hose
17	Receptacle, (6-Way) (Use Term. 94613)
18	Plug, Terminal 9-Way
19	Receptacle, 2-Way
20	Receptacle Terminal (2-Way) Red
21	WPL 717315
22	Connector, Housing Relay
23	Plug, Terminal (6 Way)
24	Harness, Console
25	Cap, Terminal (Console Harness)
26	Connector
27	8528351 Whirlpool Clip
