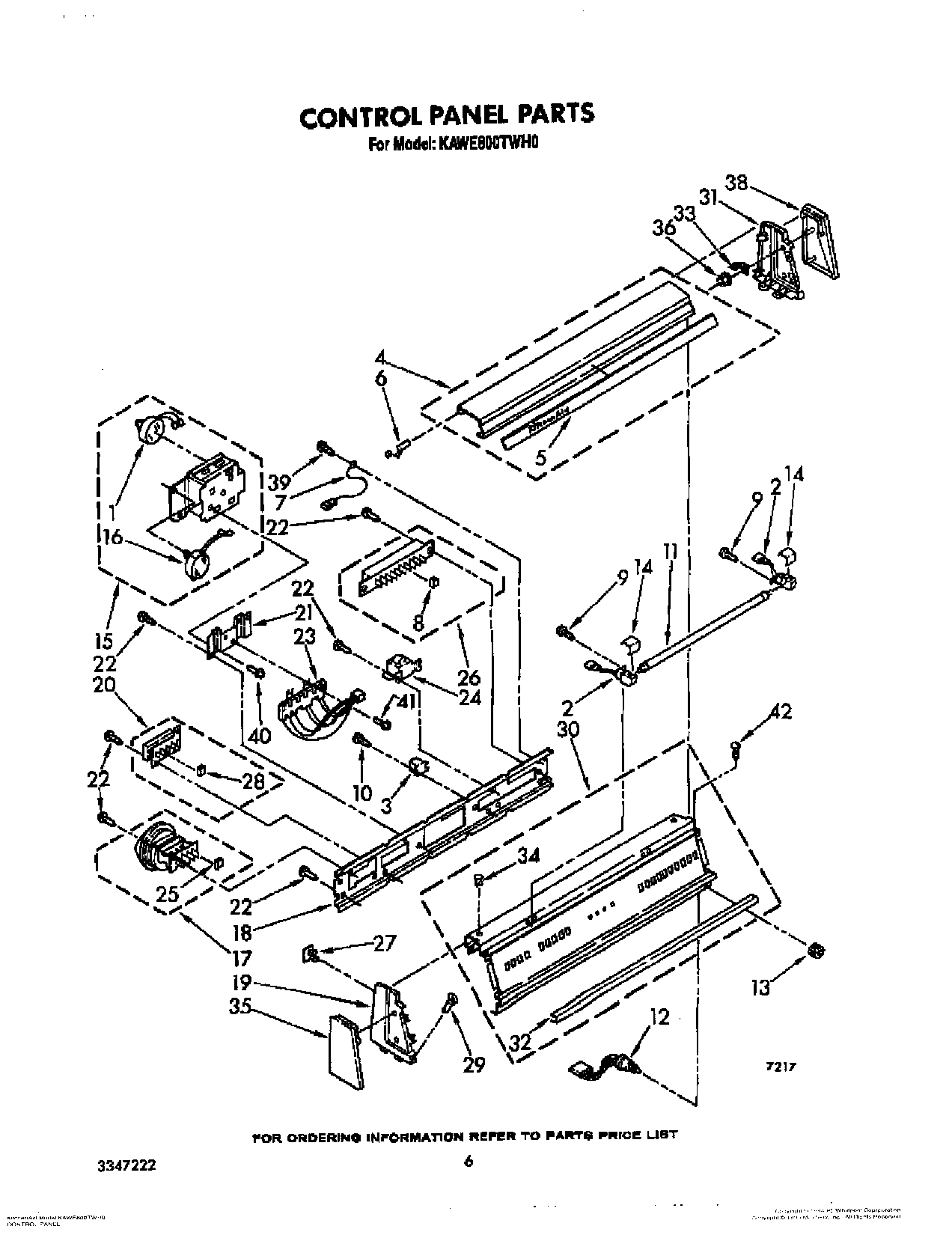

KAWE800TWH0 04 – CONTROL PANEL

Products

Position	Product
1	Motor, Rapid Advance Timer
2	Socket, Lamp ((L.H.))
2	Socket, Lamp ((R.H.))
3	WPL 389265
4	Pad, Console
5	Insert, Console Pad
6	Hinge, Lamp Cover
7	Wire, Ground
8	Pushbutton, Push To Start Switch (10)
9	WP965173 Whirlpool Dishwasher Screw
10	Screw
11	Lamp, Fluorescent
12	Switch, Fluorescent
13	Nut, Knurled
14	Cover, Socket
15	Timer, Control 60 Hz,
16	Use W/C.C.A. Timer
17	Switch, Water Level
18	Bracket, Control
19	End Cap (L.H.)
20	Switch, Water Temperature
21	Bracket, Timer
22	WP90767 Whirlpool Screw
23	Light, Indicator
24	Ballast
25	Pushbutton, Water Level
26	Switch, Push To Start
27	WP689559 Whirlpool Nut
28	Pushbutton, Water Temperature (5)
29	WPL 64211
30	Panel, Console
31	Cap, End (R.H.)
32	Trim, Console
32	Bracket, End Cap
34	Plug, Latch (3)
35	Trim, End Cap (L.H.)
36	Nut, No.10 Thread
38	Trim, End Cap (R.H.)
39	WP3351614 Whirlpool Screw
40	WP356418 Whirlpool Screw
42	WP489128 Whirlpool Refrigerator Screw
