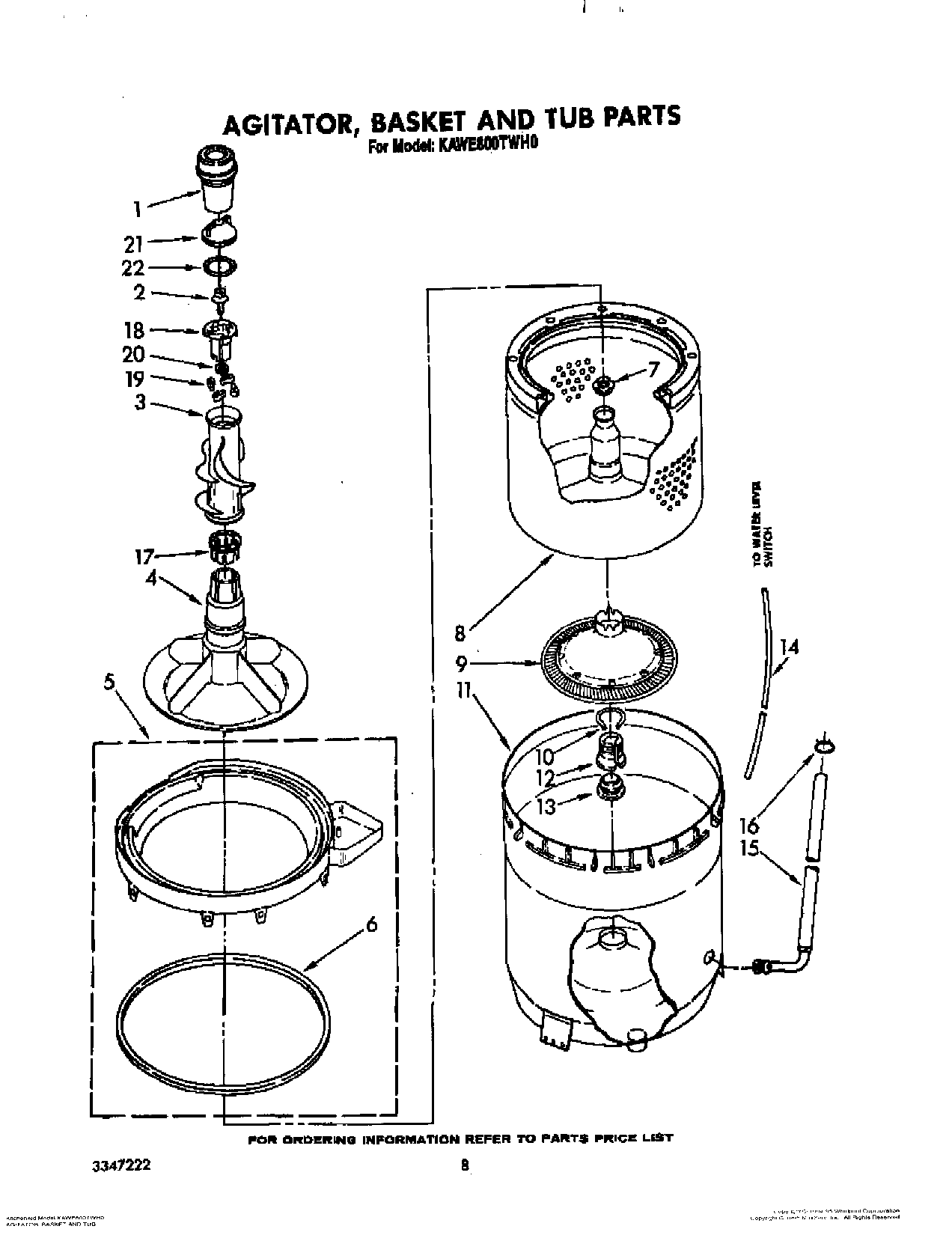

KAWE800TWH0 05 – AGITATOR, BASKET AND TUB

KAWE800TWH0 05 – AGITATOR, BASKET AND TUB

Written by

in

KAWE800TWH0 05 – AGITATOR, BASKET AND TUB

Products

PositionProduct
163580 Whirlpool Washer Fabric Softener Dispenser
2WP358237 Whirlpool Agitator Bolt
3WP3348752 Whirlpool Agitator Mover
4AGITATOR
5W10880720 Whirlpool Tub Ring
6WP3976308 Whirlpool Tub Seal
7WP21366 Whirlpool Spanner Nut
8W10389328 Whirlpool Basket
9285868 Whirlpool Washer Filter Plug Kit
10Lock, Filter
113361596 Whirlpool Outer Tub Primary
12WP389140 Whirlpool Drive Block or Bell
13W10814296 Whirlpool Washer Center Post Seal Gasket
14WP353244 Whirlpool Hose
15Hose, Bleach
16WP596669 Whirlpool Hose Clamp
17285587 Whirlpool Thrust Washer
18285811 Whirlpool Washer Agitator Repair Kit
1980040 Whirlpool Washer Agitator Dog Kit
20Seal, Agitator
21WPW10074580 Whirlpool Agitator Inner Cap and Seal
22WPW10072840 Whirlpool Seal Assembly
