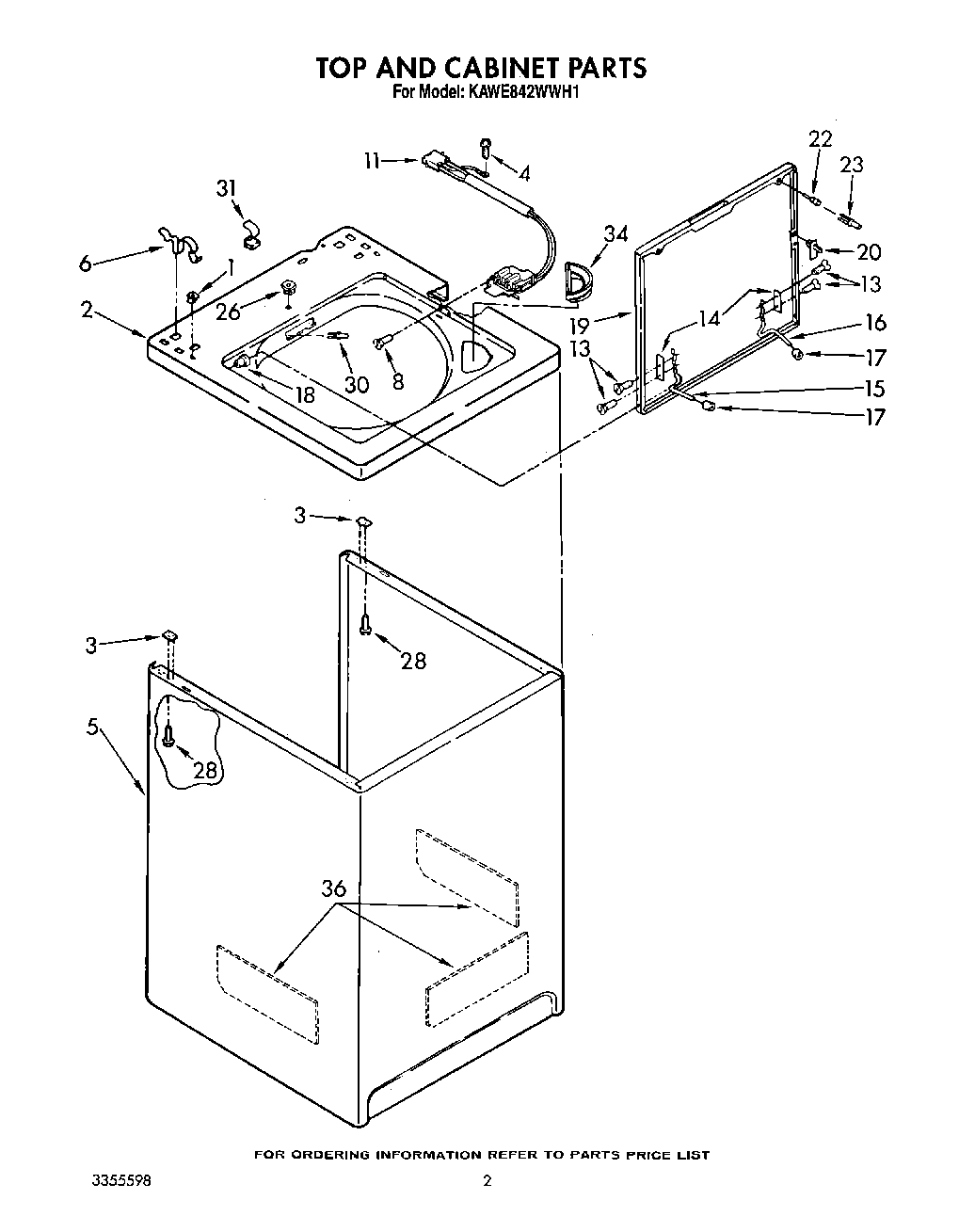

KAWE842WWH1 02 – TOP AND CABINET, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3353754
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	Shipping Kit
	WPL 72112
	WPL 89121
	WPL LIT3347356
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WP285195 Whirlpool Sealer Assembly
	WPL LIT3355598
	WPL LIT3353731
	WPL LIT3353742
	Golden Harvest (Uncut)
	Golden Harvest
	72017 Whirlpool Appliance Touch-Up Paint White
	Leveler (Thinner)
	350938 Whirlpool Spray Gun
	799344 Whirlpool Refrigerator Paint
	350956 Whirlpool Spray Assembly
	Almond (Uncut)
	350930 Whirlpool White Spray Paint
	285320 Whirlpool Washer Siphon Break Kit
	Drain Protector (Not Included)
	350572 Whirlpool Oil Transmission 15 Oz
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72113 Whirlpool Touch-Up Paint
	WP72107 Whirlpool Touchup
1	Nut, Push-In (2)
2	Top (Almond)
2	Top (White)
3	WP62750 Whirlpool Spacer
4	SCREW
5	Cabinet (Almond)
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
8	Screw & Washer, Lid Switch (2)
11	285671 Whirlpool Lid Switch Assembly
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (Almond)
19	Lid (White)
20	WP358684 Whirlpool Strike Assembly
22	BUMPER
23	WP356907 Whirlpool Rivet
26	Stop, Push-In Top
30	Rivet, Serial Nameplate
31	WP90016 Whirlpool Clip
34	WP3362952 Whirlpool Bezel
36	Cabinet-Sound Damper
