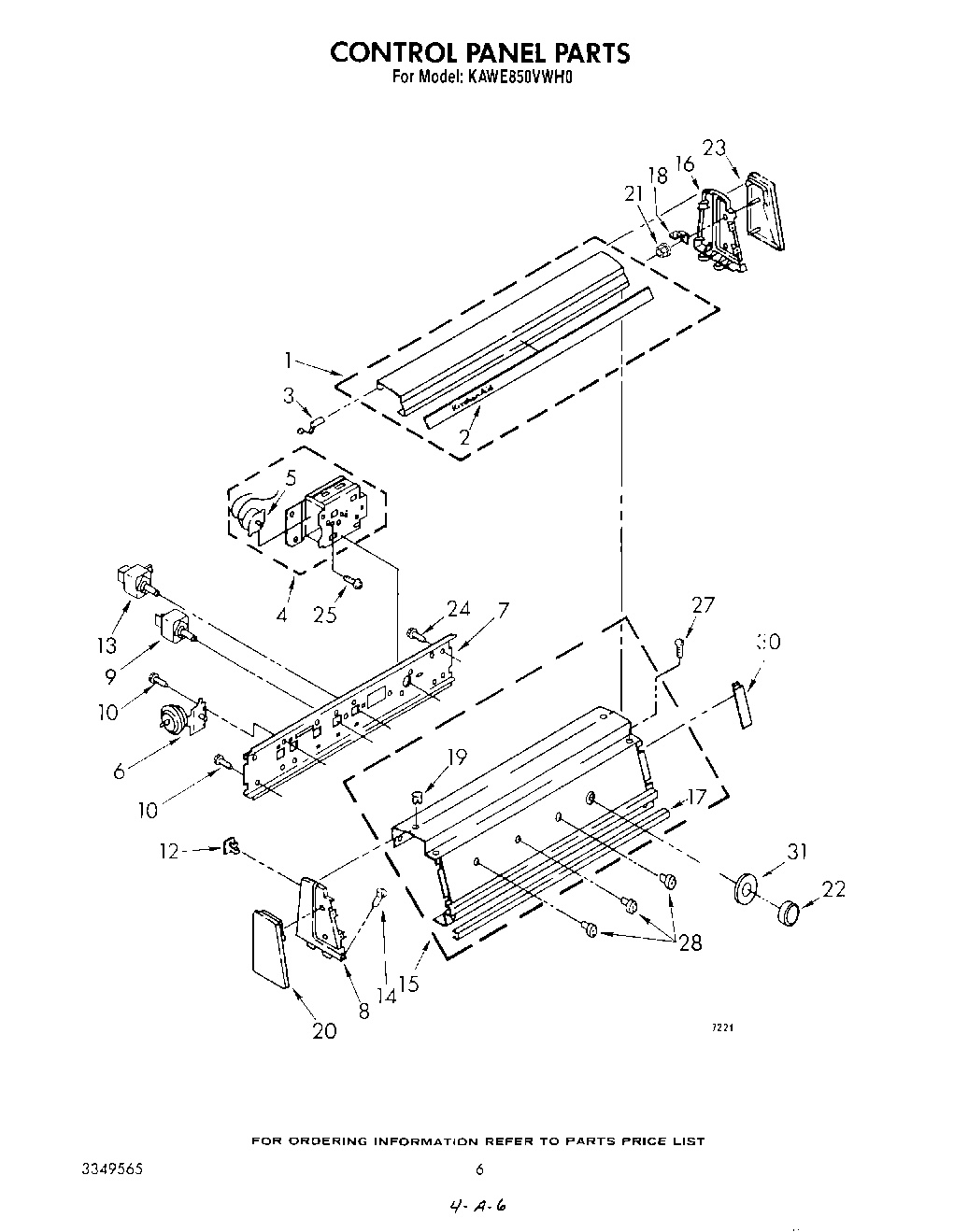

KAWE850VAL0 04 – CONTROL PANEL

Products

PositionProduct
1Cover & Insert
2Insert
3Hinge, Lamp Cover
4Timer, Control 60 Hz,
5Motor, Timer
6Switch, Water Level
7Bracket, Control
8End Cap (L.H.)
9Switch, Water Temperature
9Switch, Water Temperature
9(Alt.)
10WP90767 Whirlpool Screw
12WP689559 Whirlpool Nut
13WP3405156 Whirlpool Switch
14WPL 64211
15Console, Panel & Trim
16Cap, End (R.H.)
17Trim, Console
18Bracket, End Cap (2)
19Plug, Latch (3)
20Trim, End Cap (L.H.)
21Nut, No.10 Thread
22Knob, Timer
23Trim, End Cap (R.H.)
24WP3351614 Whirlpool Screw
25WP356418 Whirlpool Screw
27WPL 310629
28Knob, Water Temperature
30Spacer, Console (2)
31Dial, Timer
