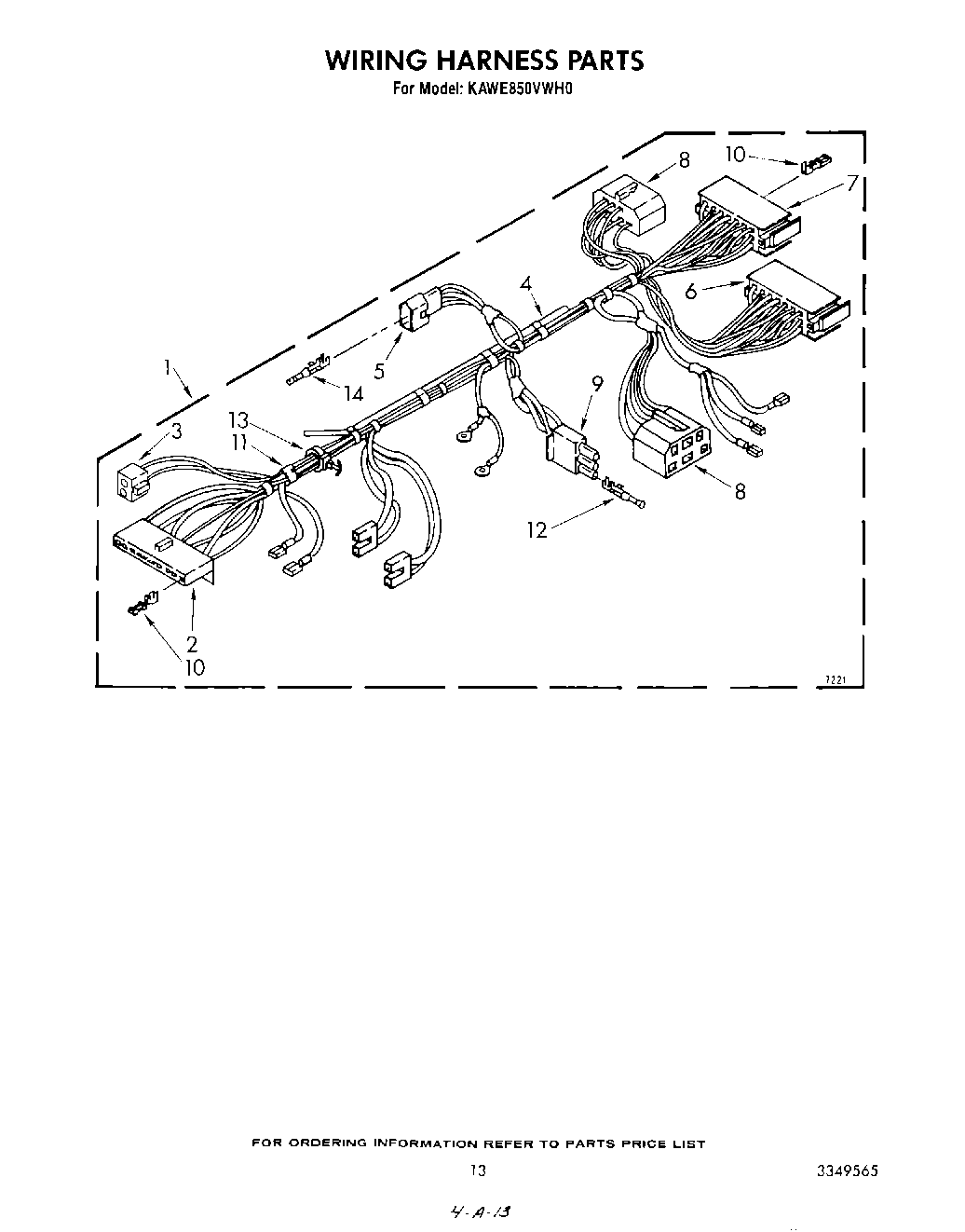

KAWE850VAL0 09 – WIRING HARNESS

Products

PositionProduct
1Wiring Harness & Pressure Switch
2WP62505 Whirlpool Connector
3Block, Disconnect (Motor 3 Speed) (Use Term. 94613 Or 94614)
4WP353244 Whirlpool Hose
5353424 Whirlpool Connector
6W10876590 Whirlpool Connector
7Timer, Block Disconnect (White)
8Block, Disconnect
9WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
10Terminal, Female
11Protector, Harness
12WP94614 Whirlpool Terminal
13Clip, Harness
14WP596797 Whirlpool Terminal
