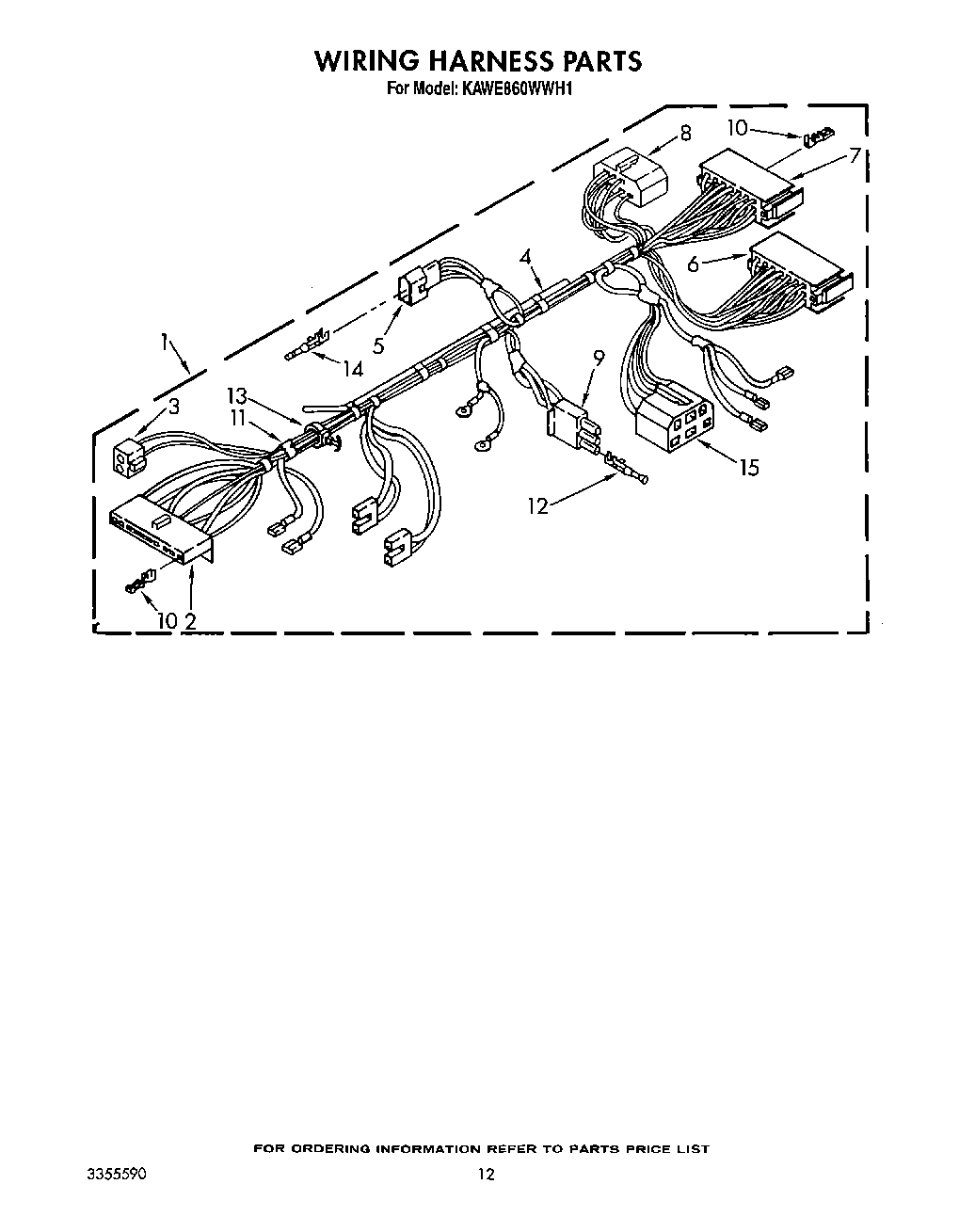

KAWE860WAL1 09 – WIRING HARNESS

Products

Position	Product
1	Wiring Harness & Pressure Switch Hose
2	WP62505 Whirlpool Connector
3	Block, Disconnect (Motor 3 Speed) (Use Term. 94613 Or 94614)
4	WP353244 Whirlpool Hose
5	353424 Whirlpool Connector
6	W10876590 Whirlpool Connector
7	Timer, Block Disconnect (White)
9	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
10	Terminal, Female
11	Protector, Harness
12	WP94614 Whirlpool Terminal
13	Clip, Harness
14	WP596797 Whirlpool Terminal
15	Block, Disconnect
