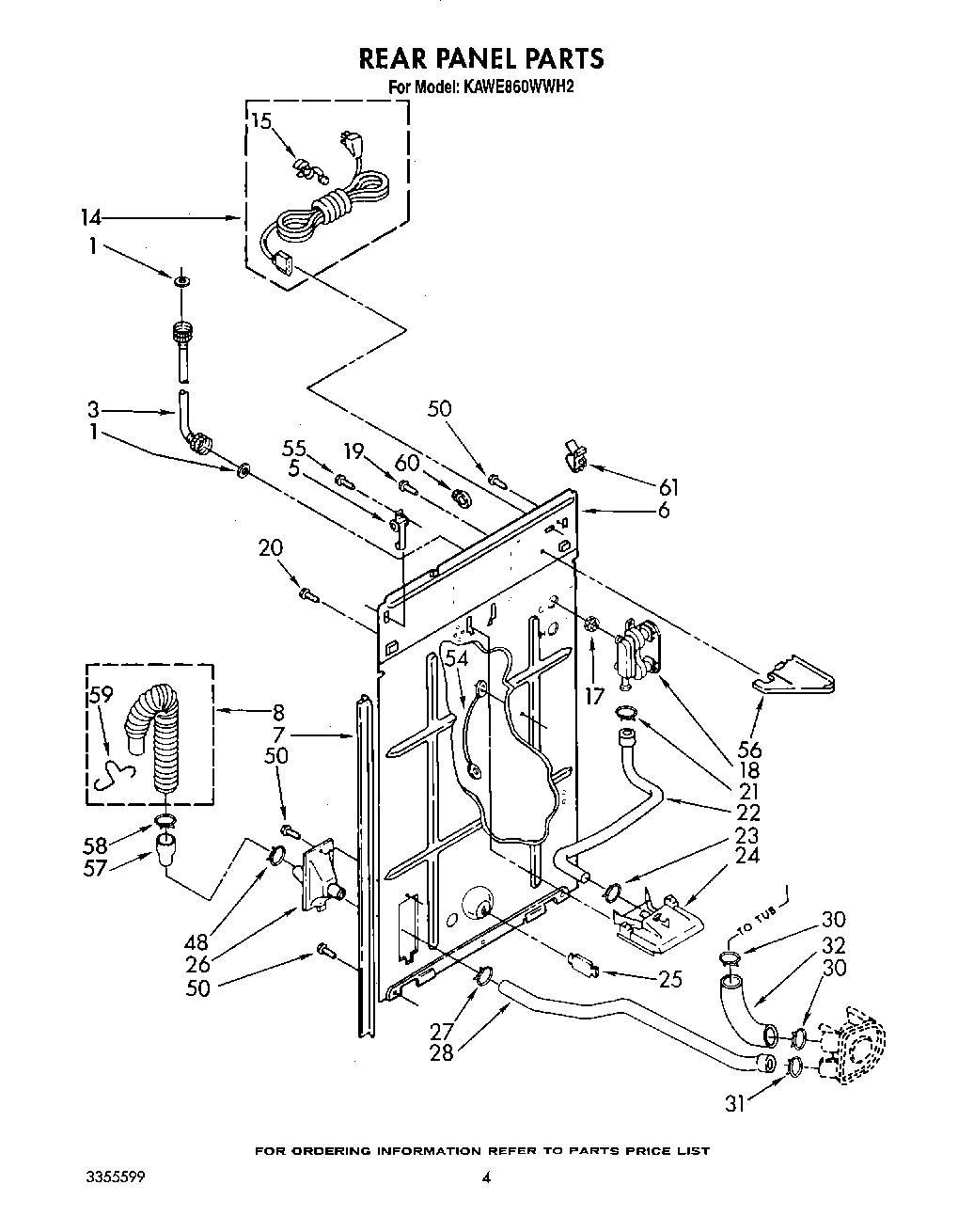

KAWE860WWH2 03 – REAR PANEL

KAWE860WWH2 03 – REAR PANEL

Written by

in

KAWE860WWH2 03 – REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
3WP89503 Whirlpool Washer Fill Hose
5Hinge, Console (2)
6Panel, Rear
7WP62747 Whirlpool Pad
8285664 Whirlpool Drain Hose
14Cord, Power
15Strain Relief, Power Cord
17WP96160 Whirlpool Washer Inlet Valve Screen
18285805 Whirlpool Washer Water Inlet Valve
19WP3351614 Whirlpool Screw
20SCREW
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
28Hose, Pump To Drain Connector
30WP371502 Whirlpool Clamp
32285871 Whirlpool Hose and Clamp
48WP356138 Whirlpool Hose Clamp
50WP3390631 Whirlpool Screw
54WPL 364089
55WP308685 Whirlpool Microwave Screw
56WPL 3348424
57WP384496 Whirlpool Hose Coupling
58WP616099 Whirlpool Clamp
59WPL 3350222
608559320 Whirlpool Clip
61Clip, Harness
