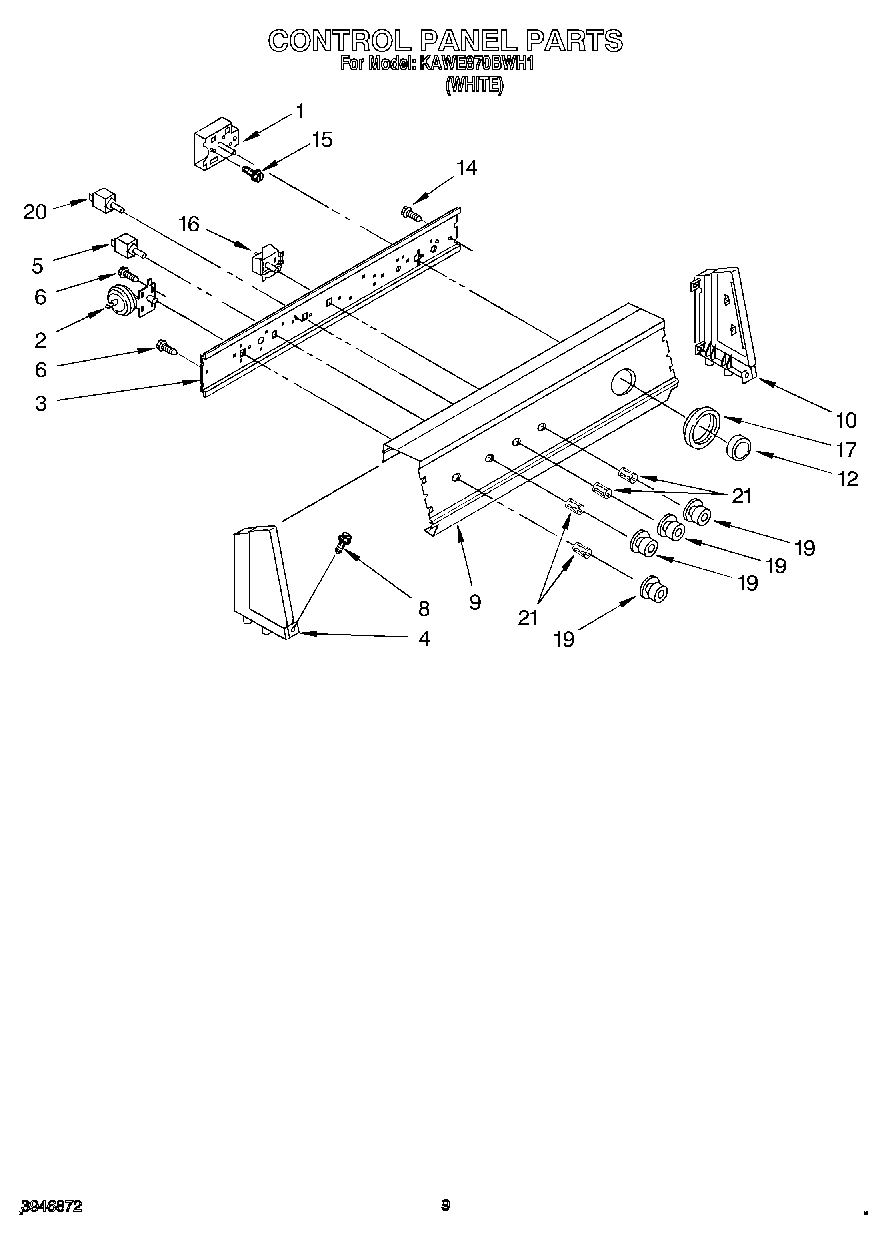

KAWE870BWH1 06 – CONTROL PANEL

Products

PositionProduct
1WP3946476 Whirlpool Timer
2Switch, Water Level
3WP3948608 Whirlpool Bracket
4Cap, End (L.H.)
5Switch, Water Temperature (Alt.)
5(Alt.)
5Switch, Water Temperature
6WP90767 Whirlpool Screw
8WPL 64211
9Console, Panel (For White & Almond Models)
10Cap, End (R.H.)
12Knob, Timer
14WP3351614 Whirlpool Screw
15WP356418 Whirlpool Screw
16Buzzer, Adjustable
17Dial, Timer (For White Model)
19Knob (Control)
20Switch, Rotary
21WP688805 Whirlpool Spring Clip
