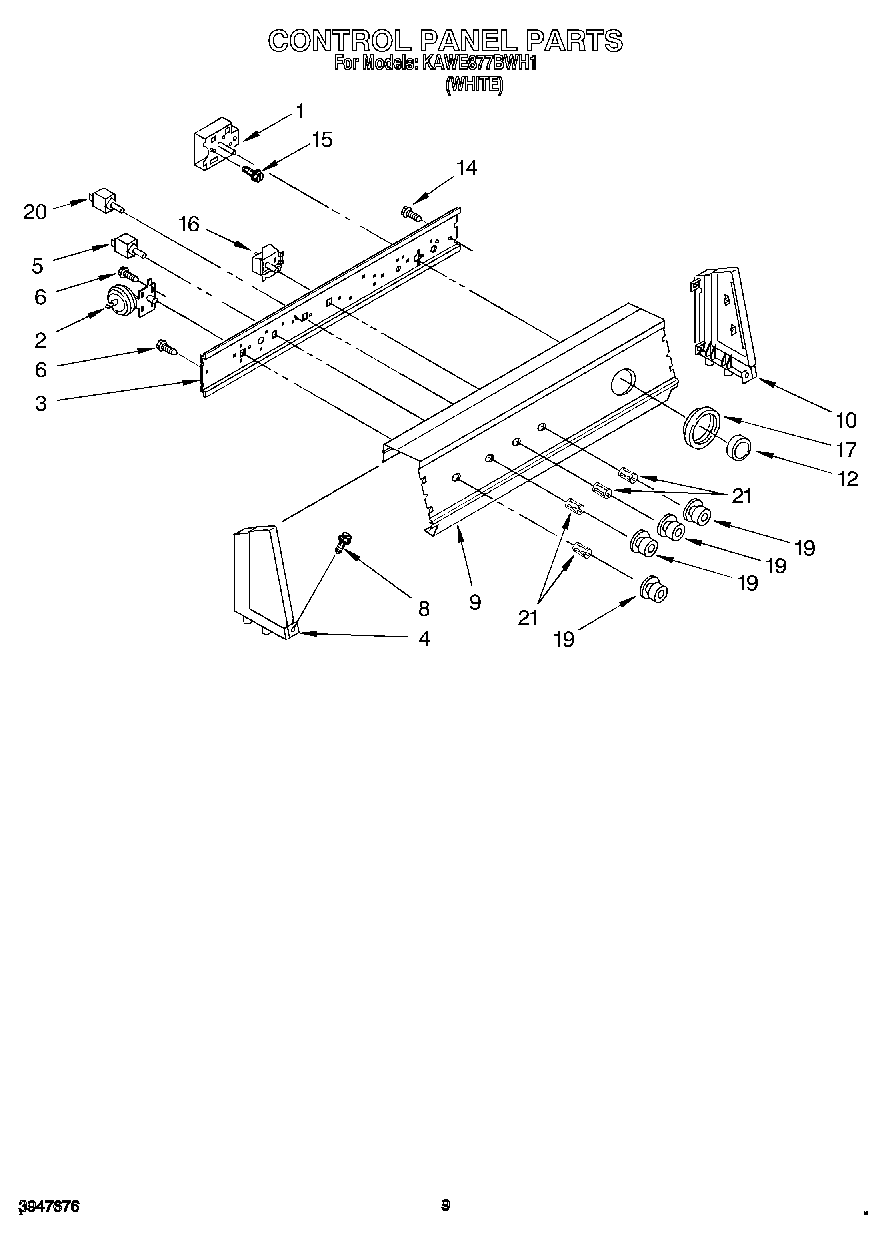

KAWE877BWH1 06 – CONTROL PANEL

KAWE877BWH1 06 – CONTROL PANEL

Written by

in

KAWE877BWH1 06 – CONTROL PANEL

Products

PositionProduct
1WP3946476 Whirlpool Timer
2Switch, Water Level
3WP3948608 Whirlpool Bracket
4Cap, End (L.H.)
5Switch, Water Temperature (Alt.)
5(Alt.)
5Switch, Water Temperature
6WP90767 Whirlpool Screw
8WP388326 Whirlpool Screw
9Console, Panel (For White Model)
10Cap, End (R.H.)
12Knob, Timer
14WP3351614 Whirlpool Screw
15WP356418 Whirlpool Screw
16Buzzer, Adjustable
17Dial, Timer (For White Model)
19Knob, Control
20Switch, Rotary
21WP688805 Whirlpool Spring Clip
