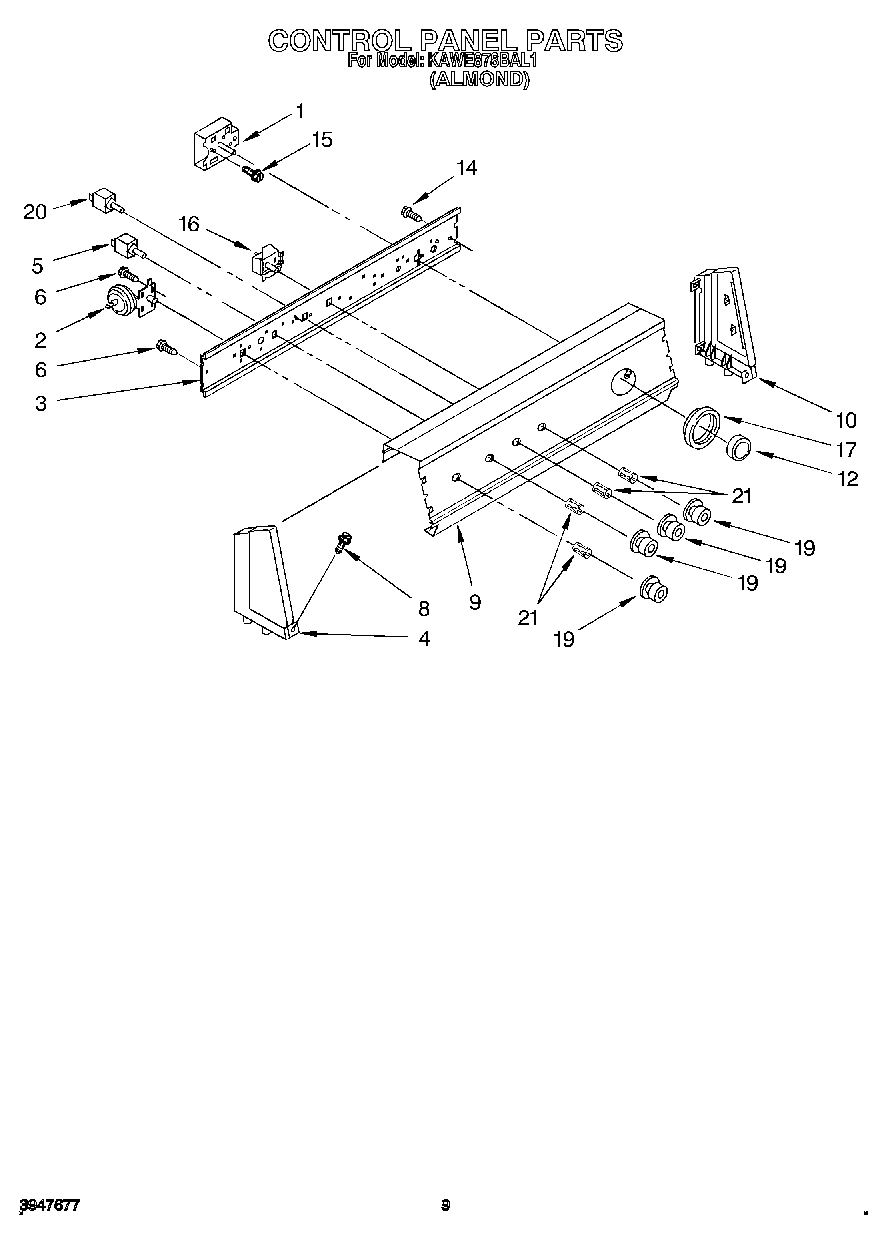

KAWE878BAL1 06 – CONTROL PANEL

Products

PositionProduct
1WP3946476 Whirlpool Timer
2Switch, Water Level
3WP3948608 Whirlpool Bracket
4End Cap (L.H.)
5(Alt.)
5Switch, Water Temperature (Alt.)
5Switch, Water Temperature
6WP90767 Whirlpool Screw
8WP388326 Whirlpool Screw
9Console, Panel (For Almond Model)
10Cap, End (R.H.)
12Knob, Timer
14WP3351614 Whirlpool Screw
15WP356418 Whirlpool Screw
16Buzzer, Adjustable
17Dial, Timer
19Knob, Control
20Switch, Rotary
21WP688805 Whirlpool Spring Clip
